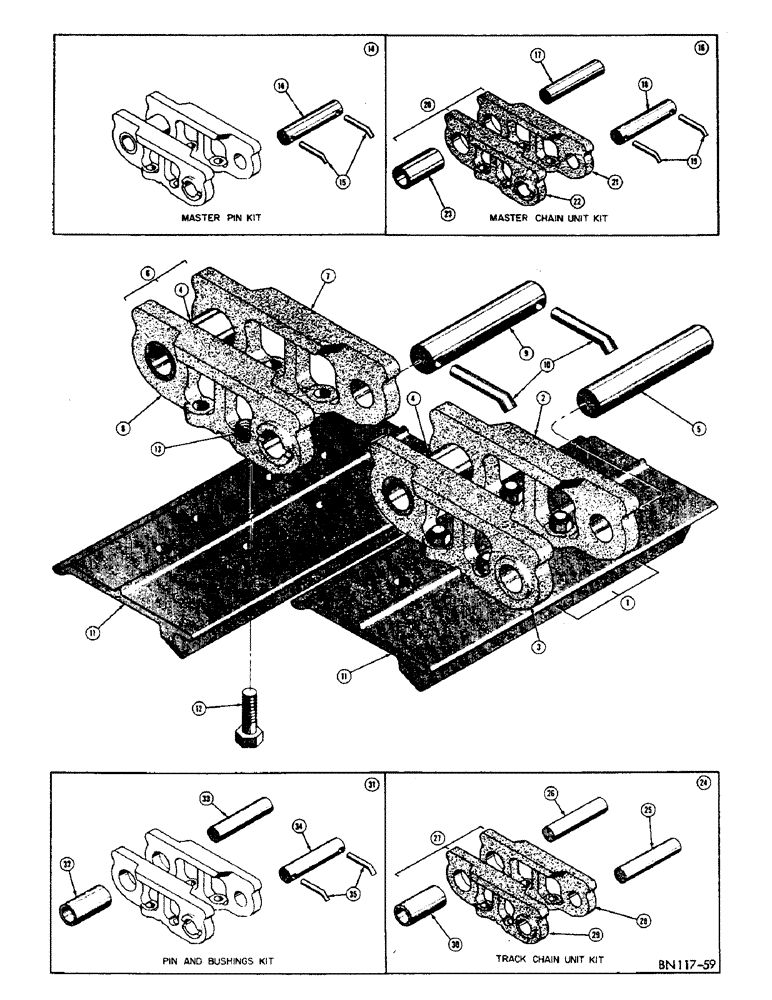

Запчасти Case 310D (068) - TRACK CHAIN (04) - UNDERCARRIAGE

5481

CHAIN - 15 unit, complete

2шт.

5482

CHAIN - 16 unit, complete

2шт.

1

34571

KIT

UNIT ASS'Y - track (See D21014)

15шт.

2

30638

X

LINK - track, R.H. (See D21014)

15шт.

3

R41049

DRAG LINK

LINK - track, L.H. (See D21014)

15шт.

4

32830

BUSHING

- link (See D21013, 14, 15)

15шт.

5

32831

PIN

- track, standard (See D21014; also items #17 and #33)

15шт.

6

34589

X

UNIT ASS'Y. - master (See D21013)

1шт.

7

R41050

LINK

- master, R.H. (See D21013)

1шт.

8

33286

LINK

- master, L.H. (See D21013)

1шт.

4

NLS

NO LONGER SERVICED

- link (See D21013, 14, 15)

1шт.

9

D21012

PIN

- master (See item #14)

1шт.

10

CASCASCASCASCAS32995

PIN - lock, master pin

2шт.

11

32849

PLATE - grouser (Standard #11) (See Figure 070 for other track plates)

62шт.

12

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS - special (7/16 - 20NF x 1-1/2)

248шт.

13

25-277

NUT - hex., special (7/16 - 20NF)

248шт.

14

D21012

PIN

KIT - master pin

4шт.

15

CASCASCASCASCAS32995

PIN - lock, master pin , kit

2шт.

16

D21013

KIT

- track master unit, chain

4шт.

17

32836

PIN

- track, service (.003" oversize) , master chain unit kit

1шт.

18

D21012

PIN

- master , chain unit kit

1шт.

19

CASCASCASCASCAS32995

PIN - lock, master pin , chain unit kit

2шт.

20

34589

X

UNIT ASS'Y. - master , chain kit

1шт.

21

R41050

LINK

- master, R.H. , chain unit kit

1шт.

22

33286

LINK

- master, L.H. , chain unit kit

1шт.

23

32830

BUSHING

- link , master chain unit kit

1шт.

24

D21014

KIT

- track chain unit

58шт.

25

32831

PIN

- track, standard , chain unit kit

1шт.

26

32836

PIN

- track, service (.003" oversize) , chain unit kit

1шт.

27

34571

KIT

UNIT ASS'Y. - track , chain unit kit

1шт.

28

30638

X

LINK - track, R.H. , chain unit kit

1шт.

29

R41049

DRAG LINK

LINK - track, L.H. , chain unit kit

1шт.

30

NLS

NO LONGER SERVICED

- link , track chain unit kit

1шт.

31

D21015

KIT - pins and bushings

1шт.

32

32830

BUSHING

- link , pins kit

64шт.

33

32836

PIN

- track, service (.003" oversize) , brushings kit

60шт.

34

D21012

PIN

- master, brushings kit

4шт.

35

CASCASCASCASCAS32995

PIN - lock, master pin, brushings kit

2шт.
