Запчасти Case 310D (064[1]) - TRACK ROLLER (BACKHOE MODELS) (04) - UNDERCARRIAGE

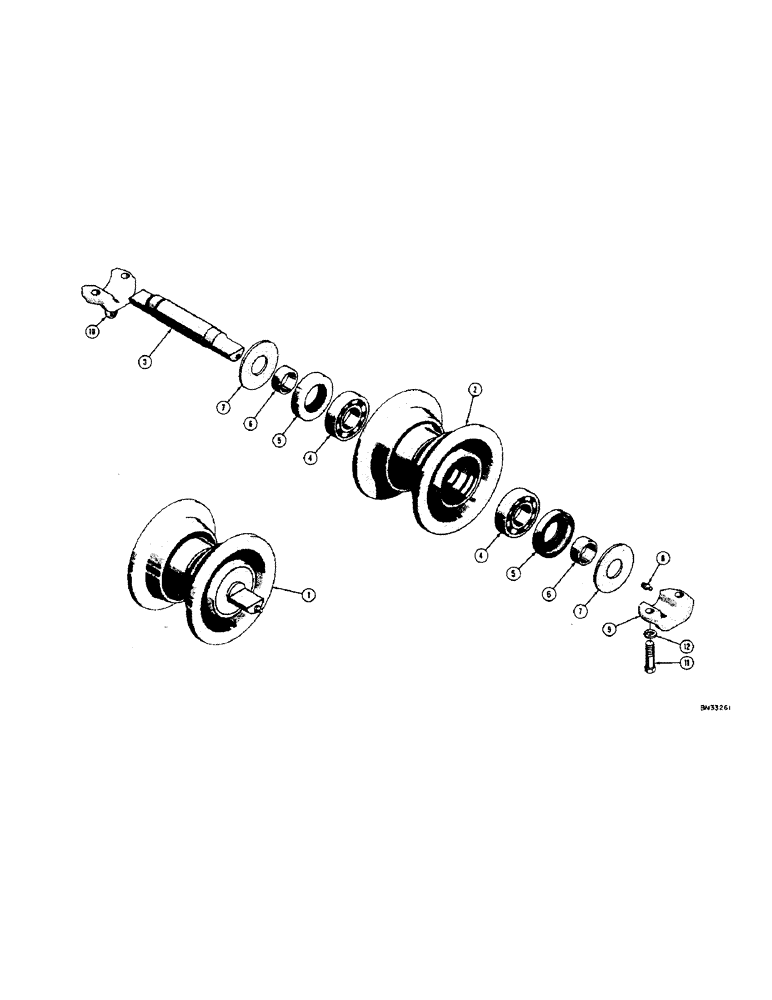

Схема запчастей Case 310D - (064[1]) - TRACK ROLLER (BACKHOE MODELS) (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

37431

OIL SEAL

ROLLER - track, rear (Backhoe models)

2шт.

2

31828

HUB - track roller

1шт.

R3308

KIT - track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

40201

BALL BEARING,1.375" ID x 2.8346" OD x 1.0625"

- ball

2шт.

5

40633

PLATE

SEAL - oil, track roller

2шт.

6

32051

SPACER

- track roller

2шт.

7

30704

BEARING COVER

- track roller

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

9

32055

BOX

- track roller, outer

2шт.

10

86837315

BALL JOINT HEAD

BOX - track roller, inner

2шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

Выбрано товаров: 13
