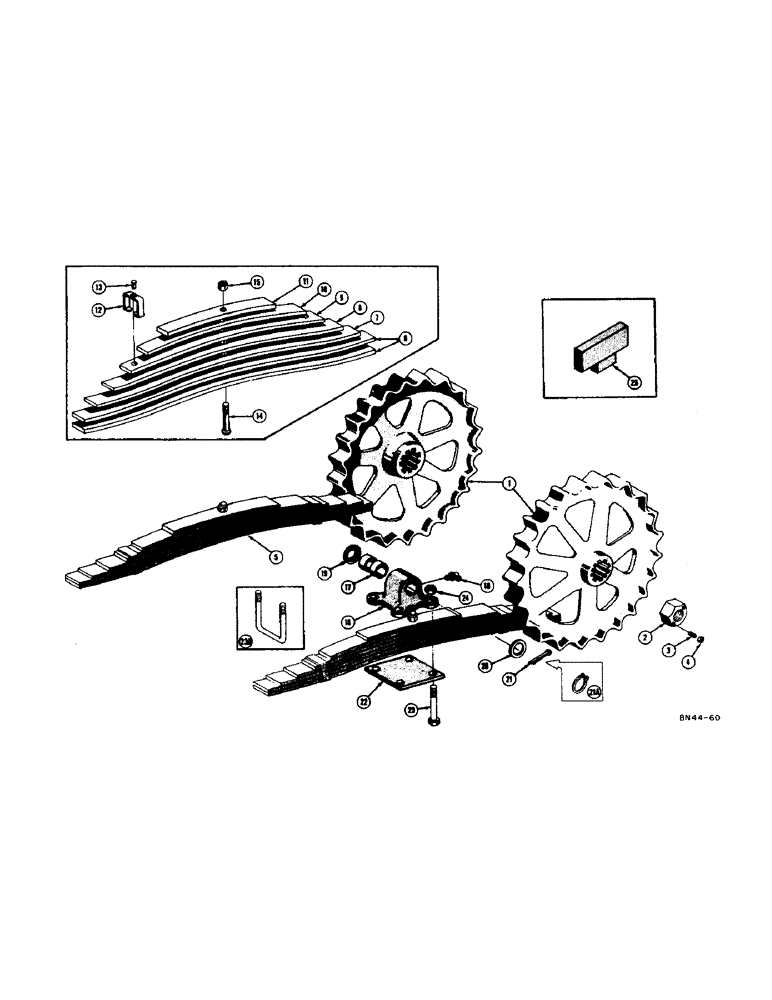

Запчасти Case 310D (058) - SPROCKET AND LEAF SPRING (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
NLS
NO LONGER SERVICED
SPROCKET - drive
2шт.
D20407
SPROCK - drive, snow (Optional)
2шт.
2
11851
LOCK NUT
NUT - lock, final drive sprocket
2шт.
3
83-616
SET SCREW,Hex Soc, 3/8"-16 x 1"
SCREW - set, Allen head (3/8"-16 NC x 1")
4шт.
4
25-106
NUT,3/8"-16, G5
- hex. (3/8 - 16 NC)
4шт.
5
D25558
SPRING - leaf, complete
2шт.
6
33117
LEAF - 5/16" x 1-3/4" x 29-1/4"
2шт.
8
33119
SPRING
LEAF - 5/16" x 1-3/4" x 22-1/4"
1шт.
10
33121
LEAF - 5/16" x 1-3/4" x 13"
1шт.
12
33123
PIN
CLIP - leaf retainer
2шт.
13
33124
PLUG
RIVET - clip to leaf spring
2шт.
14
D25557
BOLT - center, leaf spring (3/8" - 24 NF x 2-5/8")
1шт.
15
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8 - 24 NF)
1шт.
16
D25525
BRACKET - leaf spring pivot
2шт.
17
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
- pivot bracket
2шт.
18
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
2шт.
19
D25532
WASHER - special (1-17/64" I.D. x 2" O.D. x 9/64" thick)
2шт.
20
D25535
WASHER - flat (1-9/32" I.D. x 2" O.D. x 9/64" thick) Early production - see D26918
2шт.
21
132-152
PIN
- cotter, 1/4" x 1-3/4" (Early production - see D26918)
2шт.
21a
D26918
SNAP RING,#125, Ext
Ring, Snap, , pivot bracket (Late production - see D25535 and 138-152) #125, Ext
2шт.
22
D26284
BRACKET - retainer, leaf spring (Early production - see D26725)
2шт.
23
13-860
BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5
(Early production - see D26725) Hex, 1/2"-13 x 3 3/4", G5
8шт.
23a
D26725
"U" BOLT - leaf spring to pivot bracket (Late production - see 26284 and 13-860)
4шт.
24
131-354
LOCK NUT,1/2"-13, GA
NUT - lock (1/2" - 13 NC)
8шт.
25
33676
DRAWBAR SUPPORT
BLOCK - leaf spring limit (Loaders, dozers, and models with three point hitch)
2шт.
Выбрано товаров: 28
