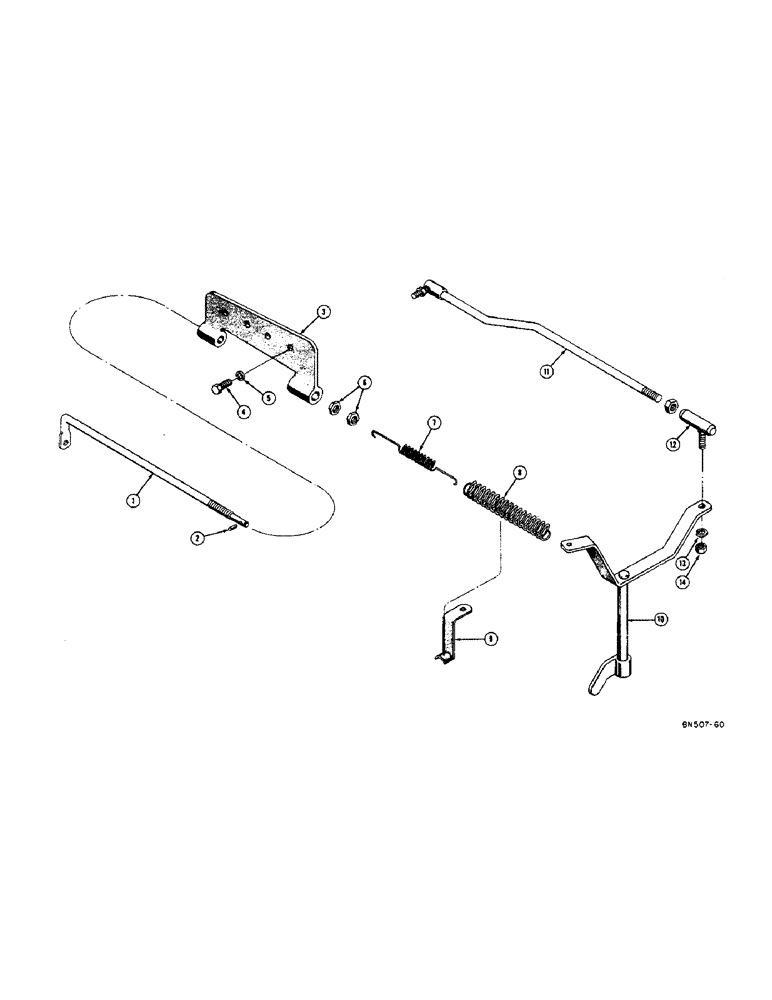

Запчасти Case 310D (026) - GOVERNOR LINKAGE (02) - FUEL SYSTEM

1

G11203

ROD - governor control (Used up to engine serial #284-S09538)

1шт.

G11369

ROD - governor control (Plated) Engine serial #284-S09538 and after

1шт.

2

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, (Engine S/N 284-S09538 and after) 1/8" x 3/8", Slotted

1шт.

3

VT403

GUIDE - governor control rod (Used up to engine serial #284-S09538)

1шт.

G2133

GUIDE

- governor control rod (Engine serial #284-S09538 and after)

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

HHCS - zinc plated (5/16 - 18 NC x 1)

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

131-412

NUT - adjusting, governor rod (7/16 - 20 NF)

1шт.

VT4588

X

SPRING - governor speed control (Used up to engine serial #284-S09538) Not shown (See G48510 and G48511)

1шт.

7

G48510

X

SPRING - governor speed control, inner (Engine serial #284-S09538 and after)

1шт.

8

G48511

SPRING

- governor speed control, outer (Engine serial #284-S09538 and after)

1шт.

9

VT5569

DAMPER - governor spring

1шт.

10

VTA850

X

LEVER AND ARM ASSEMBLY - governor

1шт.

11

G45222

ROD

- throttle, governor, Serial Range: arm-carburetor

1шт.

12

G45711

X

BALL AND SOCKET - throttle rod

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

2шт.
