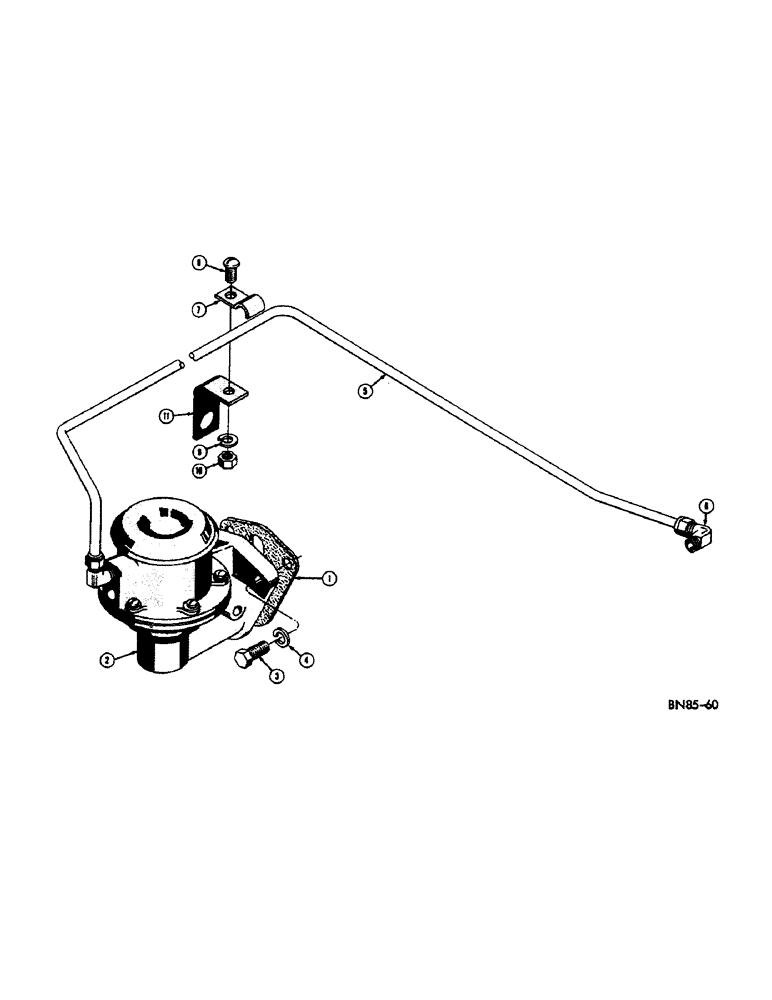

Запчасти Case 310D (020[1]) - ENGINE FUEL PUMP (02) - FUEL SYSTEM

1

G10050

GASKET - fuel, Serial Range: pump-block

1шт.

2

G45778

PUMP

- fuel

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

H46289

LINE - fuel, fuel, Serial Range: pump-carburetor

1шт.

6

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- 90 degree male (5/16 JIC x 1/8 NPT)

2шт.

7

G11359

CLAMP - fuel line

1шт.

8

169-76

SCREW - fillister hd. (#8 - 32NC x 7/16)

1шт.

9

195-10

WASHER,#8

1шт.

10

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps (#8 - 32 NC)

1шт.

11

G11358

BRACKET - mounting, fuel line clamp

1шт.
