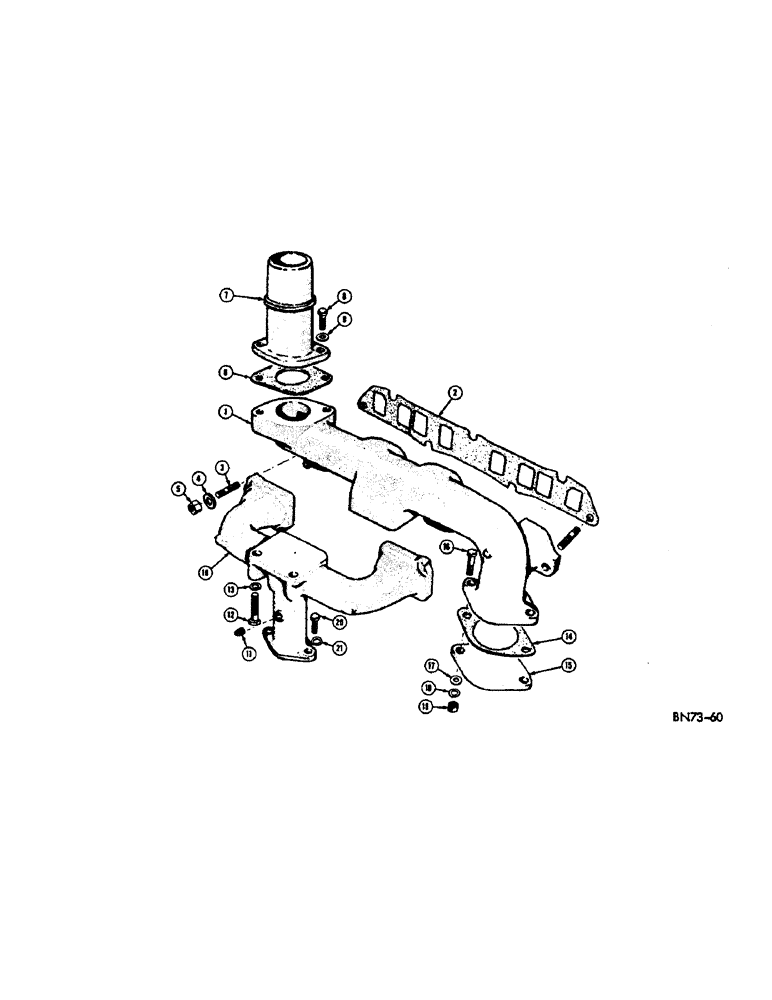

Запчасти Case 310D (020) - MANIFOLD (01) - ENGINE

1

G2042

MANIFOLD

- exhaust

1шт.

2

VT3394

X

GASKET - exhaust manifold

1шт.

3

VT4510

X

STUD - manifold to cylinder head (3/8 x 1-3/4)

7шт.

4

VT4504

WASHER

- plain, manifold stud (7/8" O.D. x 13/32" I.D. x 1/8" thick)

7шт.

5

VT3362

X

NUT - hex., brass (3/8 - 16NC)

7шт.

6

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

7

D25460

OUTLET - exhaust

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

G11920

X

MANIFOLD - intake

1шт.

11

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4 NPT ext. sq. hd.

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

G46853

MANIFOLD GASKET

- exhaust manifold lower port cover

1шт.

15

G2044

LARGE PLATE

COVER - exhaust manifold lower port

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8 - 16NC x 1-1/2

2шт.

17

195-25

WASHER,3/8"

- plain (3/8)

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

VT3362

X

NUT - hex., brass (3/8 - 16NC)

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Carburetor to intake manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.
