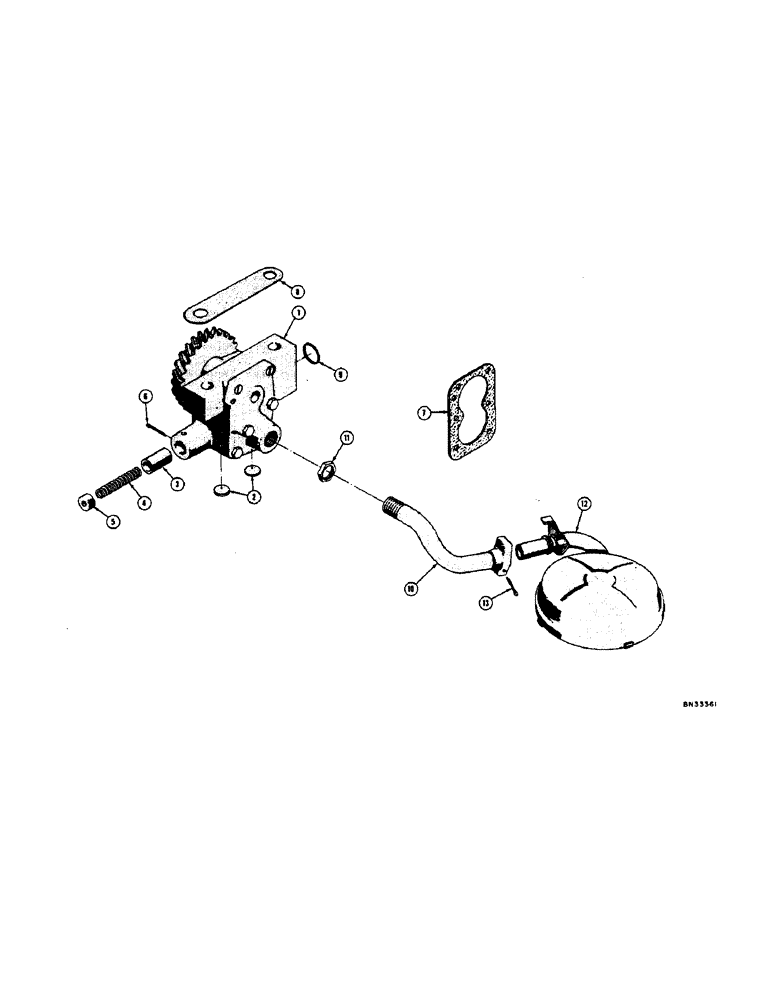

Запчасти Case 310D (018) - OIL PUMP (01) - ENGINE

1

G11844

PUMP, ENGINE OIL

PUMP - oil, engine

1шт.

2

VT3356

PLUG - oil pump body (1/2" Hubbard)

2шт.

3

VT3298

X

VALVE - relief, oil pressure

1шт.

4

G48513

VALVE SPRING

SPRING - relief valve

1шт.

5

VT3221

X

RETAINER - relief valve spring

1шт.

6

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL PIN - retaining, relief valve (1/8 x 1-1/4)

1шт.

7

G46852

GASKET

- cover to pump body

1шт.

8

G11337

SHIM,.002" Thk

Pump to bearing cap .002" Thk

1шт.

G11338

SHIM,.005" Thk

Pump to bearing cap .005" Thk

1шт.

9

A11027

GASKET

"O" RING - seal, port hole

1шт.

10

G45766

PIPE, EXHAUST SYSTEM

PIPE -, Serial Range: float-pump

1шт.

11

223-207

LOCK NUT

NUT - lock, conduit (3/8)

1шт.

12

G45060

FLOAT

- oil pan

1шт.

13

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Pipe to float 1/8" x 1 1/4"

1шт.
