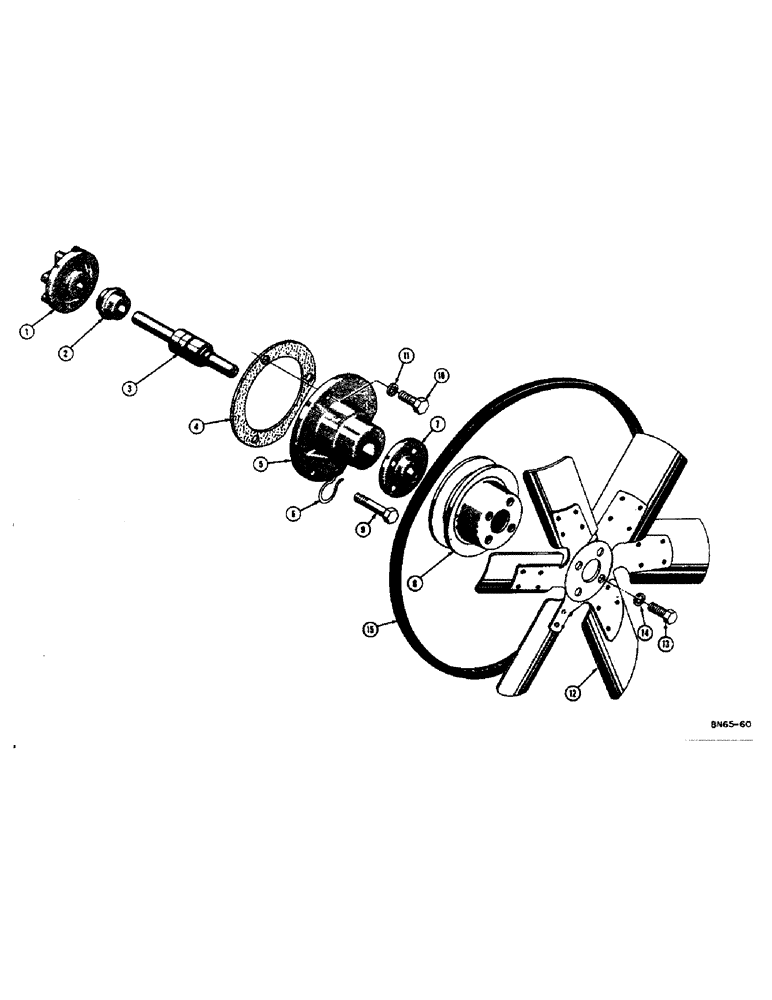

Запчасти Case 310D (014) - WATER PUMP, FAN, FAN BELT, AND PULLEY (01) - ENGINE

G11956

WATER PUMP

PUMP - water, complete

1шт.

1

VT342

IMPELLER - water pump

1шт.

2

09799AB

SEAL - driveshaft

1шт.

3

VTA904

X

SHAFT - pump drive (Includes bearings and slinger)

1шт.

4

G46875

GASKET

- pump body to timing gear cover

1шт.

5

VTA905

X

BODY - water pump

1шт.

6

VT4594

X

RING - retaining

1шт.

7

VT4533

HUB - fan

1шт.

8

G11339

PULLEY

- water pump

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8 - 16 NC x 2-3/4

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

12

11290

FAN

- pusher (Loader models only)

1шт.

D25976

FAN - suction

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

G46238

BELT,0.55" W x 17.78" L

Fan and generator Drive 0.55" W x 17.78" L

1шт.
