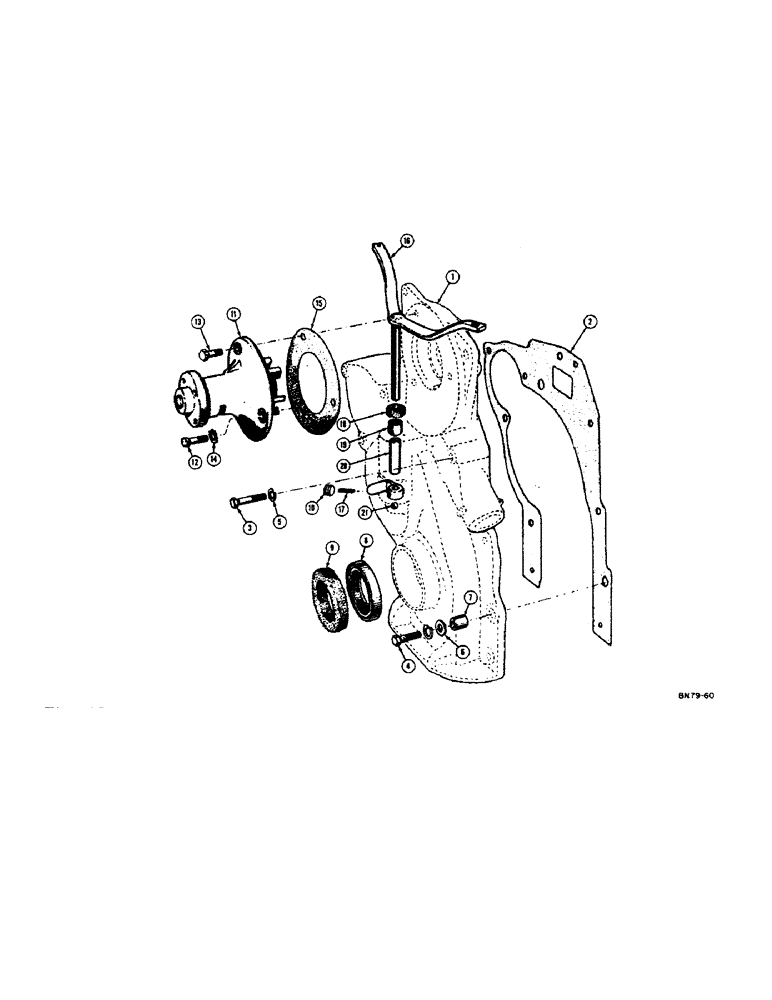

Запчасти Case 310D (010) - TIMING GEAR COVER (01) - ENGINE

1

VT334

SPARE PART COVER - timing gear

1шт.

2

VT3248

X

GASKET - timing gear cover

1шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Timing gear cover to block Hex, 3/8"-16 x 2", G5

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Timing gear cover to block Hex, 3/8"-16 x 2 1/4", G5

1шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - timing gear cover to block (3/8 - 16 NC x 2-3/4)

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Timing gear cover to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - timing gear cover to block (3/8 - 16 NC x 1-1/2)

2шт.

5

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

8шт.

6

95-6

WASHER,3/8"

WASHER - plain (3/8)

2шт.

7

VT4535

X

RING - dowel, timing gear, Serial Range: cover-block

2шт.

8

VT3373

SPARE PART SEAL - oil, crankshaft (front)

1шт.

9

VT3380

SPARE PART SEAL - dust, drive pulley

1шт.

10

VT3352

X

PLUG - pipe, timing gear cover (1/8" slotted hd.)

1шт.

11

G11956

WATER PUMP

PUMP - water (See Figure 014 for breakdown)

1шт.

11

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

11

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - water pump to timing gear cover (3/8 - 16 NC x 2-3/4)

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Water pump to timing gear cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

14

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - Shakeproof lock, external tooth (3/8)

3шт.

15

G46875

GASKET

GASKET - water pump to timing gear cover

1шт.

16

VTA850

X

LEVER AND ARM - governor

1шт.

17

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

18

VT3259

X

SEAL - dust, governor shaft

1шт.

19

VT3351

X

BEARING - governor shaft

1шт.

20

VT3288

X

SPACER - thrust, governor shaft

1шт.

21

A7456

X

BALL - thrust, governor shaft (3/16" dia.)

1шт.
