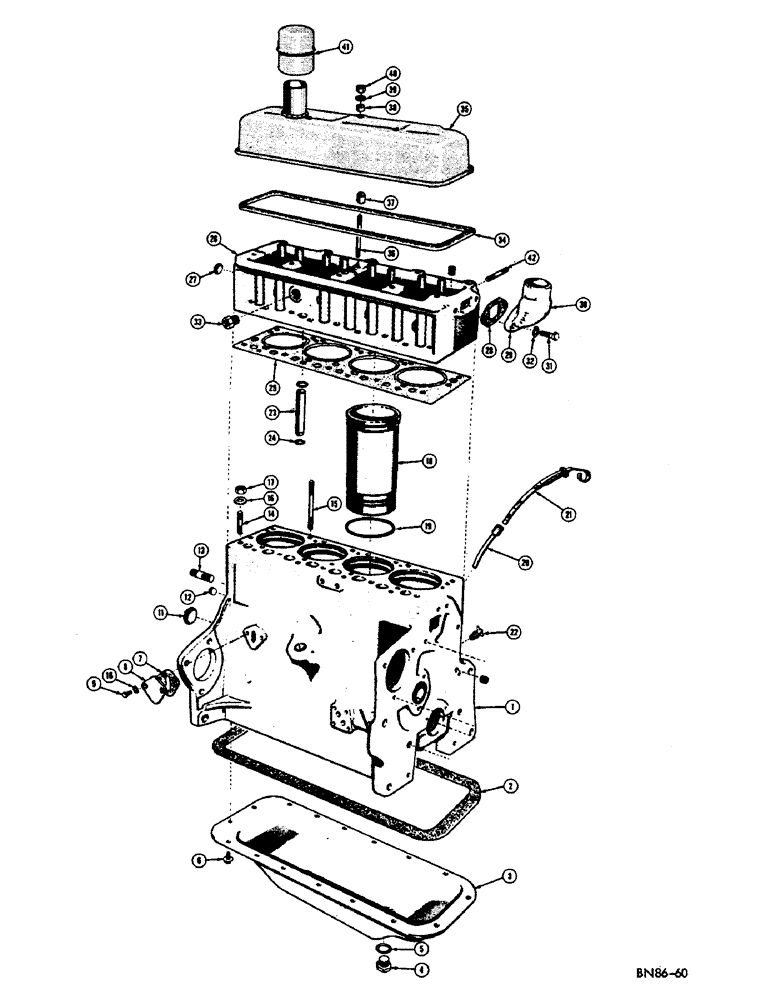

Запчасти Case 310D (008) - ENGINE BLOCK AND RELATED PARTS (01) - ENGINE

1

G11591

BLOCK ASS'Y - cylinder (Includes bearing caps, place bolts, camshaft bushings, studs, and plugs)

1шт.

2

G10020

X

GASKET - oil pan

1шт.

3

G11868

PAN ASS'Y - oil

1шт.

4

VT4521

X

PLUG - drain, oil pan

1шт.

5

VT4520

X

GASKET - drain plug

1шт.

6

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

HHCS AND LOCKWASHER - oil pan to block (5/16 - 18NC x 3/4)

16шт.

7

G10050

GASKET - fuel pump hole cover

1шт.

8

G11702

COVER

- fuel pump hole

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

VT3398

X

PLUG - Hubbard, crankshaft rear bearing (2-1/8" dia.)

1шт.

12

VT3395

X

PLUG - pipe, oil gallery (1/8 NPT socket hd)

5шт.

13

VT3531

X

STUD - lock to clutch housing (5/8 x 3)

2шт.

14

VT4503

X

STUD - cylinder head (1/2 x 2)

9шт.

15

VT4515

X

STUD - cylinder head (1/2 x 5-13/16)

5шт.

16

VT4529

WASHER

- cylinder head studs (1/2)

14шт.

17

VT3361

X

NUT - cylinder head studs (1/2)

14шт.

18

G1061

SLEEVE

- cylinder (3-3/8" bore)

4шт.

19

VT3375

X

"O" RING - seal, cylinder sleeve

8шт.

20

G45139

BRACKET

SUPPORT - dipstick

1шт.

21

G45138

DIPSTICK

- oil level

1шт.

22

VT2784

X

VALVE - water drain, engine block

1шт.

23

G11360

TUBE,0.687" OD x 3.687" L

- push rod (3-11/16" long)

8шт.

24

G46896

X

SEAL - push rod tube

16шт.

25

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

26

G11909

HEAD - cylinder (Includes valve stem guides, push rod tubes, plugs, and studs)

1шт.

27

VT5058

PLUG - Hubbard, safety freeze (1-1/8" dia.)

1шт.

28

VT3228

X

GASKET - water outlet elbow

1шт.

29

G11087

ELBOW - water outlet

1шт.

30

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8 NPT ext. sq. hd.

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

34

VT3246

GASKET - valve cover

1шт.

35

G13997

COVER - valve

1шт.

36

G49504

STUD

- valve cover (3/8 x 4-5/8 with 1" thread)

1шт.

G49505

STUD

- valve cover (3/8 x 4-5/8 with 2" thread) (Not shown)

2шт.

37

VT3142

X

SPACER - valve cover

2шт.

38

VT4564

X

SPACER - valve cover stud

2шт.

39

VT3291

X

WASHER - valve cover stud (1" O.D. x 13/32" I.D. x 1/8" thick)

3шт.

40

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16NC)

3шт.

41

VT3545

X

CAP - oil filler and breather

1шт.

42

VT4510

X

STUD - manifold to head (3/8 x 1-3/4)

7шт.
