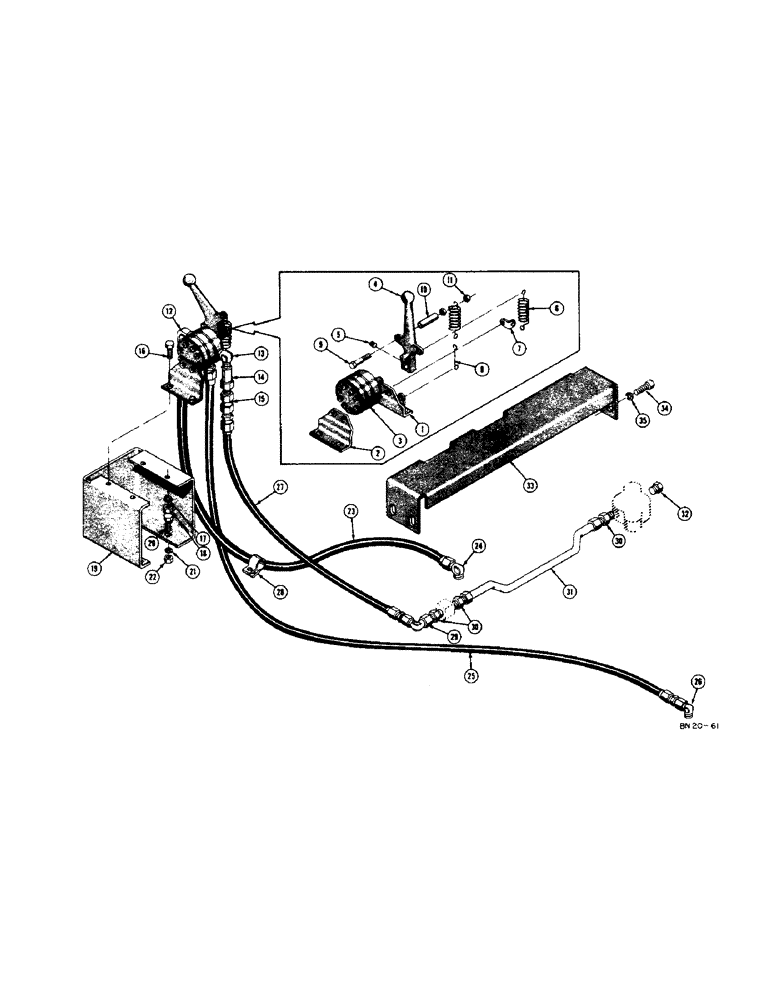

Запчасти Case 310D (162[1]) - C-12 WINCH HYDRAULIC CONTROLS (07) - HYDRAULIC SYSTEM

D26614

X

VALVE - control, complete

1шт.

1

D28284

BRACKET - mounting, control valve body (R.H.)

1шт.

2

D28285

BRACKET - mounting, control valve body (L.H.)

1шт.

3

D28287

BODY

- control valve

1шт.

4

D28288

HANDLE - control

1шт.

5

D28289

SCREW - set, control handle

1шт.

6

D26622

SPRING - return, control handle

2шт.

7

D28293

CLIP - mounting, return spring

1шт.

8

D28292

LINK - extension, return spring

1шт.

9

D28286

SCREW - return spring

1шт.

10

D28290

SPACER - spring mounting

1шт.

11

D28291

NUT - hex., return spring screw

2шт.

12

222-773

ELBOW - 90 degree male (1/2 JIC x 1/4 NPT)

1шт.

13

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street (1/4 NPT)

1шт.

14

D26625

STRAINER - drain line

1шт.

15

D28294

X

FITTING - hose adapter drain line

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

4шт.

19

D26624

STAND - control valve

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

4шт.

23

D26617

HOSE - drain line (1/2" I.D. x 3/4" O.D. x 48")

1шт.

24

D26611

ELBOW - 90 degree male

1шт.

25

D26616

HOSE - clutch line (1/4" I.D. x 17/32" O.D. x 72")

1шт.

26

D26609

X

ELBOW - 45 degree male

1шт.

27

D26615

HOSE - control valve to pump (1/4" I.D. x 17/32" O.D. x 48")

1шт.

28

D23621

CLAMP - hose

1шт.

29

D26613

X

ELBOW - 90 degree swivel nut

1шт.

30

D26612

X

CONNECTOR - male

3шт.

31

D26610

TUBE

- brake line, pump to brake cylinder

1шт.

32

129998

PLUG,1/2" - 20 ORB

(5/16 JIC) Hex Hd, 1/2"-20 ORB

1шт.

33

D26538

GUARD - tube

1шт.

34

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

4шт.

35

92-8

LOCK WASHER,1/2"

4шт.
