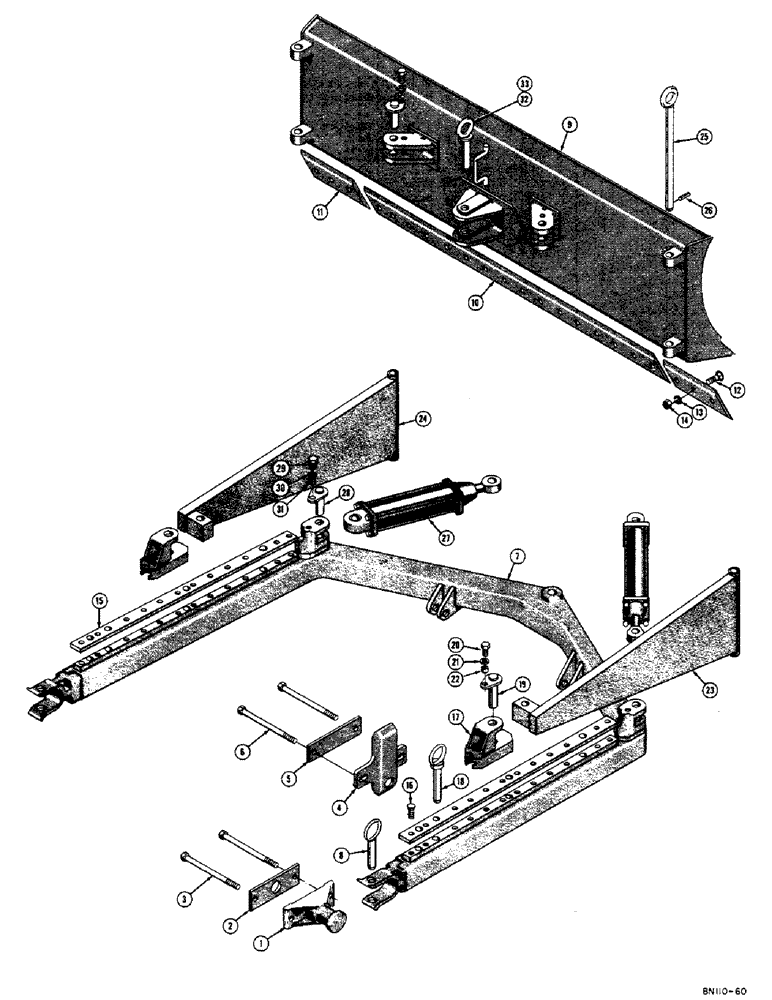

Запчасти Case 310D (150) - HYDRAULIC ANGLING DOZER (07) - HYDRAULIC SYSTEM

1

34044

SPACER

BRACKET - pivot, dozer attaching

2шт.

2

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

3

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4 - 16 NF x 12

4шт.

4

33961

CONNECTING LINK

PLATE - rub

2шт.

5

34047

LEVER

SPACER - rub plate

2шт.

6

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4 - 16 NF x 12

4шт.

7

37963

"C" FRAME - hydraulic angling dozer

1шт.

8

38679

PIN - "C" frame to pivot bracket

2шт.

9

D20266

MOLDBOARD - hydraulic angling dozer

1шт.

10

38047

EDGE

BLADE - cutting, center

1шт.

11

16042

EDGE

BLADE - cutting, end

2шт.

12

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2 - 13 NC x 1-3/4)

23шт.

13

92-8

LOCK WASHER,1/2"

23шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

23шт.

15

37573

PLATE - slide

2шт.

16

164-132

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 3/4"

SCHS - 1/2 - 20 NF x 1-3/4

26шт.

17

39127

BRACKET

- slide

2шт.

18

38070

LUBE NIPPLE

PIN - angling stop

2шт.

19

39130

PIN - mounting, strut to slide bracket

2шт.

20

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4

2шт.

21

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

22

D23740

BUSHING

- lockhead pin

2шт.

23

D20224

STRUT - slide bracket to moldboard, R.H.

1шт.

24

D20225

STRUT - slide bracket to moldboard, L.H.

1шт.

25

D20247

PIN - mounting, Serial Range: strut-moldboard

2шт.

26

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

27

37932

CYLINDER - dozer angling, hydraulic (See Figure 156 for breakdown)

1шт.

28

31109

PIN ASSY.

PIN - mounting, angling cylinder to "C" frame and moldboard

4шт.

29

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 13 NC x 3/4

4шт.

30

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

31

D23740

BUSHING

- lockhead pin

4шт.

32

38072

PIN

- "C" frame to moldboard, center

1шт.

33

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.
