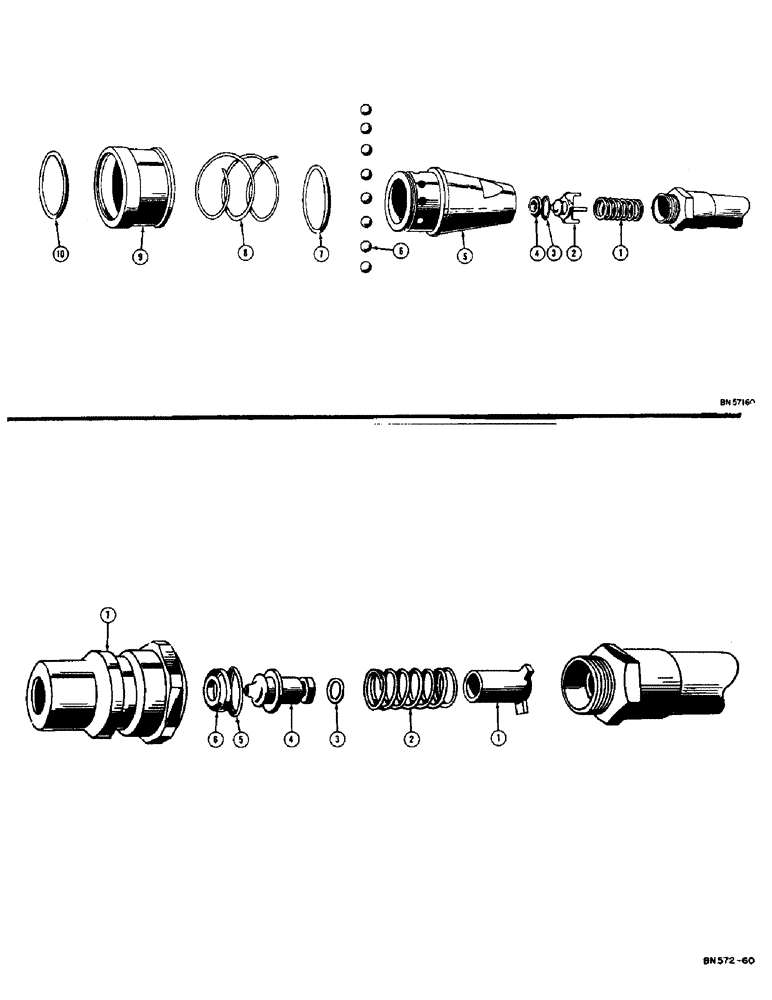

Запчасти Case 310C (154) - 4026AA PULL BEHIND COUPLING-FEMALE (07) - HYDRAULIC SYSTEM

4026AA

X

COUPLING - female, pull behind (See figure 156 for service kit)

2шт.

1

A11324

SPRING

- coupling piston

1шт.

2

6119A

X

PISTON - coupling

1шт.

3

A11325

X

RETAINER - seal

1шт.

4

O8372AB

X

SEAL - piston

1шт.

5

O8371AB

BODY - female coupling

1шт.

6

O8635AB

X

BALL - steel, socket locking (1/4" dia.)

8шт.

7

O8377AB

X

SEAL - "O" ring, socket body

1шт.

8

O8379AB

X

SPRING - ball retaining sleeve

1шт.

9

O8378AB

X

SLEEVE - ball retaining

1шт.

10

O8380AB

X

SNAP RING - socket rubber

1шт.

4025AA

X

COUPLING - male, pull behind (See figure 156 for service kit)

2шт.

1

51200858

SLEEVE

- coupling plug piston, pull behind male

1шт.

2

O8375AB

X

SPRING - piston, pull behind coupling-male

1шт.

3

O8386AB

X

SEAL - "O" ring, piston sleeve, pull behind coupling-male

1шт.

4

O8859AB

X

PISTON - coupling plug, pull behind male

1шт.

5

A11325

X

RETAINER - seal, pull behind coupling-male

1шт.

6

O8372AB

X

SEAL - piston, pull behind coupling-male

1шт.

7

O8381AB

X

BODY - male plug coupling, pull behind

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

PLUG - adapter to connect Case hydraulic hose to 1/2" female pipe connection (Has 1/2" male pipe thread on one end and 7/8" - 18 NF female thread on the other end.),for pull behind couplings

1шт.

O9466AB

X

PLUG - adapter to adopt Case pull behind couplings to hydraulic hose lines having 1/2" male pipe thread (Has 1/2" female pipe thread on one end and 7/8" - 18 NF male thread on the other end.)

1шт.
