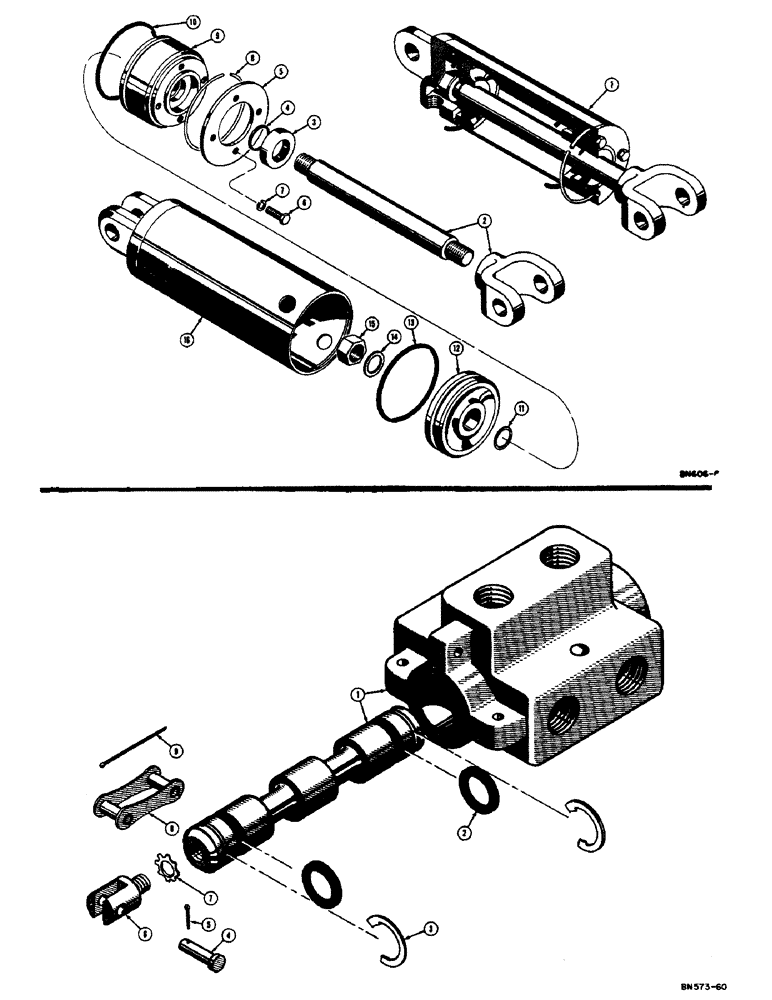

Запчасти Case 310C (152) - A8282 EAGLE HITCH HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

A8282

CYLINDER - Eagle hitch, hydraulic

1шт.

2

4416AA

ROD AND YOKE - piston

1шт.

3

O3869AB

X

SEAL - wiper, piston rod

1шт.

4

A11251

SEALING RING

- "O" ring, piston rod

1шт.

5

A11249

CLAMP - cylinder head

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

O9265AB

X

SNAP RING - cylinder head

1шт.

9

A11248

HEAD

- cylinder

1шт.

10

O8365AB

X

SEAL - "O" ring, cylinder head

1шт.

11

O8345AB

X

GASKET - piston rod

1шт.

12

A8968

PISTON

- cylinder

1шт.

13

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

14

193-16

LOCK WASHER,Ext Tooth, 7/8"

WASHER - Shakeproof lock, external tooth (7/8")

1шт.

15

25-1114

NUT,7/8"-14, G5

- hex. (7/8 - 14 NF)

1шт.

16

A11247

TUBE AND CAP - cylinder

1шт.

D26726

VALVE

- diversion

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set, diversion valve

1шт.

2

D23691

O-RING

SEAL - "O" ring, spool, diversion valve

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool, diversion valve #100, Ext, Crescent

2шт.

4

D23693

AXLE PIN

PIN - handle, diversion valve

1шт.

5

36625

X

PIN - cotter, handle pin, diversion valve

1шт.

6

D23694

ADAPTER

- handle, diversion valve

1шт.

7

D23695

WASHER

- lock, diversion valve

1шт.

8

D23696

DRAG LINK

LINK - handle, diversion valve

1шт.

9

D23697

X

PIN - cotter, link, diversion valve

1шт.
