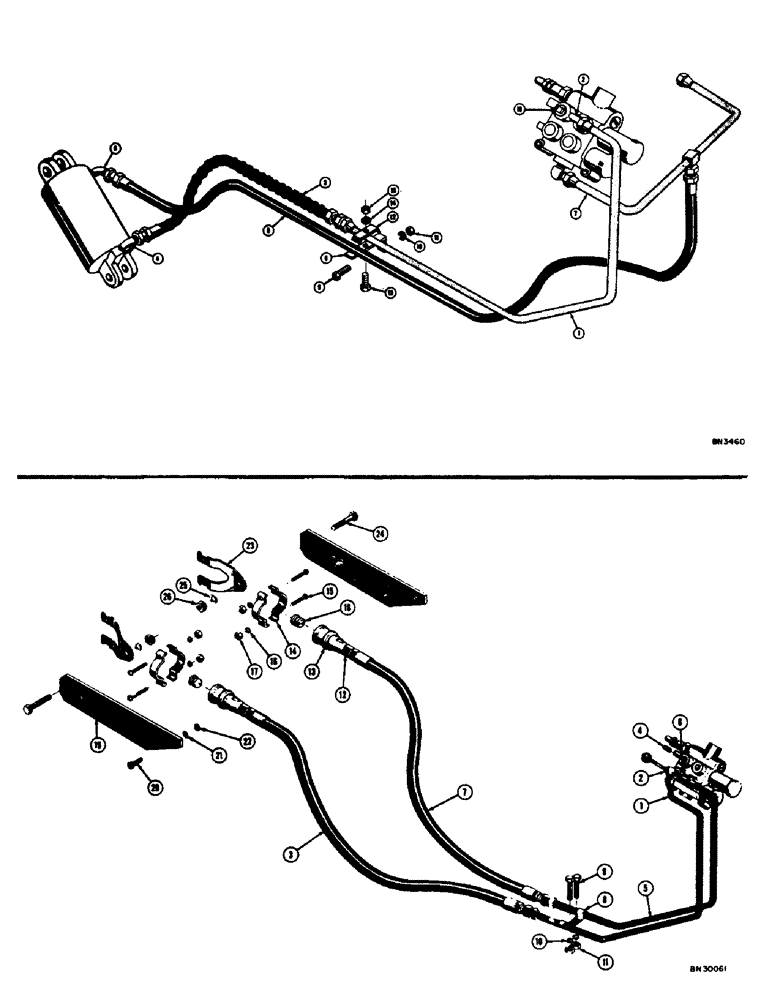

Запчасти Case 310C (148) - EAGLE HITCH HYDRAULICS, (WITH DRAWBAR TRACTOR OR PULL BEHIND HYDRAULICS) (07) - HYDRAULIC SYSTEM

1

39849

SEAL

TUBE - L.H. front valve port to lower cylinder port, front section

1шт.

2

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

3

D20499

HOSE - L.H. front valve port to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 33")

1шт.

4

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees (5/8" JIC x 1/2" NPT)

1шт.

5

D20502

HOSE - upper cylinder port to reservoir, rear section (3/8" I.D. x 3/4" O.D. x 72")

1шт.

6

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- male, 45 degrees (3/8" JIC x 1/2" NPT)

1шт.

7

D20467

TUBE - upper cylinder port and valve outlet to reservoir, front section

1шт.

8

NLS

NO LONGER SERVICED

BRACKET - support, tube clamp

1шт.

9

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

12

32978

PLATE ASSY.

PLATE - clamp

1шт.

13

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

16

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT square head

1шт.

1

37763

TUBE - R.H. rear control valve port to R.H. pull behind coupling, front section, (with crawbar tractor, eagle hitch, or mechanical dozer)

1шт.

2

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT), pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

1шт.

3

D20804

HOSE

- R.H. rear control valve port to R.H. pull behind coupling, rear section (1/2" I.D. x 7/8" O.D. x 30-1/2"), (with drawbar tractor, eagle hitch, or mechanical dozer)

1шт.

4

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT square head, pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

5

37762

FINGER

TUBE - R.H. front control valve port to L.H. pull behind coupling, front section, (with drawbar tractor, eagle hitch, or mechanical dozer)

1шт.

6

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT), pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

1шт.

7

D20804

HOSE

- R.H. front control valve port to L.H. pull behind coupling, rear section (1/2" I.D. x 7/8" O.D. x 30-1/2"), (with drawbar tractor, eagle hitch, or mechanical dozer)

1шт.

8

49789

CLAMP

- tube, pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer) 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

Pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer) 1/4"-20, G5

2шт.

12

O9466AB

X

ADAPTER - hose to pull behind coupling (5/8" JIC x 1/2" NPT), (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

13

4026AA

X

COUPLING - female, pull behind (See figure 154 for breakdown), (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

4025AA

X

COUPLING - male, pull behind (See figure 154 for breakdown) Not shown, (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

14

O8606AB

X

CLAMP - pull behind coupling, (with drawbar tractor, eagle hitch, or mechanical dozer)

4шт.

15

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- maching, round head (No. 8 - 32 NC x 5/8"), pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

4шт.

16

192-6

LOCK WASHER,#8

WASHER, LOCK, , Pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer) #8

4шт.

17

129-6

NUT,#8-32

Pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer) #8-32

4шт.

18

O8652AB

X

PLUG - dust, pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

19

O8388AB

X

BRACKET - mounting, pull behind coupling, (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

21

92-5

LOCK WASHER,5/16"

pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer) 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC), pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

23

38505

BRACKET - mounting, pull behind hydarulics (with drawbar tractor, eagle hitch, or mechanical dozer)

2шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1, pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

4шт.

25

92-6

LOCK WASHER,3/8"

pull behind hydraulics ( with drawbar tractor, eagle hitch, or mechanical dozer) 3/8"

4шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF), pull behind hydraulics (with drawbar tractor, eagle hitch, or mechanical dozer)

4шт.
