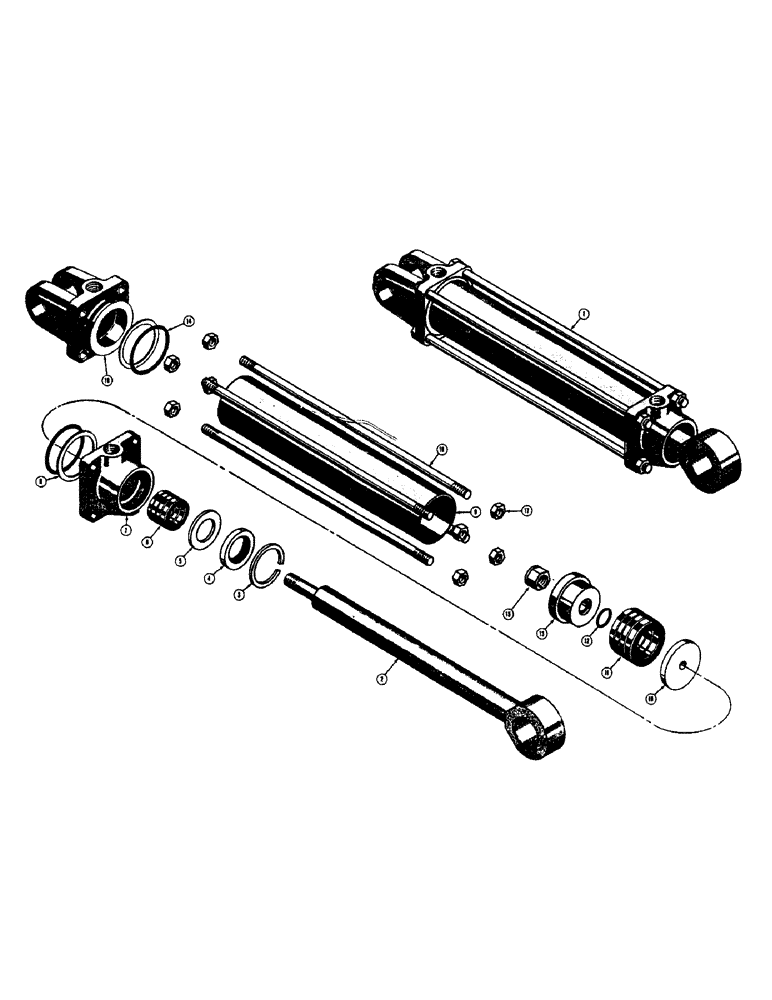

Запчасти Case 310C (128) - 38137 DOZER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

38137

CYLINDER - dozer lift, hydraulic

2шт.

2

38138

ROD - piston

1шт.

3

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

4

17603

WIPER SEAL

- wiper

1шт.

5

36259

WASHER

- packing, piston rod

1шт.

6

17597

PACKING

- piston rod

1шт.

7

17592

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

8

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

9

38140

CHAIN

TUBE - cylinder

1шт.

10

30630

CARTRIDGE

WASHER - packing, piston

1шт.

11

17598

PACKING

- piston

1шт.

12

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23738 piston)

1шт.

13

30631

X

PISTON - cylinder (No "O" ring) (Use D23738, D23739, and O3522CK)

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing piston without "O" ring, also order 1 - O3522CK "O" ring and 1-D23739 locknut)

1шт.

14

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

15

131-152

HARDWARE

NUT - lock (30631 piston only) (3/4 - 16 NF)

1шт.

D23739

LOCK NUT

NUT - lock (D23738 piston only) (3/4 - 16 NF)

1шт.

16

38141

ROD - tie

4шт.

17

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

8шт.

18

17591

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.
