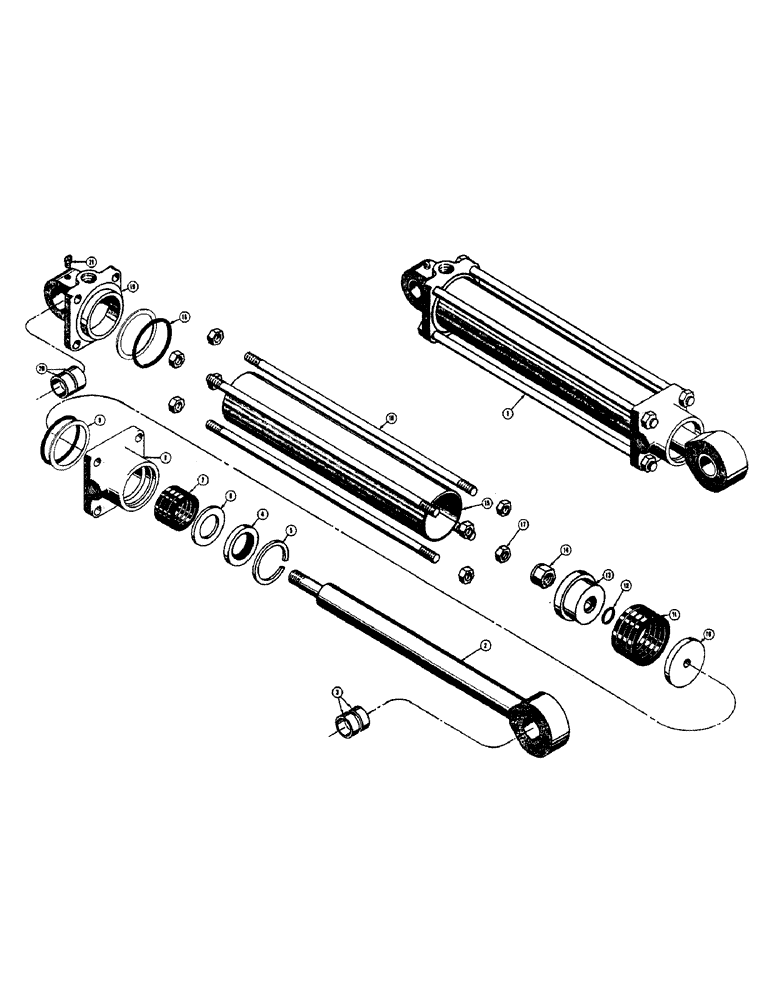

Запчасти Case 310C (102) - 31608 AND 31609 LOADER LIFT HYRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

31608

CYLINDER - Loader lift, hydraulic (R.H.)

1шт.

31609

CYLINDER - Loader lift, hydraulic (L.H.)

1шт.

2

D20031

ROD - piston

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) Not shown

1шт.

4

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

5

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

6

70741

X

WASHER - packing, piston rod (Used with 30567 cylinder end cap only)

1шт.

D25043

WASHER

- packing, piston rod (Used with D25596 cylinder end cap only)

1шт.

7

30568

PACKING

- piston rod

1шт.

8

30567

FLANGE

CAP - cylinder end (Has no. 30567 on casting) (Use D25596 and D25043)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

D25596

CAP - cylinder end (Has no. D25596 on casting) (When replacing 30567 end cap, also order 1 - D25043 washer)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

9

D24987

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove)

2шт.

D25495

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

10

NLS

NO LONGER SERVICED

WASHER - packing, piston

1шт.

11

17578

PACKING

- piston

1шт.

12

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring (Used with D23736 piston only)

1шт.

13

30571

PISTON - cylinder (No "O" ring) (Use D23736, D23688, and A7623)

1шт.

D23736

PISTON - cylinder (With "O" ring) (When replacing 30571 piston without "O" ring, also order 1 - A7623 "O" ring and 1 - D23688 locknut)

1шт.

14

131-19

LOCK NUT,1"-14, GB

NUT - lock (30571 piston only) (1" - 14 NF)

1шт.

D23688

X

NUT - lock (D23736 piston only) (1" - 14 NF)

1шт.

15

30570

DRAWBAR

TUBE - cylinder

1шт.

16

30569

ROD

- tie

4шт.

17

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

8шт.

18

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

19

D20054

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24987 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

20

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
