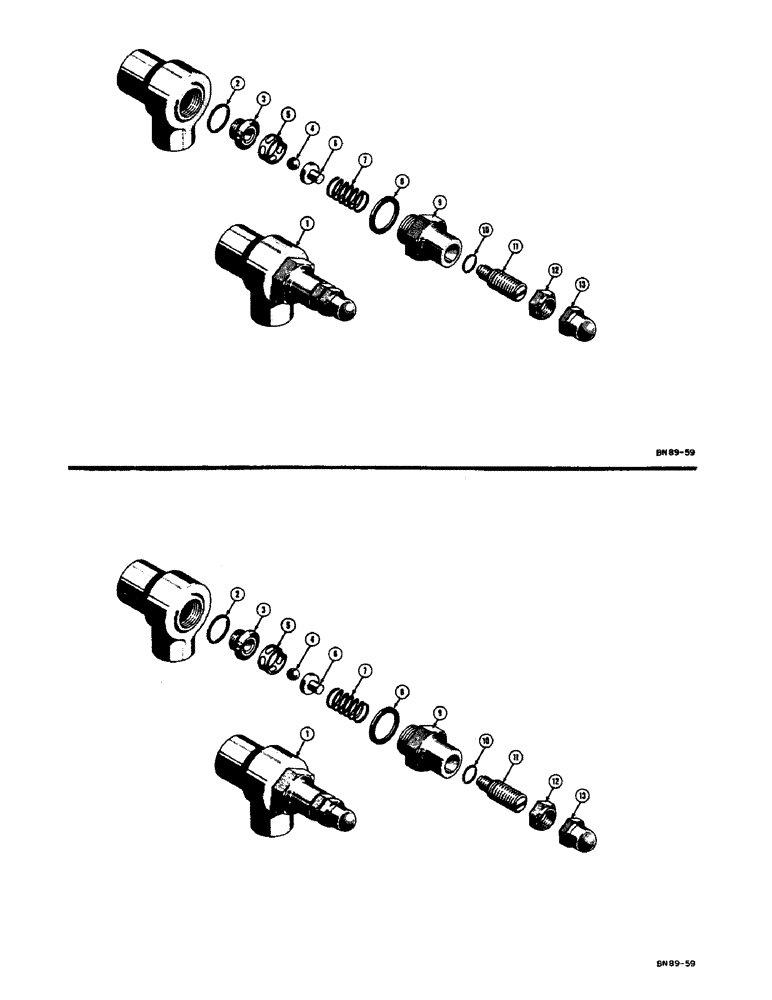

Запчасти Case 310C (100) - 33959 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

33959

PIPE FITTING

VALVE - special relief (Has no. 985 on housing) Use D24452

1шт.

Valve P/N 33959 is identified by the number 985 on the housing. If the housing has the number 2716 on it, refer to the section on this parts list having to do with the P/N D24452 Relief Valve.

1шт.

2

A11027

GASKET

SEAL - "O" ring, valve seat

1шт.

3

34119

SEAT, VALVE

SEAT - valve (Use D24406)

1шт.

D24406

SEAT

- valve

1шт.

4

O7210AB

X

BALL - relief valve (1/2" dia.)

1шт.

5

D24389

COLLAR - seat jam

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap

1шт.

1

D24452

VALVE

- special relief (Has no. 2716 on housing)

1шт.

Valve P/N D24452 is identified by the number 2716 on the housing. If the housing has the number 985 on it, refer to the section on this parts list having to do with P/N 33959 Relief Valve.

1шт.

2

D23928

O-RING

SEAL - "O" ring, valve seat, special relief

1шт.

3

D24406

SEAT

- valve, special relief

1шт.

4

O7210AB

X

BALL - relief valve (1/2" dia.), special

1шт.

5

D24389

COLLAR - seat jam, specail relief valve

1шт.

6

CAS34120

BUSHING

SPACER - spring, special relief valve

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve, special

1шт.

8

34115

GASKET

- valve cap, special relief

1шт.

9

34113

BODY

CAP - hex. body, special relief valve

1шт.

10

VT2983

X

SEAL - "O" ring, adjusting screw, special relief valve

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve, special

1шт.

12

34111

X

NUT - hex. jam, special relief valve

1шт.

13

34109

NUT - cap, special relief valve

1шт.
