Запчасти Case 310C (176) - C-3 WINCH CONTROLS (05) - UPPERSTRUCTURE CHASSIS

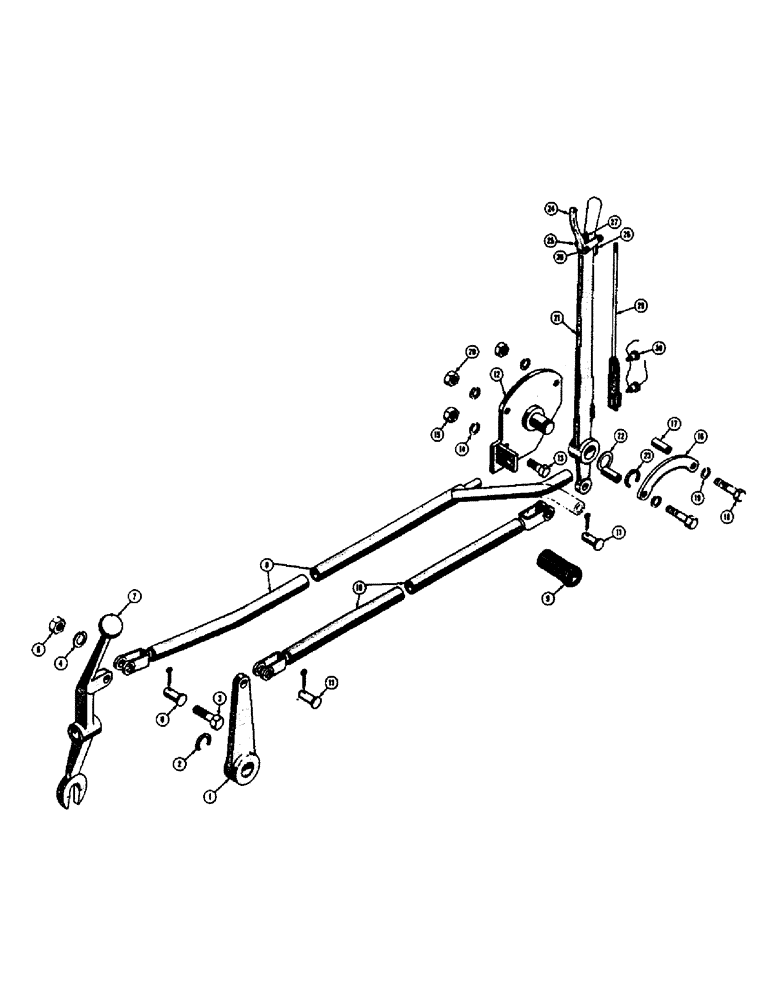

Схема запчастей Case 310C - (176) - C-3 WINCH CONTROLS (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

38840

SPARE PART

LEVER - brake (On winch) (Carco P/N 37347)

1шт.

2

38710

LUBE NIPPLE

SNAP RING - brake lever (Carco P/N XSO-239)

1шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

1шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

4

92-8

LOCK WASHER,1/2"

1шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

5

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

1шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

6

O2701AB

X

PIN - yoke (Carco P/N 2708-1/2-6A)

1шт.

Used when control bracket, Ref. 12, is welded to crawler side plate.

1шт.

7

38821

LEVER - clutch (Carco P/N 30987)

1шт.

8

39242

ROD - clutch throwout (Carco P/N 38269)

1шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

D28914

ROD - clutch throwout (Carco P/N 37312)

1шт.

Used when control bracket, Ref. 12, is welded to crawler side plate.

1шт.

9

D28912

GRIP - rubber, clutch rod (3/4" I.D. x 3" long)

1шт.

10

39241

ROD - brake (Carco P/N 38268)

1шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

D28915

ROD - brake (Carco P/N 36623)

1шт.

Used when control bracket, Ref. 12, is welded to crawler side plate.

1шт.

11

O2701AB

X

PIN - yoke (Carco P/N 2708-1/2-6A)

2шт.

12

38709

BRACKET - control (Carco P/N 37310)

1шт.

13

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

1шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

16

38707

JACK

RATCHET - brake lever (Carco P/N 92-14-6)

1шт.

17

38708

SPACER - ratchet (Carco P/N 37315)

2шт.

18

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8" - 24 NF x 2-3/4

2шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

HHCS - 3/8" - 24 NF x 2-1/4

2шт.

Used when control bracket, Ref. 12, is welded to crawler side plate.

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

Used when control bracket, Ref. 12, is bolted to crawler side plate.

1шт.

21

38704

COTTER PIN

LEVER - brake (Carco P/N 37522)

1шт.

22

195-53

WASHER,1" x 2" x .134"

- plain (1-1/16" I.D. x 2" O.D. x 1/8" thick)

1шт.

23

38710

LUBE NIPPLE

SNAP RING - brake lever (Carco P/N XSO-239)

1шт.

24

38699

LATCH - brake lever (Carco P/N X-02)

1шт.

25

38701

FITTING

SCREW - latch (Carco P/N X-04)

2шт.

26

38702

X

NUT - latch (Carco P/N X-05)

2шт.

27

38700

PIPE FITTING

SPRING - latch (Carco P/N X-03)

1шт.

28

86635139

SPACER

END - rod (Carco P/N X-06-4)

1шт.

29

38705

PIPE FITTING

ROD AND PAWL - brake lever (Carco P/N 37364)

1шт.

30

38706

FITTING

SCREW - pawl (Craco P/N X-08)

2шт.

Выбрано товаров: 46
