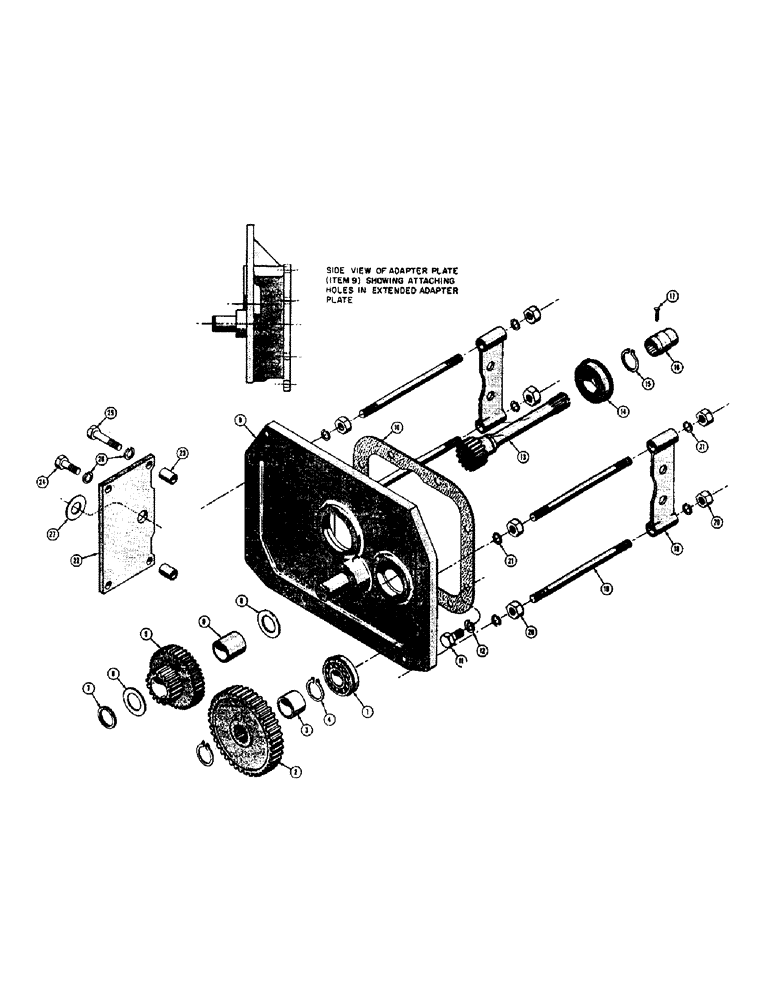

Запчасти Case 310C (174) - C-3 WINCH ADAPTER (WITH EXTENDED ADAPTER PLATE) (05) - UPPERSTRUCTURE CHASSIS

1

38830

X

BEARING - ball, driven gear shaft (Carco P/N Fafnir #306G)

1шт.

2

38829

GEAR - driven (Carco P/N 31038)

1шт.

3

38831

SPACER - driven gear (Carco P/N 31035)

1шт.

4

A7409

SNAP RING,#137, Ext

Ring, Snap, , driven gear (Carco P/N 5100-137) #137, Ext

2шт.

5

39244

GEAR - idler (Carco P/N 31039)

1шт.

6

38835

WASHER - idler gear (Carco P/N 31036)

2шт.

7

D26534

SNAP RING - idler gear (Carco P/N RS-137)

1шт.

38834

ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W

BEARING - needle, idler gear (Torrington #B2212) Use 1 - D26535 bushing

2шт.

38833

YOKE

SPACER - needle bearings, use 1 - D26535 bushing (Carco P/N 31095)

1шт.

8

D26535

BUSHING - idler gear (Carco P/N 38820)

1шт.

9

38842

SCREW

PLATE - adapter (Carco P/N 38265)

1шт.

10

38824

BOLT

GASKET - adapter plate (Carco P/N 117-137)

1шт.

11

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

11шт.

12

92-7

LOCK WASHER,7/16"

11шт.

13

38836

SHAFT - power take-off (Carco P/N 38267)

1шт.

14

38838

BEARING - ball, P.T.O. shaft (Carco P/N MRC#307SZZG)

1шт.

15

A7409

SNAP RING,#137, Ext

Ring, Snap, , P.T.O. shaft (Carco P/N 5100-137) #137, Ext

1шт.

16

38827

COUPLING - P.T.O. shaft (Carco P/N 25128)

1шт.

17

38828

RIVET - button head (3/16" x 1-5/8")

1шт.

18

38826

STUD

BRACKET - tie rod (Carco P/N 31335)

2шт.

19

D23213

ROD - tie (Heat treated) (Carco P/N 33433-5)

4шт.

20

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

21

92-8

LOCK WASHER,1/2"

8шт.

22

38721

PLATE

COVER - brake (Use D28903 and D28904) (Carco P/N 37343)

1шт.

D28903

COVER - brake (Carco P/N 38388)

1шт.

23

D28904

SPACER - brake cover (Carco P/N 38389)

2шт.

24

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

2шт.

25

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4

2шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

195-53

WASHER,1" x 2" x .134"

- plain (1-1/16" I.D. x 2" O.D. x 1/8")

1шт.
