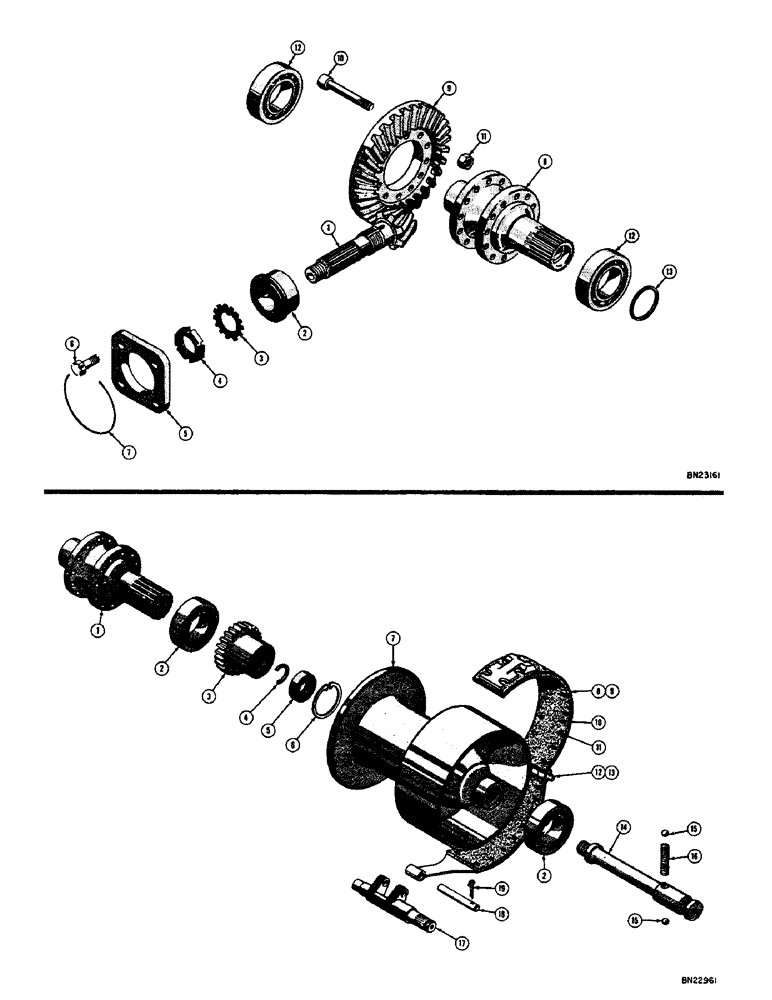

Запчасти Case 310C (170) - C-3 WINCH PINION AND BEVEL GEARS (05) - UPPERSTRUCTURE CHASSIS

1

38808

PINION - spiral drive (Carco P/N 36605)

1шт.

2

38729

BEARING - ball, pinion (Carco P/N ND#45208W)

1шт.

3

38730

X

WASHER - lock, special (Carco P/N W-08)

1шт.

4

38731

LUG

NUT - lock, special (Carco P/N N-08)

1шт.

5

38809

RETAINER - bearing (Carco P/N 30975)

1шт.

6

38810

HHCS - 1/2 - 20 NF x 1-1/4 (Drilled head)

4шт.

7

38811

LOCK WIRE - 18" long x 16 ga.

1шт.

8

38803

CARRIER - bevel gear (Carco P/N 36609)

1шт.

9

38745

PLATE

GEAR - spiral bevel (Carco P/N 36604)

1шт.

10

38804

CAP SCREW - socket head, head treated (Carco P/N 37983)

12шт.

11

38807

X

NUT - lock, hex. (1/2 - 20 NF x 3/4" across flats)

12шт.

12

38805

BEARING - ball, bevel gear carrier (Carco P/N MRC#212SZZ)

2шт.

13

38744

SPACER - bearing carrier (Carco P/N 31151)

1шт.

1

38803

CARRIER - bevel gear (Carco P/N 36609), C-3 winch cable drum and brake

1шт.

2

38805

BEARING - ball, cable drum (Carco P/N MRC#212SZZ), C-3 winch and brake

2шт.

3

39246

GEAR - clutch (Carco P/N 33906), C-3 winch cable drum and brake

1шт.

4

38743

GEAR

SNAP RING - clutch shaft (Carco P/N XSO-250), C-3 winch cable drum and brake

1шт.

5

38742

BALL BEARING

- ball, clutch shaft (Carco P/N Fafnir #9107PP), C-3 winch cable drum and brake

1шт.

6

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , clutch (Carco P/N 5000-244), C-3 winch cable drum and brake 2.44", Int, #244

1шт.

7

39245

DRUM - cable (Carco P/N 38276), C-3 winch drum and brake

1шт.

8

38728

PLATE

BAND ASSY - brake (Carco P/N 37335), C-3 winch cable and drum

1шт.

9

NSS

NOT SOLD SEPARAT

SHOE - brake, C-3 winch cable and drum

2шт.

D28908

BAND - brake, kit, C-3 winch cable and drum

1шт.

10

NSS

NOT SOLD SEPARAT

BAND - lining (1/4" x 3" x 2' 9-1/4"), C-3 winch cable drum and brake

1шт.

11

D28910

RIVET - tubular flat hd. (3/16" x 5/16"), C-3 winch cable drum and brake

34шт.

12

D28911

PIN - pivot, brake shoe (Carco P/N 37334), C-3 winch cable and drum

1шт.

13

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) , C-3 winch cable drum and brake 1/16" x 5/8"

2шт.

14

38736

SHAFT - clutch (Carco P/N 36599), C-3 winch cable drum and brake

1шт.

15

VT4913

X

BALL - steel, detent (3/8" steel), C-3 winch cable drum and brake

2шт.

16

38738

SPRING - detent ball (Carco P/N 28698-9), C-3 winch cable drum and brake

1шт.

17

38727

CRANK - brake (Carco P/N 37327), C-3 winch cable and drum

1шт.

18

38726

PIN - pivot, band to crank (Carco P/N 36595), C-3 winch cable drum and brake

1шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , C-3 winch cable drum and brake 1/8" x 1"

1шт.
