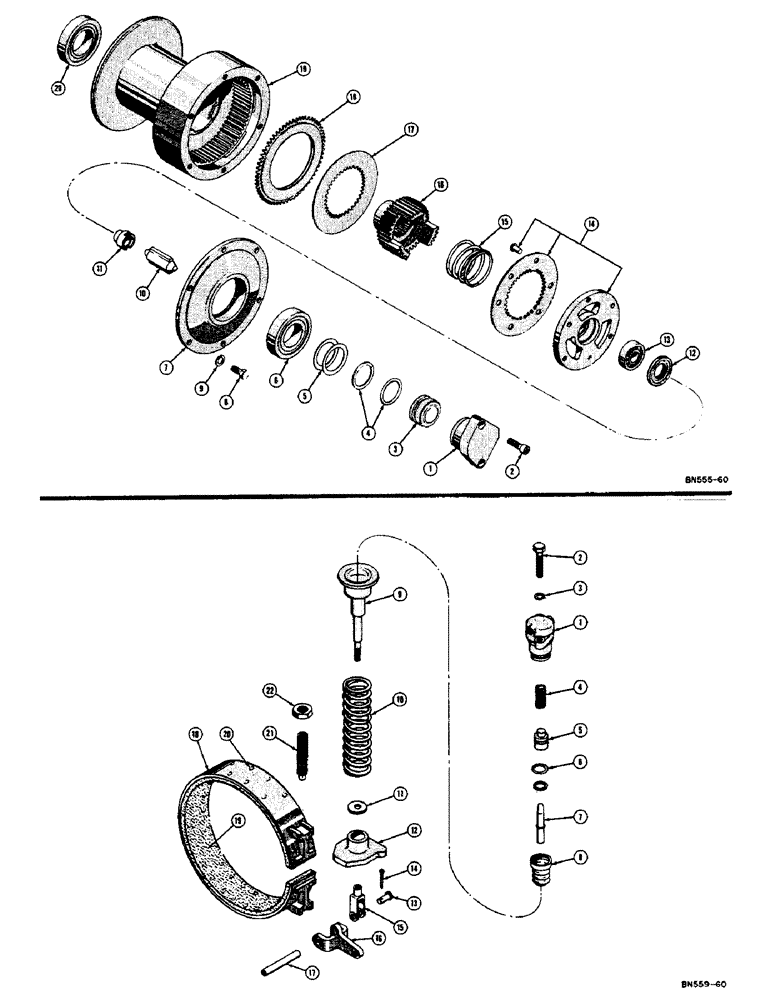

Запчасти Case 310C (162) - C-12 WINCH CABLE DRUM AND CLUTCH (05) - UPPERSTRUCTURE CHASSIS

D26564

CYLINDER

- clutch, complete

1шт.

1

D26598

CYLINDER - clutch

1шт.

2

62-820

SHCS - 1/2 - 20 NF x 1-1/4

2шт.

3

D26599

PISTON

- clutch cylinder

1шт.

4

D27496

O-RING

"O" RING - seal (Includes Teflon backup ring)

1шт.

5

D26565

SHIM - drum

2шт.

6

38805

BEARING - ball

1шт.

7

D26566

COVER - drum

1шт.

8

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

6шт.

9

92-6

LOCK WASHER,3/8"

6шт.

10

D26567

ROD - push, clutch

1шт.

D27712

PLATE - clutch, complete

1шт.

11

D26568

PLUG - thrust, clutch

1шт.

12

D26569

SEAL - oil

1шт.

13

D26570

BEARING - ball

1шт.

14

D27926

DISC ASSY - clutch

1шт.

15

D26573

SPRING - clutch release

1шт.

16

D26574

HUB - clutch

1шт.

17

D26575

DISC - steel

6шт.

18

D26576

DISC - friction

7шт.

19

D26577

DRUM - cable

1шт.

20

D26578

BEARING - ball

1шт.

D26579

CYLINDER - brake release

1шт.

1

D26601

BODY - brake release cylinder, C-12 winch brake

1шт.

2

D26585

HHCS - 3/8 - 24 NF x 1, C-12 winch brake

2шт.

3

92-6

LOCK WASHER,3/8"

C-12 winch brake 3/8"

2шт.

4

D26602

SPRING - brake release cylinder, C-12 winch brake

1шт.

5

D26603

PISTON - brake release cylinder, C-12 winch brake

1шт.

6

D27498

O-RING

"O" RING - seal (Includes Teflon backup ring), C-12 winch brake

1шт.

7

D26605

ROD - push, brake release cylinder, C-12 winch

1шт.

8

D26606

BOOT - brake release cylinder, C-12 winch

1шт.

9

D26580

ANCHOR - brake, C-12 winch brake

1шт.

10

D26581

SPRING - brake anchor, C-12 winch brake

1шт.

11

D26583

WASHER - brake anchor, C-12 winch

1шт.

12

D26584

SEAT - brake anchor spring, C-12 winch

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Yoke, C-12 winch brake 3/8" x 1.060"

1шт.

14

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , C-12 winch brake 1/8" x 3/4"

1шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable, C-12 winch brake

1шт.

16

D26587

LEVER - brake, C-12 winch

1шт.

17

D26588

PIN - brake lever, C-12 winch

1шт.

D26589

BAND ASSY - brake, C-12 winch

1шт.

18

D26607

BAND - brake, C-12 winch

1шт.

19

D26608

LINING - brake, C-12 winch

1шт.

20

151-155

RIVET - ctsk. hd., brass (3/16 x 3/8), C-12 winch brake, C-12 winch brake

34шт.

21

D26582

SCREW - set, socket (Full dog point) (3/4 - 16 NF x 4), C-12 winch brake

1шт.

22

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16 NF), C-12 winch brake

1шт.
