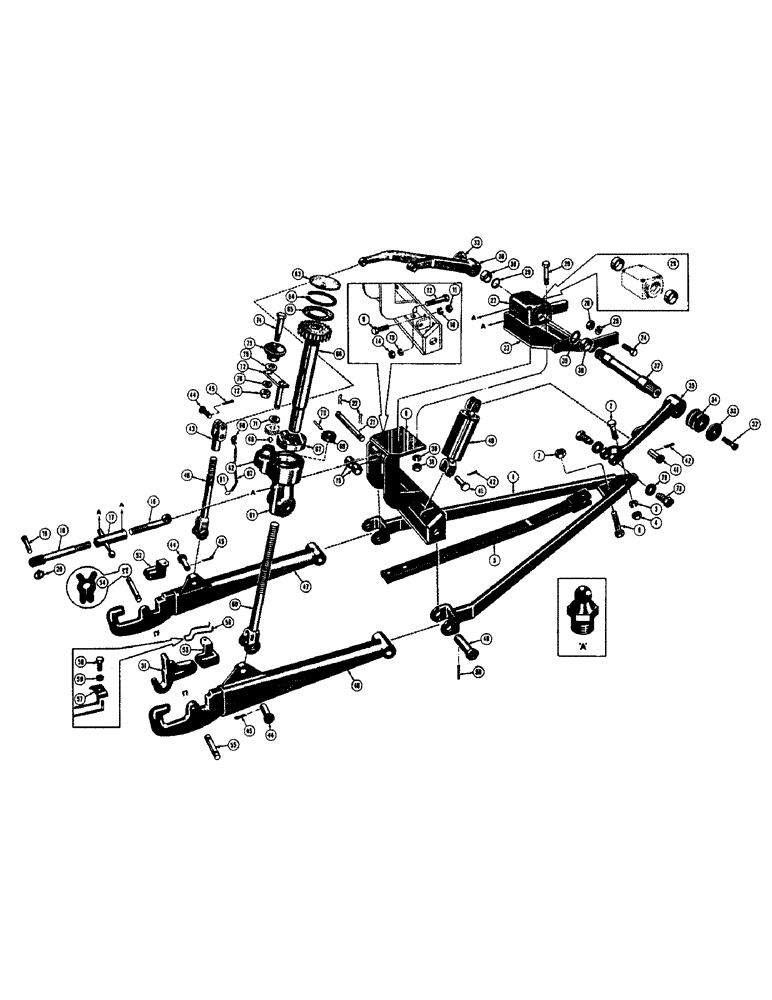

Запчасти Case 310C (138) - EAGLE HITCH (WITH RIGID DRAFT ARMS), DRAWBAR AND MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

39775

ARM - mounting, drawbar

1шт.

2

14-1656

HHCS - 1 - 14 NF x 3-1/2

1шт.

3

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

4

25-1116

NUT,1"-14, G5

- hex. (1 - 14 NF)

1шт.

5

39778

SCREW

DRAWBAR - Eagle hitch

1шт.

6

14-1664

BOLT,Hex, 1" - 14 x 4", Gr 5

HHCS - 1 - 14 NF x 4

1шт.

7

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

1шт.

8

39786

PIN

BRACKET - mounting, Eagle hitch

1шт.

9

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.

12

14-872

X,Hex, 1/2" - 20 x 4 1/2", Gr 5

HHCS - 1/2 - 20 NF x 4-1/2

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

15

D20483

SPACER - mounting, front depth adjusting screw

2шт.

16

A7240

SCREW - depth adjusting, front (L.H. thread), turnbuckle

1шт.

17

A7821

TURNBUCKLE - depth adjusting screw

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), turnbuckle

2шт.

18

D20622

SCREW - depth adjusting, rear (R.H. thread), turnbuckle

1шт.

19

V14209

X

PIN - mast, turnbuckle

1шт.

20

SV2433

X

PIN - keeper, mast pin, turnbuckle

1шт.

21

39798

BRACKET

PIN - yoke, depth adjusting screw, turnbuckle

1шт.

22

VC1419

X

PIN - hair pin cotter, turnbuckle

2шт.

23

NLS

NO LONGER SERVICED

STRAP - hanger, rockshaft housing

1шт.

24

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8 - 18 NF x 2-3/4, rockshaft and housing

4шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rockshaft and Housing 5/8"

4шт.

26

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF), rockshaft and housing

4шт.

27

D20418

X

HOUSING - rockshaft (Use A20907)

1шт.

28

O9235AB

X

BUSHING - rockshaft housing

2шт.

A20907

X

HOUSING - rockshaft (See D20418)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), rockshaft and housing

2шт.

29

14-1080

BOLT,Hex, 5/8" - 18 x 5", Gr 5

HHCS - 5/8 - 18 NF x 5, rockshaft and housing

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rockshaft and Housing 5/8"

4шт.

31

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF), rockshaft and housing

4шт.

32

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- maching, flat head (3/8" - 16 NC x 1"), rockshaft and housing

2шт.

33

O9239AB

PLATE - lock, rockshaft lift arm, and housing

2шт.

34

O9238AB

SHIM - rockshaft adjusting (No. 30 gauge), and housing

3шт.

35

D20417

ARM - rockshaft lift, R.H., and housing

1шт.

36

O10929AB

ARM - rockshaft lift, L.H., and housing

1шт.

37

A20911

ROCKSHAFT - Eagle hitch, and housing

1шт.

38

O9237AB

X

SPACER - rockshaft and housing

2шт.

39

A20908

SEAL - "O" ring, rockshaft and housing

2шт.

40

A8282

CYLINDER - Eagle hitch, hydraulic (See figure 152 for breakdown), rockshaft and housing

1шт.

41

O8350AB

PIN - mounting, hydraulic cylinder, rockshaft and housing

2шт.

42

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Rrockshaft and housing 1/4" x 1 1/2"

2шт.

43

A7760

YOKE - L.H. link, upper, rockshaft and housing

1шт.

44

O9213AB

X

PIN - leveling screw mounting (L.H. upper and lower, also R.H. lower), rockshaft and housing

3шт.

45

VC1419

X

PIN - hair pin cotter, rockshaft and housing

3шт.

46

39805

SEAL

LINK - lift, L.H., rigid draft arms

1шт.

47

D20432

ARM - draft, L.H., rigid, and lift links

1шт.

48

D20431

ARM - draft, R.H., rigid and lift links

1шт.

49

39799

RING

PIN - pivot, draft arm, rigid, and lift links

2шт.

50

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Pivot pin 1/4" x 2 1/4", Slotted

2шт.

51

6167A

X

LATCH - draft arm

2шт.

52

6169A

X

LOCK - latch, L.H. draft arm

1шт.

53

6168A

X

LOCK - latch, R.H. draft arm

1шт.

54

O9416AB

X

SNAP RING - retaining, latch pin

4шт.

55

O9415AB

X

PIN - latch, draft arm

2шт.

56

O10280AB

X

SPRING - latch, draft arm

2шт.

57

A8131

X

PLATE - draft arm latch spring

2шт.

58

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

59

92-5

LOCK WASHER,5/16"

2шт.

60

39804

LINK - lift, R.H. leveling screw (Lower)

1шт.

61

G1044

HOUSING - gear, adjusting screw

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

62

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (Vented) (1/8" NPT)

1шт.

63

41-40

PLUG,Exp, 2 1/2"

- Welsh, 2-1/2" dia.

1шт.

64

O8582AB

X

SNAP RING - retaining, leveling screw gear

1шт.

65

O265BL

WASHER - leveling screw gear (1-15/16" I.D. x 2-1/2" O.D. x 14 gauge)

1шт.

66

G13390

TUBE

GEAR AND TUBE - leveling screw

1шт.

67

G10489

THRUST BEARING

BEARING - thrust, leveling screw

1шт.

68

O8635AB

X

BALL - crank bearing, 1/4" dia.

1шт.

69

G10464

GEAR - adjusting screw crank

1шт.

70

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Crank gear 5/32" x 7/8", Slotted

1шт.

71

O5087A

X

WASHER - thrust, crank gear

1шт.

72

G13119

CRANK - adjusting screw

1шт.

73

O4995AB

X

KNOB - adjusting screw crank

1шт.

74

VT2964

BOLT - mounting, knob

1шт.

75

G10488

WASHER - thrust, adjusting crank

1шт.

76

92-6

LOCK WASHER,3/8"

1шт.

77

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

78

O9214AB

X

PIN - pivot, adjusting screw

2шт.

79

O164B

X

WASHER - pivot pin, 29/32" I.D. x 1-3/8" O.D.

1шт.

80

O10953AB

RETAINER - chain

1шт.

81

O9191AB

X

"S" HOOK - chain

2шт.

82

D20505

CHAIN

1шт.
