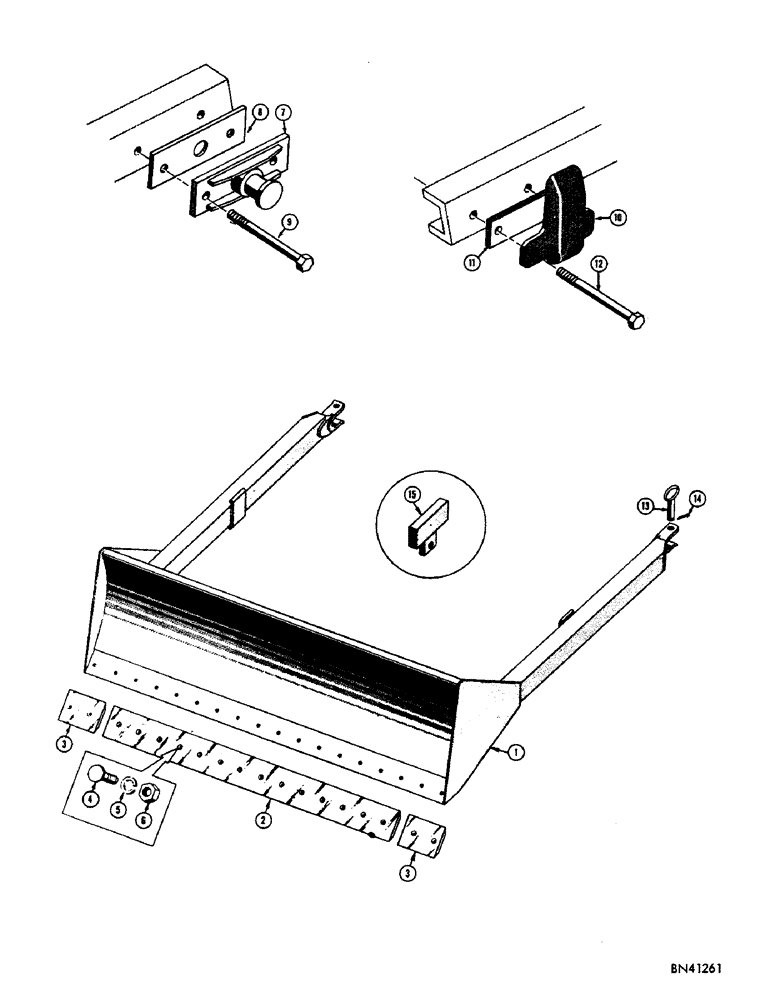

Запчасти Case 310C (116) - HIGH LIFT BULLDOZER (4 ROLLER TRACK) (05) - UPPERSTRUCTURE CHASSIS

1

D23343

MOLDBOARD AND PUSHBEAM

1шт.

2

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

3

38150

EDGE

BLADE - cutting, end

2шт.

4

19-832

BOLT

- plow, no. 3 head (1/2" - 13 NC x 2")

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

18шт.

7

D23341

BRACKET - pivot, dozer attaching

2шт.

8

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

- pivot bracket

2шт.

9

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16 NF x 12

4шт.

10

33961

CONNECTING LINK

PLATE - rub, dozer

2шт.

11

34047

LEVER

SPACER - rub plate

2шт.

12

16-12192

BOLT (MACHINE)

HHCS - 3/4 - 16 NF x 12

4шт.

13

33180

POINT

PIN - push beam to pivot bracket

2шт.

14

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

15

33676

DRAWBAR SUPPORT

LIMIT - leaf spring

2шт.
