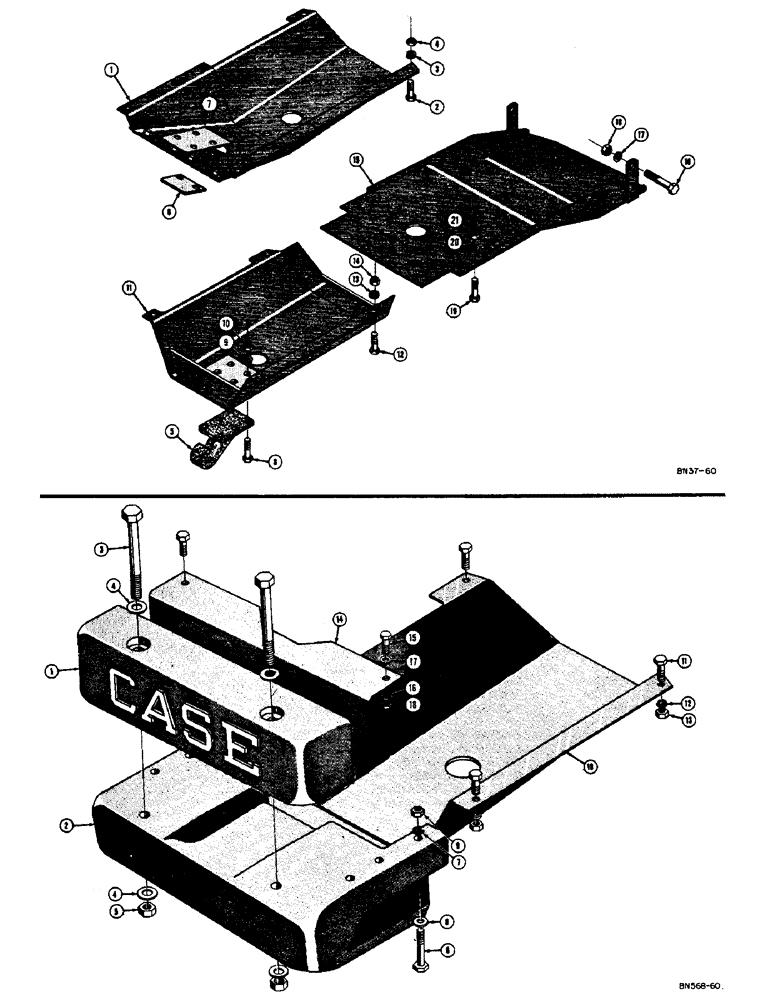

Запчасти Case 310C (078) - PULL HOOK, CRANKCASE GUARD, AND TRANSMISSION GUARD (05) - UPPERSTRUCTURE CHASSIS

1

D26694

GUARD - crankcase

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

3

92-8

LOCK WASHER,1/2"

10шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

10шт.

5

10940

HOOK

- pull

1шт.

6

36718

BRAKE BAND

SHIM - mounting, pull hook

1шт.

7

32123

LEVER

PLATE - doubler, pull hook

1шт.

8

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

11

D21161

GUARD - crankcase (Used with front weights and transmission guard)

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

4шт.

15

D21130

GUARD - transmission

1шт.

16

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

19

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

1

R26023

WEIGHT

COUNTERWEIGHT - upper, front, bumper, and special crankcase guard

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower, front, bumper, and special crankcase guard

1шт.

3

14-10124

HHCS - 5/8 - 18 NF x 7-3/4, front counterweight, bumper, and special crankcase guard

2шт.

4

95-10

WASHER,5/8"

- standard wrot (), front counterweight, bumper, and special crankcase guard 5/8"

4шт.

5

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF), front counterweight, bumper, and special crankcase guard

2шт.

6

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Front counterweight, bumper, and special crankcase guard Hex, 1/2"-13 x 3 1/2", G5

6шт.

7

92-8

LOCK WASHER,1/2"

front counterweight, bumper, and special crankcase gurad 1/2"

6шт.

8

95-8

WASHER,1/2"

- standard wrot, front counterweight, bumper, and special crankcase gurad 1/2"

6шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC), front counterweight, bumper, and special crankcase gurad

6шт.

10

D26696

GUARD - crankcase, front counterweight, bumper, and guard

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Front counterweight, bumper, and special crankcase guard Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

front counterweight, bumper, and special crankcase guard 1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC), front counterweight, bumper, and special crankcase guard

4шт.

14

D23283

BUMPER - front counterweight, bumper, and special crankcase guard

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Front counterweight, bumper, and special crankcase guard Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

front counterweight, bumper, and special crankcase guard 1/2"

2шт.

17

95-8

WASHER,1/2"

- standard wrot, front counterweight, bumper, and special crankcase guard 1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC), front counterweight, bumper, and special crankcase guard

2шт.
