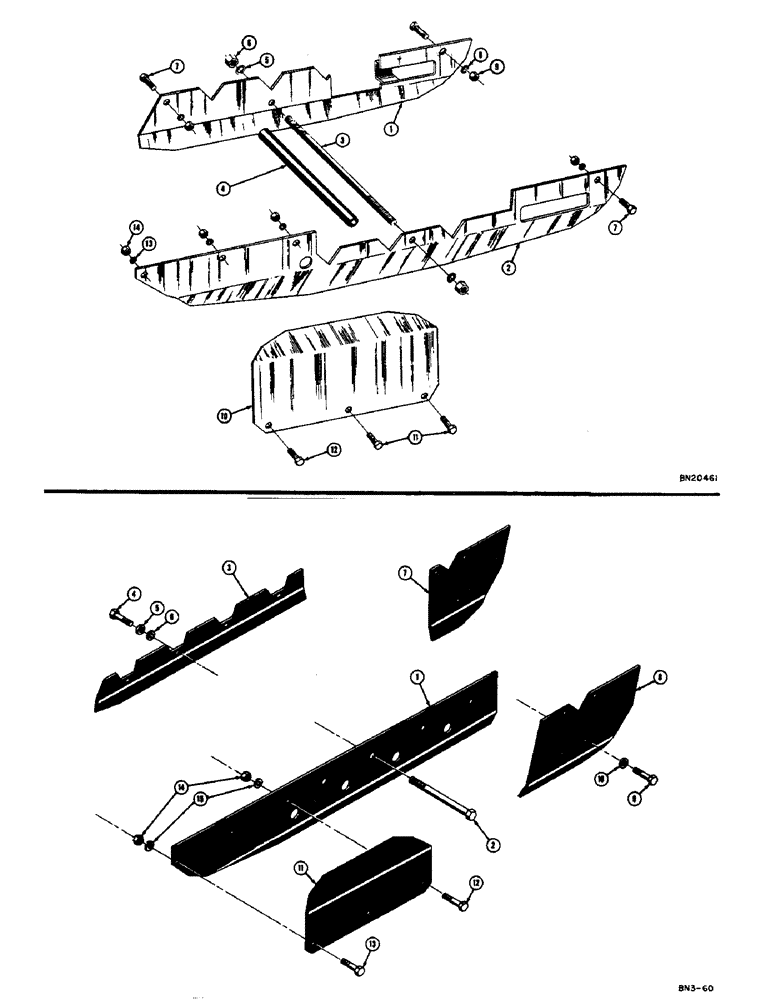

Запчасти Case 310C (076) - ROCK GUARD (3 ROLLER TRACK), ROCK GUARD (4 ROLLER TRACK) (05) - UPPERSTRUCTURE CHASSIS

1

32266

ROCK GUARD - inner, R.H.

1шт.

32267

ROCK GUARD - inner, L.H.

1шт.

2

32264

ROCK GUARD - outer, R.H.

1шт.

32265

ROCK GUARD - outer, L.H.

1шт.

3

32271

STUD - 1/2" - 20 NF x 11-3/4"

2шт.

4

38501

SPACER - pipe

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.

7

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

6шт.

8

92-8

LOCK WASHER,1/2"

6шт.

9

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

6шт.

10

32296

PLATE - sprocket guard

2шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

12

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

2шт.

13

92-8

LOCK WASHER,1/2"

6шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

6шт.

1

33952

SUPPORT

ROCK GUARD - outer R.H.

1шт.

33953

BRACKET

ROCK GUARD - outer, L.H.

1шт.

2

D23459

HHCS - 3/4 - 16 NF x 11-1/8

8шт.

3

33950

CONNECTING LINK

ROCK GUARD - inner, R.H.

1шт.

33951

HYDRAULIC PUMP

ROCK GUARD - inner, L.H.

1шт.

4

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

8шт.

5

195-33

WASHER,1/2"

- plain (1/2)

8шт.

6

92-8

LOCK WASHER,1/2"

8шт.

7

33892

ROCK GUARD - inner, idler (R.H.)

1шт.

33893

ROCK GUARD - inner, idler (L.H.)

1шт.

8

33890

WASHER

ROCK GUARD - outer, idler (R.H.)

1шт.

33891

GROOVED BUSHING

ROCK GUARD - outer, idler (L.H.)

1шт.

9

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2 - 20 NF x 2

8шт.

10

195-33

WASHER,1/2"

- plain (1/2)

8шт.

11

32296

PLATE - sprocket guard

2шт.

12

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

2шт.

13

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

14

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

6шт.

15

92-8

LOCK WASHER,1/2"

6шт.
