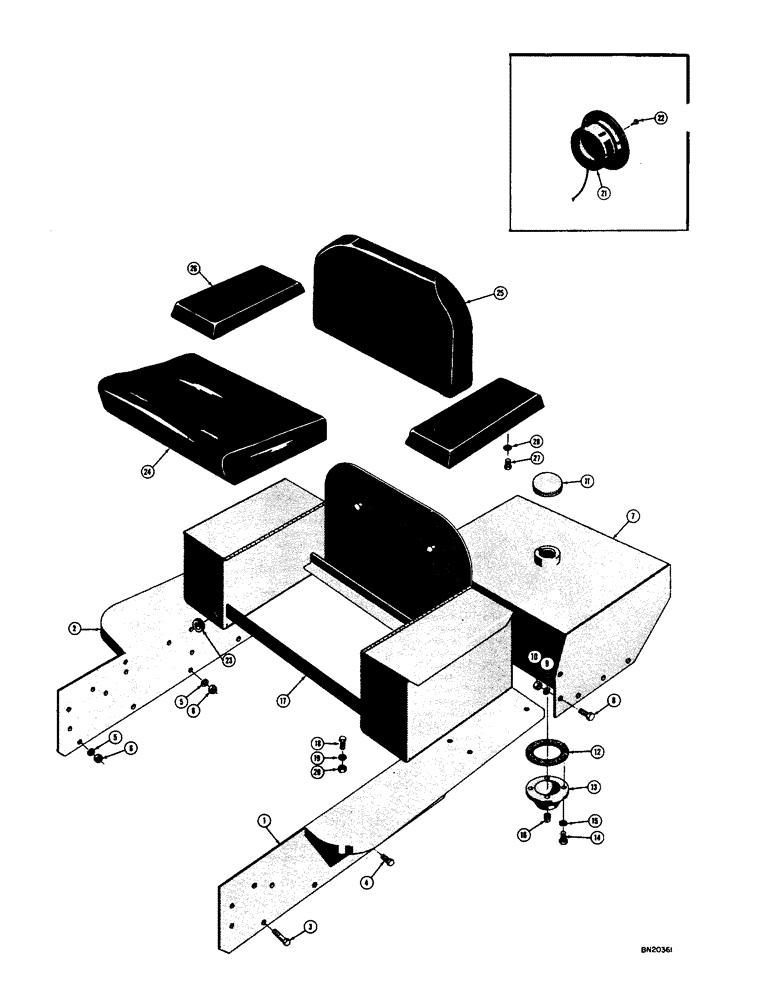

Запчасти Case 310C (074) - FENDERS, FUEL TANK, SEAT AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

38488

HYD CONNECTOR

FENDER - L.H., standard

1шт.

38746

DECAL

FENDER - L.H., loader models only

1шт.

D21125

FENDER - L.H., 36" gauge tractor only

1шт.

2

38489

HYD CONNECTOR

FENDER - R.H., standard

1шт.

38747

FENDER - R.H., loader models only

1шт.

D21124

FENDER - R.H., 36" gauge tractor only

1шт.

3

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

5шт.

4

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

2шт.

5

92-8

LOCK WASHER,1/2"

7шт.

6

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

7шт.

7

38802

WASHER

TANK - fuel, 8 gal. (Up to serial no. 3010010) Use D24866

1шт.

When installing replacement fuel tank on models up to S/N 3010010, it may be necessary to relocate the angle braces on the seat.

1шт.

D24866

TANK - fuel, 10 gal. (Serial no. 3010010 and after)

1шт.

When installing replacement fuel tank on models up to S/N 3010010, it may be necessary to relocate the angle braces on the seat.

1шт.

8

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

10шт.

9

92-6

LOCK WASHER,3/8"

10шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

10шт.

11

CASE10731

FILLER CAP

CAP - filler, fuel tank

1шт.

12

35621

GASKET

- drain cover

1шт.

13

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - drain, fuel tank

1шт.

14

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head

1шт.

17

D21051

SEAT AND BACK ASSY

1шт.

18

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

6шт.

19

92-6

LOCK WASHER,3/8"

6шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

6шт.

21

30903

LIGHT - tail, 12 volt

1шт.

33686

BULB

- tail light (Not shown)

1шт.

22

187-29

SCREW

- self tapping, tail light

3шт.

23

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, battery cable

1шт.

24

D27691

X

CUSHION - seat

1шт.

25

D27690

CUSHION - seat back

1шт.

26

D27693

ARMREST

CUSHION - arm rest

2шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
