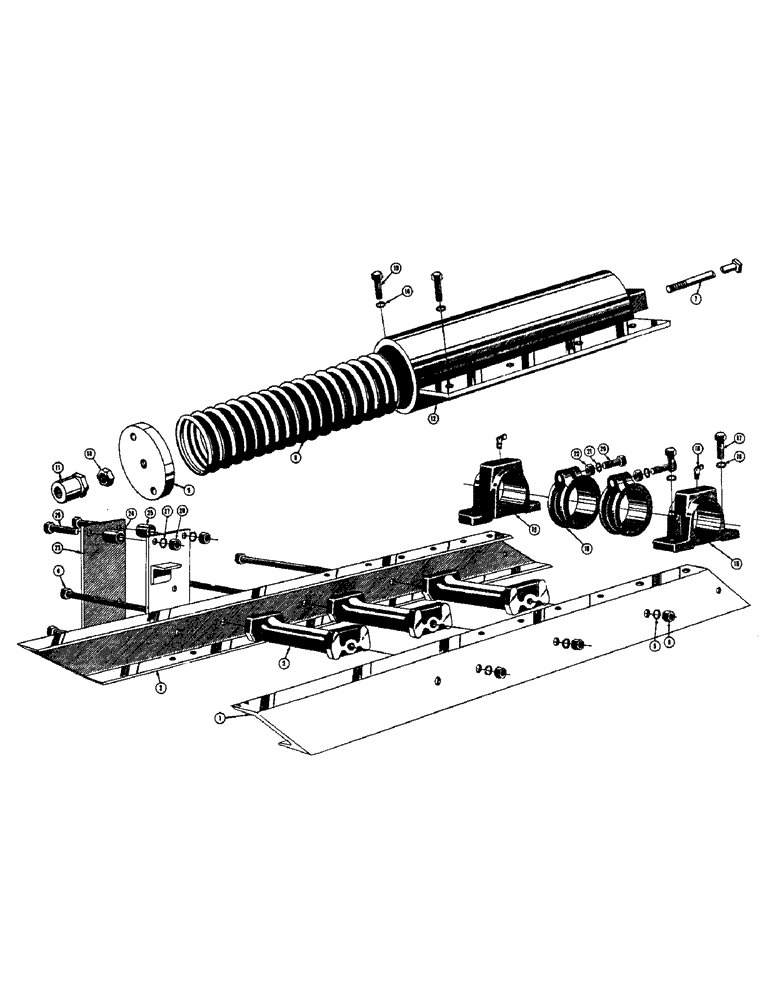

Запчасти Case 310C (066) - TRACK FRAME AND RECOIL SPRING (3 ROLLER TRACK) (04) - UNDERCARRIAGE

1

31845

FITTING

CHANNEL - track, outer (R.H.)

1шт.

31846

CHANNEL - track, outer (L.H.)

1шт.

2

31847

CHANNEL - track, inner (R.H.) 42" gauge and wider tractors

1шт.

33503

CHANNEL - track, inner (R.H.) 36" gauge tractor

1шт.

31848

COLLAR

CHANNEL - track, inner (L.H.) 42" gauge and wider tractors

1шт.

33504

BELT

CHANNEL - track, inner (L.H.) 36" gauge tractor

1шт.

3

NLS

NO LONGER SERVICED

SPACER - track frame

6шт.

4

D23459

HHCS - 3/4" - 16 NF x 11-1/8"

6шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

6

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

6шт.

30478

SPRING - recoil, R.H. (Complete)

1шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting (1" - 14 NF)

1шт.

D20845

ADJUSTMENT SCREW

- track adjusting (1" - 8 NC)

1шт.

8

D26084

SPRING

- recoil

1шт.

9

32096

NUT - tension adjusting (1" - 14 NF)

1шт.

D20844

NUT

- tension adjusting (1" - 8 NC)

1шт.

10

25-1516

NUT,Jam, 1"-14, G5

- hex. jam (1" - 14 NF)

1шт.

25-1416

NUT,Jam, 1"-8, G5

- hex. jam (1" - 8 NC)

1шт.

11

51200219

NUT

- track adjusting (1" - 14 NF)

1шт.

D20843

NUT,1" - 8

- track adjusting (1" - 8 NC)

1шт.

12

32140

HOUSING - recoil spring, R.H.

1шт.

30479

DECAL

SPRING - recoil, L.H. (Complete)

1шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting (1" - 14 NF)

1шт.

D20845

ADJUSTMENT SCREW

- track adjusting (1" - 8 NC)

1шт.

8

D26084

SPRING

- recoil

1шт.

9

32096

NUT - tension adjusting (1" - 14 NF)

1шт.

D20844

NUT

- tension adjusting (1" - 8 NC)

1шт.

10

25-1516

NUT,Jam, 1"-14, G5

- hex. jam (1" - 14 NF)

1шт.

25-1416

NUT,Jam, 1"-8, G5

- hex. jam (1" - 8 NC)

1шт.

11

51200219

NUT

- track adjusting (1" - 14 NF)

1шт.

D20843

NUT,1" - 8

- track adjusting (1" - 8 NC)

1шт.

12

32141

FITTING

HOUSING - recoil spring, L.H.

1шт.

13

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

16шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

15

D27536

BLOCK

- pivot

4шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 67-1/2 degrees (1/4" NPT)

4шт.

17

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4 - 16 NF x 1-3/4

8шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

19

15101

CLAMP - mounting, track frame

4шт.

20

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8 - 18 NF x 3

4шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

22

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.

23

32181

PLATE - forward support (42" gauge and wider tractors)

2шт.

33498

PLATE - forward support (36" gauge tractor)

2шт.

24

1954811C1

BALL

SPACER - forward support plate

2шт.

25

32332

SPACER - forward support plate

6шт.

26

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - (5/8 - 18 NF x 3)

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

28

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

8шт.
