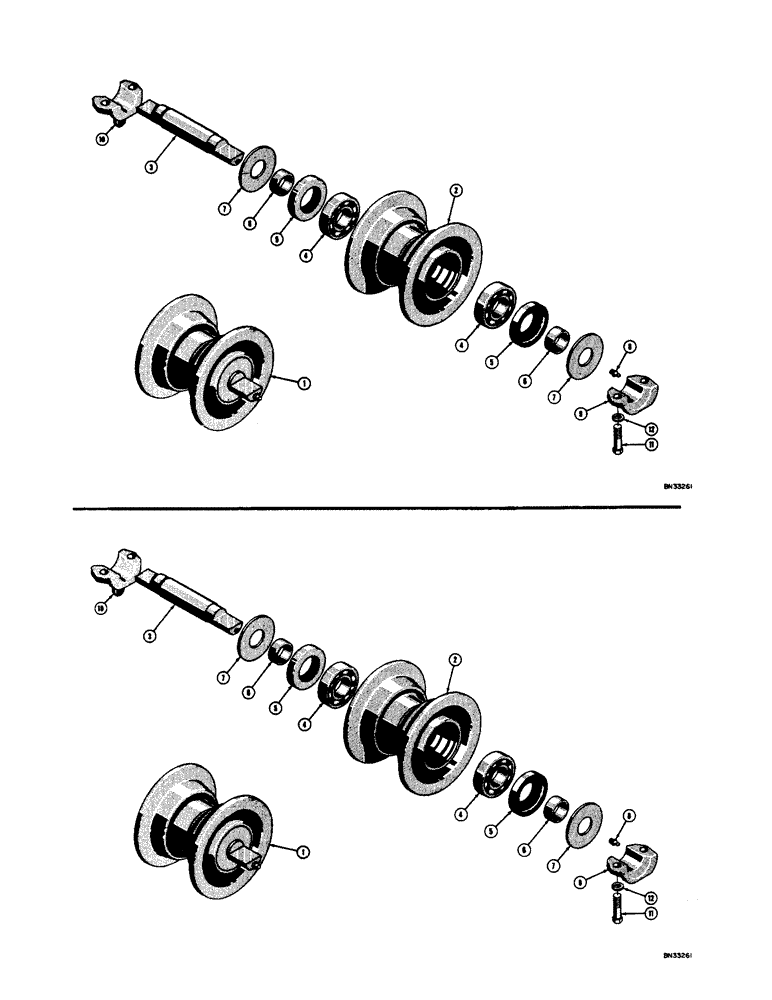

Запчасти Case 310C (064) - TRACK ROLLER (04) - UNDERCARRIAGE

1

32032

X

ROLLER - track, complete (See 37431)

6-8шт.

2

32076

BEARING, ROLLER

HUB - track roller

1шт.

5923

KIT - track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

VT2893

X

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - oil

2шт.

6

32051

SPACER

- bearing

2шт.

7

30704

BEARING COVER

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

9

32055

BOX

- track roller (12 used with 3 roller track; 8 used with 4 roller track)

12шт.

10

51200225

CAP

BOX - track roller (Inner) (4 roller track only)

8шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

24шт.

12

92-8

LOCK WASHER,1/2"

24шт.

1

37431

OIL SEAL

ROLLER - track, rear (Optional - Backhoe models only)

2шт.

2

31828

HUB - track roller (optional)

1шт.

R3308

KIT - track roller (optional)

1шт.

3

32056

SHAFT

- track roller (optional)

1шт.

4

40201

BALL BEARING,1.375" ID x 2.8346" OD x 1.0625"

- ball, track roller (optional)

2шт.

5

40633

PLATE

SEAL - oil, track roller (optional)

2шт.

6

32051

SPACER

- bearing, track roller (optional)

2шт.

7

30704

BEARING COVER

- bearing, track roller (optional)

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), track roller (optional)

2шт.

9

32055

BOX

- track roller (optional)

4шт.

10

51200225

CAP

BOX - track roller (optional)

4шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2, track roller (optional)

8шт.

12

92-8

LOCK WASHER,1/2"

track roller (optional) 1/2"

8шт.
