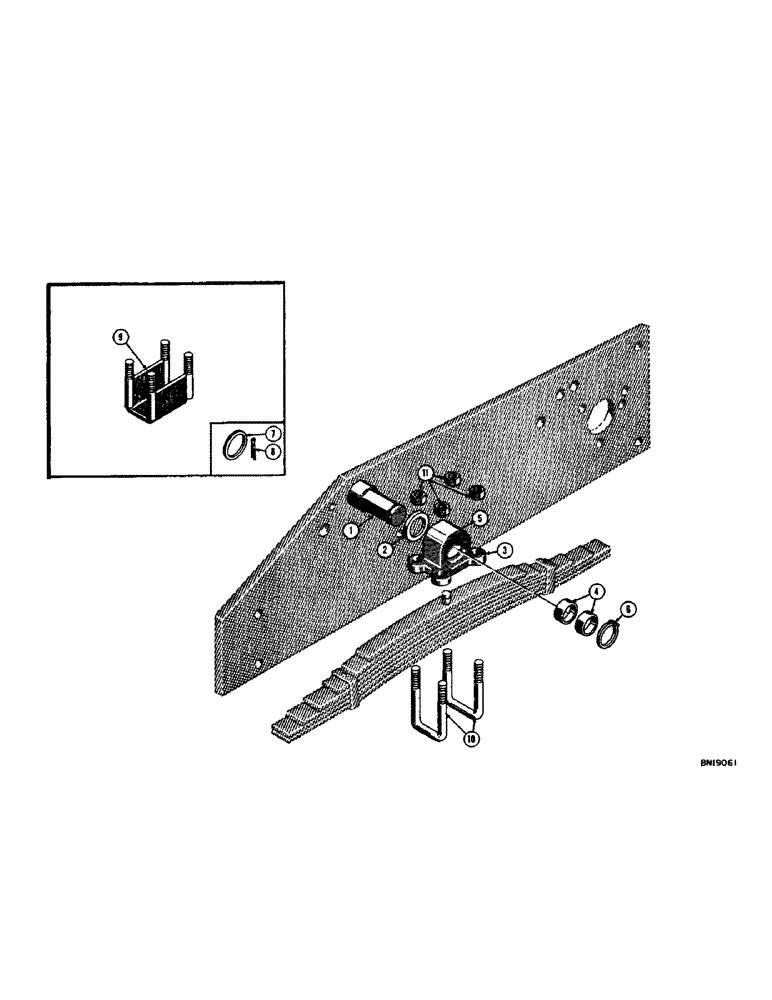

Запчасти Case 310C (058[1]) - D10887 SPRING SUSPENSION KIT (04) - UNDERCARRIAGE

1

D25531

STUD - pivot

2шт.

2

D25532

WASHER - special (1-17/64" I.D. x 1-3/4" O.D. x 1/4" thick)

2шт.

3

D25525

BRACKET - pivot, leaf spring

2шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- pivot bracket

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

6

D26918

SNAP RING,#125, Ext

Ring, Snap, , pivot bracket (see 25535 and 132-152) #125, Ext

2шт.

7

D25535

WASHER - retaining, pivot bracket (See D26918)

2шт.

Some kits include (2) D25535 washers and (2) 132-152 cotter pins in lieu of (2) D26918 snap rings.

1шт.

8

132-152

PIN

- cotter, 1/4" x 1-3/4" (See D26918)

2шт.

Some kits include (2) D25535 washers and (2) 132-152 cotter pins in lieu of (2) D26918 snap rings.

1шт.

9

D25528

BRACKET - retainer, leaf spring (Use 2 - D26725 "U" bolts)

2шт.

10

D26725

"U" BOLT - leaf spring to pivot bracket

4шт.

11

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NF)

8шт.
