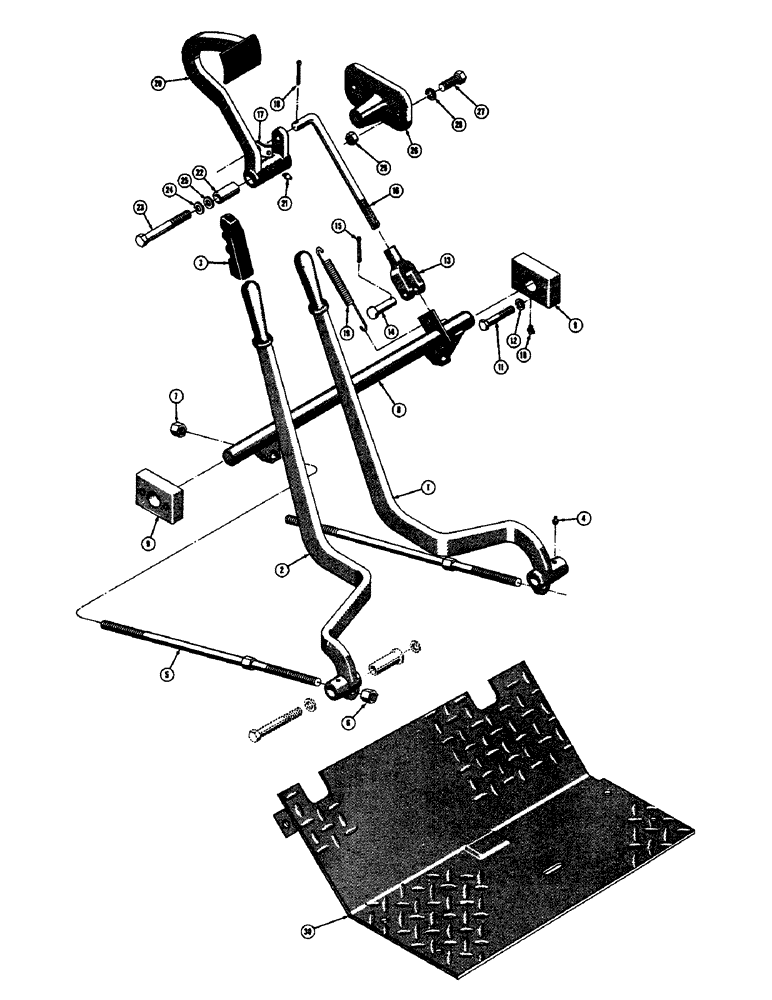

Запчасти Case 310C (048) - FOOT BRAKE CONVERSION PARTS (03) - TRANSMISSION

1

D26468

LEVER - steering, R.H.

1шт.

2

D26469

LEVER - steering, L.H.

1шт.

3

31400

CLAMP

GRIP - rubber, steering lever

2шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, drive type

2шт.

5

D25264

ROD - brake, Serial Range: shaft-transmission

2шт.

6

11471

NUT

- steering rod

2шт.

7

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF)

2шт.

8

D25240

SHAFT - brake

1шт.

9

D25269

BLOCK

- bearing, brake shaft

2шт.

10

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

2шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - end, adjustable (1/2" - 20 NF)

1шт.

14

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

15

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

16

D25249

ROD

- brake, Serial Range: pedal-shaft

1шт.

17

NLS

NO LONGER SERVICED

- spring, brake pedal return

1шт.

18

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

19

11469

SPRING

- return, brake pedal

1шт.

20

D25210

PEDAL - brake

1шт.

21

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, drive type

1шт.

22

11031

SPACER

BUSHING - brake pedal

2шт.

23

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

HHCS - brake pedal to mounting bracket (5/8 - 11 NC x 4-1/2)

1шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

95-10

WASHER,5/8"

- standard wrot () 5/8"

1шт.

26

11025

BELT, TRANSMISSION

BRACKET - mounting, brake pedal

1шт.

27

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

HHCS - 7/16 - 20 NF x 1-1/4

2шт.

28

92-7

LOCK WASHER,7/16"

2шт.

29

25-117

NUT,7/16"-20, G5

- hex. (7/16 - 20 NF)

2шт.

30

D21104

PLATE - floor, front

1шт.
