Запчасти Case 310C (044[1]) - DRIVESHAFT AND UNIVERSAL JOINTS (03) - TRANSMISSION

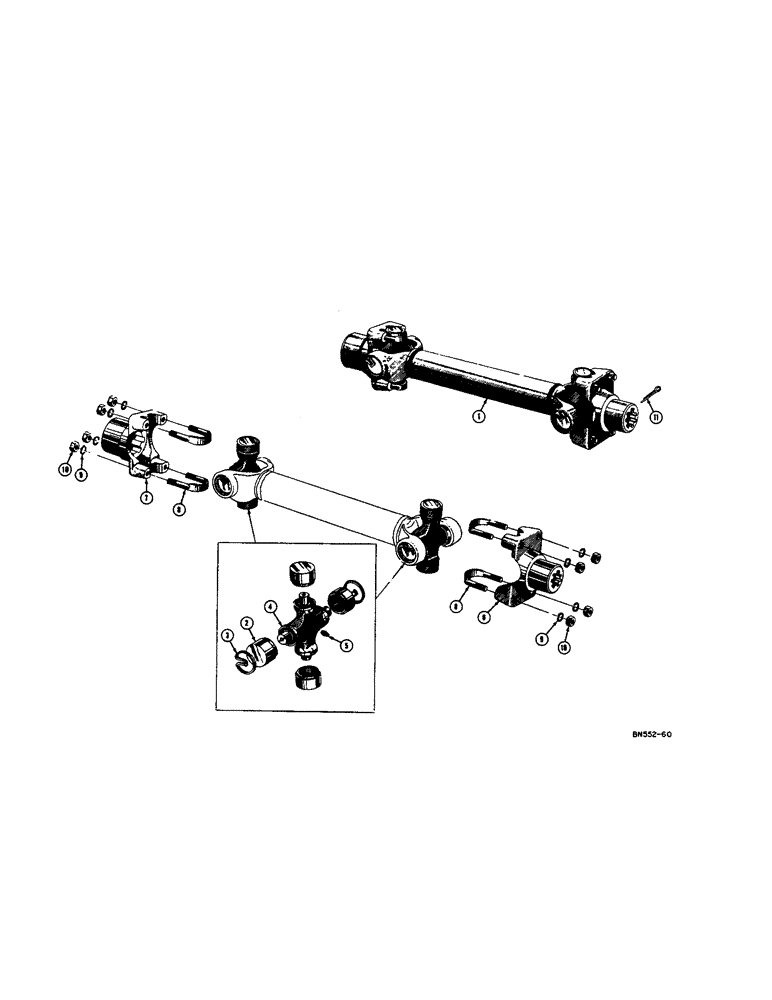

Схема запчастей Case 310C - (044[1]) - DRIVESHAFT AND UNIVERSAL JOINTS (03) - TRANSMISSION

Артикул

Название

Примечание

Количество

1

36101

SHAFT - universal

1шт.

D26204

BEARING ASSY

KIT - journal and bearing

2шт.

2

D26203

BEARING CAP

BEARING - journal

4шт.

3

11256

SNAP RING

SNAP RING - journal bearing

2шт.

4

D26205

CROSS - journal

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

6

11259

FORK

END - yoke, rear

1шт.

7

11258

YOKE

END - yoke, front

1шт.

8

11260

"U" BOLT - yoke end mounting

4шт.

9

92-5

LOCK WASHER,5/16"

8шт.

10

48161

NUT - hex., light (5/16 - 24 NF)

8шт.

11

132-80

HARDWARE

PIN - cotter, 5/32" x 2-1/2"

1шт.

Выбрано товаров: 12
