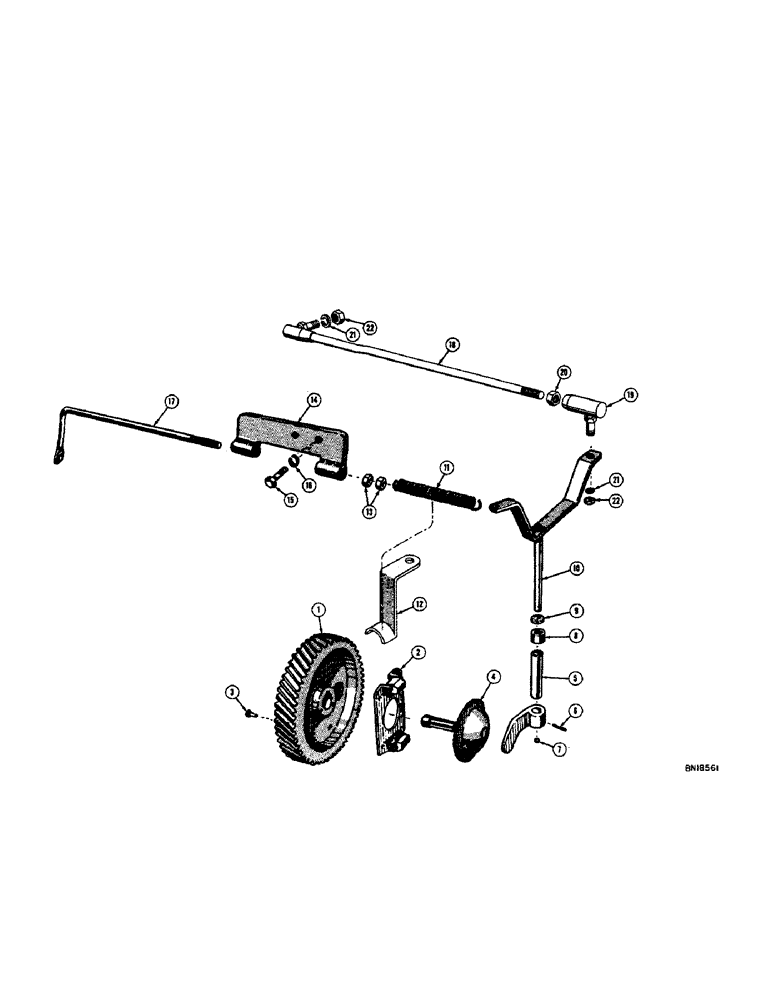

Запчасти Case 310C (024[1]) - GOVERNOR (02) - FUEL SYSTEM

1

VTA857

X

GEAR - camshaft timing

1шт.

2

VTA856

WEIGHT - governor

1шт.

3

45-38

RIVET,But Hd, 3/16" x 1/2"

- round head, 3/16" x 1/2"

4шт.

4

VTA855

X

SHAFT - governor

1шт.

5

VT3288

X

SPACER - thrust, governor shaft

1шт.

6

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

7

A7456

X

BALL - thrust, governor arm (3/16" dia.)

1шт.

8

VT3351

X

BEARING - governor shaft

1шт.

9

VT3259

X

SEAL - dust, felt

1шт.

10

VTA850

X

LEVER AND ARM ASSY - governor

1шт.

11

VT3064

SPRING - governor speed control

1шт.

12

VT5569

DAMPER - governor spring

1шт.

13

131-412

NUT - governor rod adjusting, zinc plated (7/16" - 20 NF)

2шт.

14

VT403

GUIDE - governor control rod

1шт.

15

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

G11203

ROD - governor control

1шт.

18

G45222

ROD

- carburetor throttle

1шт.

19

G45711

X

BALL JOINT - throttle rod

1шт.

20

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

1шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

2шт.
