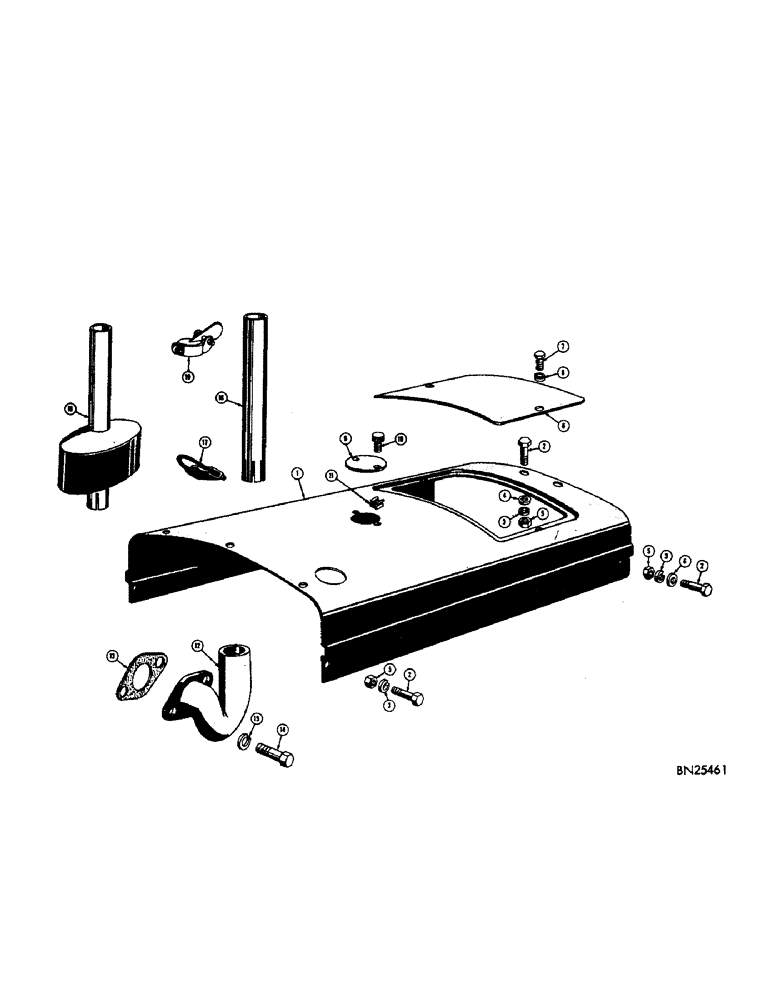

Запчасти Case 310C (036) - HOOD AND EXHAUST SYSTEM, AIR CLEANER (01) - ENGINE

1

D21313

HOOD - engine

1шт.

2

174-208

SCREW - machine, Philips head (3/8" - 24 NF x 3/4") Zinc plated

9шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

4

195-525

WASHER,3/8", SAE

- plain (13/32" I.D. x 13/16" O.D. x 1/16" thick)

4шт.

5

129-123

NUT,3/8"-24, G5

9шт.

6

GI33522

CLIP

COVER - access, instrument panel back

1шт.

7

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

HHCS - zinc plated (1/4" - 28 NF x 1/2")

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

D21310

COVER - access, oil filler cap

1шт.

10

G16716

X

SCREW - knurled head

2шт.

11

131-102

SPRING NUT,Ret, 1/4"-20

Tinnerman (Early production models only) Ret, 1/4"-20

2шт.

12

D21179

ELBOW - exhaust

1шт.

13

G11201

GASKET

- exhaust elbow

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

D23127

PIPE - exhaust

1шт.

17

G13184

CLAMP

- exhaust pipe and muffler

1шт.

18

D21427

MUFFLER - under hood (Optional equipment)

1шт.

19

G45048

CAP

- rain

1шт.
