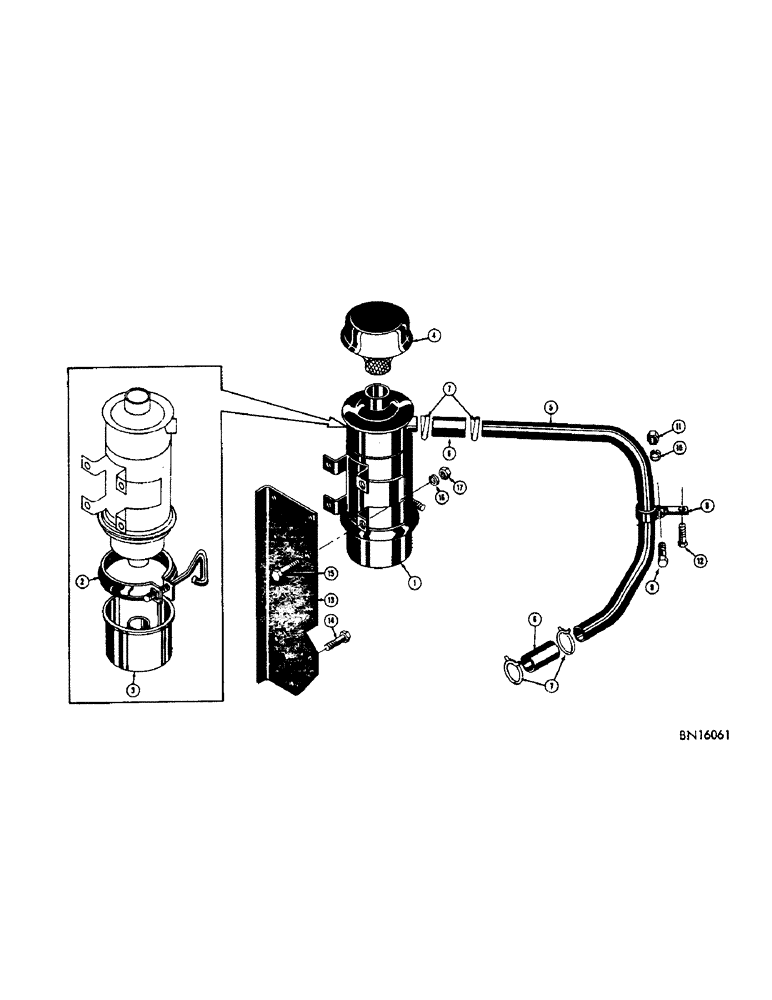

Запчасти Case 310C (036[1]) - AIR CLEANER (01) - ENGINE

1

D21477

CLEANER - air

1шт.

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

10811

STUD

CLAMP - retaining, oil cup

1шт.

3

10810

RETAINER COLLAR

CUP - oil, air cleaner

1шт.

4

VT3812

X

CAP - inlet, air cleaner

1шт.

5

35822

COVER,1.5" OD, 16.187, 13.75" Length

PIPE - air cleaner to carburetor

1шт.

6

VT2185

HOSE

- air cleaner to pipe; also air cleaner, Serial Range: pipe-carburetor

2шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

8

38289

BRACKET - hanger, air cleaner pipe

1шт.

9

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 3/4

1шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

1шт.

12

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2

1шт.

13

D25349

BRACKET - mounting, air cleaner

1шт.

14

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2

3шт.

15

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.
