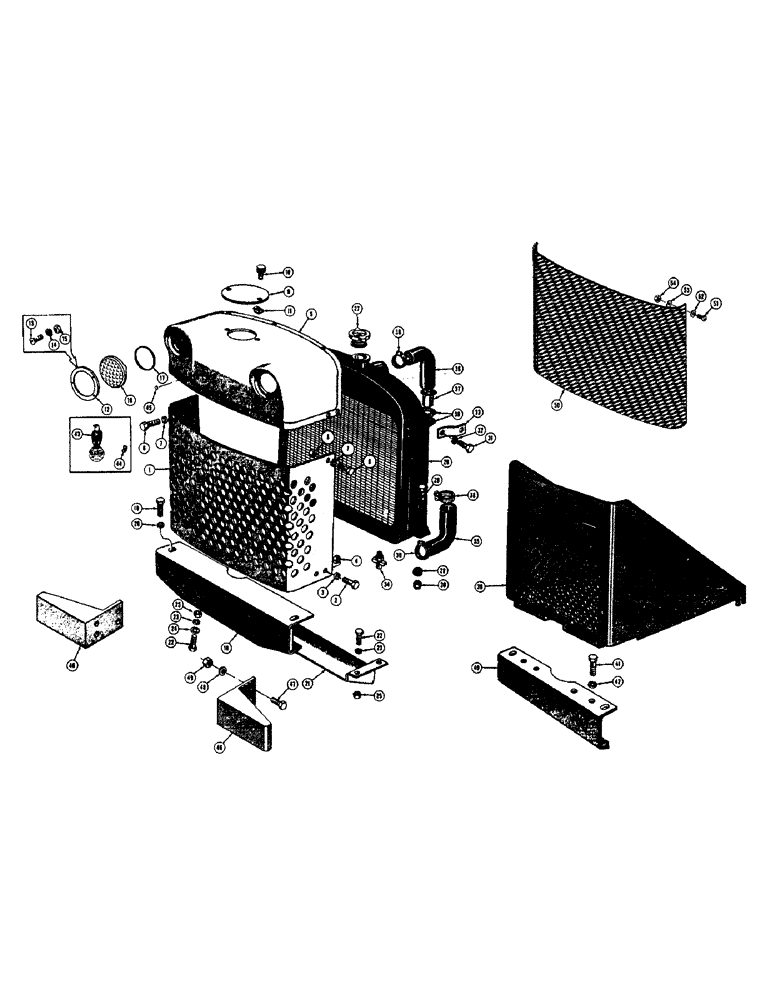

Запчасти Case 310C (034) - RADIATOR, THERMOSTAT, GRILLE CAP, AND GRILLE (01) - ENGINE

1

D21970

GRILLE - radiator

1шт.

2

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

5

D21966

CAP - grille

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

7

92-6

LOCK WASHER,3/8"

5шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

5шт.

9

D21310

COVER - access, radiator cap

1шт.

10

G16716

X

SCREW - knurled head

2шт.

11

131-102

SPRING NUT,Ret, 1/4"-20

Tinnerman Ret, 1/4"-20

2шт.

12

A11275

RING

- headlight retaining

2шт.

13

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- machine, pan head (No. 6 - 32 NC x 3/4") Zinc plated

6шт.

14

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

6шт.

15

129-15

NUT,#6-32

6шт.

16

A11280

LAMP

LIGHT - head, 12 volt

2шт.

17

A11276

GASKET

- head light

2шт.

18

D23068

BUMPER

1шт.

19

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

36979

SPACER

SUPPORT - bumper

1шт.

22

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

25

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

26

D21839

RADIATOR

1шт.

D23733

X

GASKET - radiator, inside filler hole (Use D237320) Not shown

1шт.

27

D23732

X

CAP - pressure, radiator (4 P.S.I.) Use D25826

1шт.

D25826

CAP

- pressure, radiator (7 P.S.I.) See D23732 and D23733

1шт.

28

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

2шт.

29

D23003

SHOCK ABSORBER

WASHER - shock absorbing, radiator

2шт.

30

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

2шт.

31

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

D23002

BRACKET - support, radiator

2шт.

34

217-92

COCK

DRAIN COCK - radiator, special

1шт.

35

D21960

HOSE,1.75" ID x 4.56", SAE 20R4

RADIATOR HOSE, , Outlet, Lower (Gas Models Only) 1.75" ID x 4.56", SAE 20R4

1шт.

36

D21961

HOSE,1.75" ID x 5.13", SAE 20R4

RADIATOR HOSE, , Inlet, Upper (Use D21960) 1.75" ID x 5.13", SAE 20R4

1шт.

37

G10235

THERMOSTAT

1шт.

38

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- radiator hose #36, 1.81/2.75 Type F Worm

5шт.

39

D23236

GUARD - brush, optional equipment (Not applicable on loader models)

1шт.

40

D23232

BUMPER - used with brush guard only

1шт.

41

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

A11492

X

MEDALLION - Case emblem

1шт.

44

A11319

X

CLIP - retainer, medallion

2шт.

45

205-4

X

BUTTON - plug

2шт.

46

D23396

EXTENSION - bumper, optional equipment

2шт.

47

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

8шт.

48

92-8

LOCK WASHER,1/2"

8шт.

49

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

D23230

PLATE - mounting, brush guard (Used with front weights only) optional (Not shown)

1шт.

50

D11170M

SCREEN - grille (Optional equipment)

1шт.

51

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

8шт.

52

95-4

WASHER,1/4"

- standard wrot () 1/4"

8шт.

53

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

54

25-104

NUT,1/4"-20, G5

8шт.
