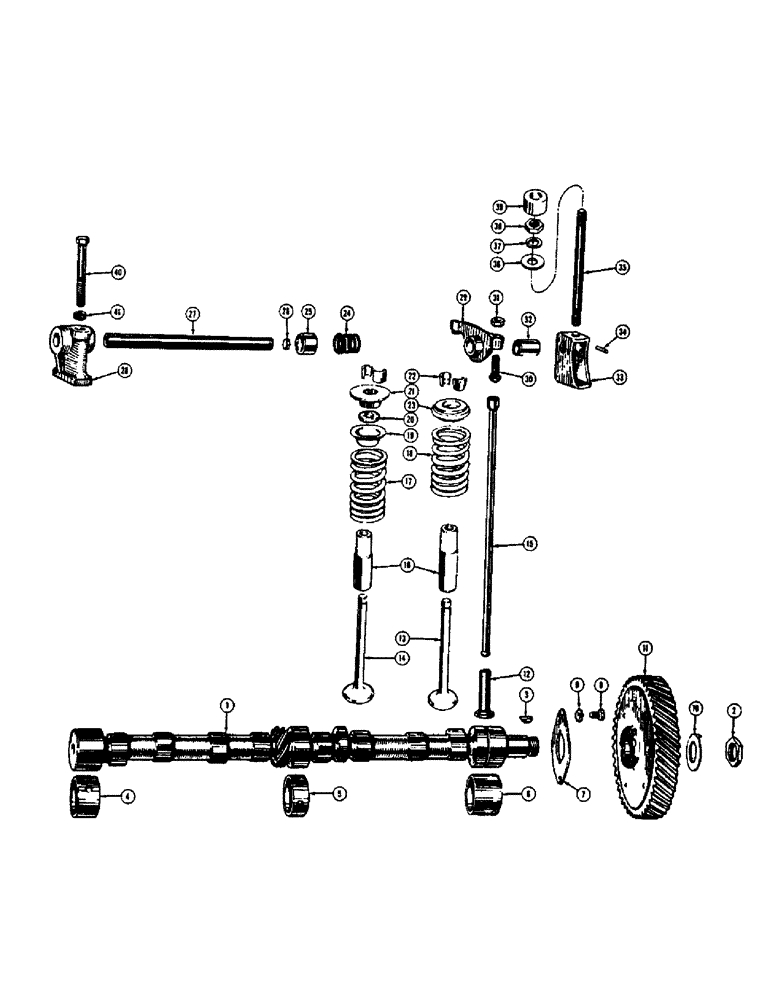

Запчасти Case 310C (014) - CAMSHAFT, VALVES, PUSH RODS, AND GUIDES (01) - ENGINE

1

VTA2716

CAMSHAFT - includes 1 - VT4536 nut (Order G2055 when stock is depleted)

1шт.

G2055

CAMSHAFT

- see VTA2716

1шт.

2

VT4536

X

NUT - camshaft

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

VTA2621

X

BUSHINGS - camshaft, set of 3

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, center

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear

1шт.

7

VT3365

X

PLATE - thrust, camshaft

1шт.

8

VT4500

X

SCREW - thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

10

VT4517

X

LOCK - nut, camshaft

1шт.

11

VTA857

X

GEAR - camshaft (48 tooth) Includes governor weight

1шт.

12

VT3236

X

TAPPET - valve

8шт.

VTA2635

X

VALVES - exhaust, set of 4

1шт.

13

VT3233

X

VALVE - exhaust

4шт.

VTA2634

VALVES - intake, set of 4

1шт.

14

VT3232

X

VALVE - intake

4шт.

15

VTA864

X

ROD - push

8шт.

16

VTA911

X

GUIDES - valve stem, set of 4

2шт.

17

VT3372

SPRING

- intake valve

4шт.

18

G10004

SPRING

- exhaust valve

4шт.

19

VT3378

X

RETAINER - gasket, intake valve stem

4шт.

20

VT3379

X

GASKET - intake valve stem

4шт.

21

VT3235

X

RETAINER - intake valve spring

4шт.

G11929

LOCK

KIT - lock, valve spring retaining (Set of 4)

4шт.

22

VT3234

X

LOCK - retaining, valve spring (Use G11929)

4шт.

23

G11928

CAP

ROTO-CAP - exhaust valve, set of 4

1шт.

24

VT3237

X

SPRING - rocker arm shaft

4шт.

25

VT3238

X

SPACER - rocker arm shaft

2шт.

26

O4404AB

X

PLUG - rocker arm shaft

2шт.

27

VT4540

X

SHAFT - rocker arm

2шт.

28

VT335

BRACKET - center, rocker arm shaft

1шт.

29

C2516AA

X

ARM - rocker, R.H.

1шт.

C2517AA

X

ARM - rocker, L.H.

1шт.

30

O5760AB1

X

SCREW - adjusting, rocker arm

8шт.

31

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam (5/16 - 24 NF)

8шт.

32

O5759AB2

X

BUSHING - rocker arm

8шт.

33

O5753AB1

BRACKET - rocker arm shaft

4шт.

34

139-205

PIN - taper (No. 00 x 3/4") 2/0 x 3/4", Tapered

2шт.

35

VT4562

X

STUD - rocker shaft brackets (3/8" x 4-3/8")

1шт.

VT4563

STUD - rocker shaft brackets (3/8" x 4-3/4")

2шт.

36

VT3291

X

WASHER - stud, valve cover (13/32" I.D. x 1" O.D. x 1/8")

4шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

39

VT4564

X

SPACER - lower, valve cover stud

2шт.

40

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8 - 16 NC x 2-3/4

3шт.

41

92-6

LOCK WASHER,3/8"

3шт.
