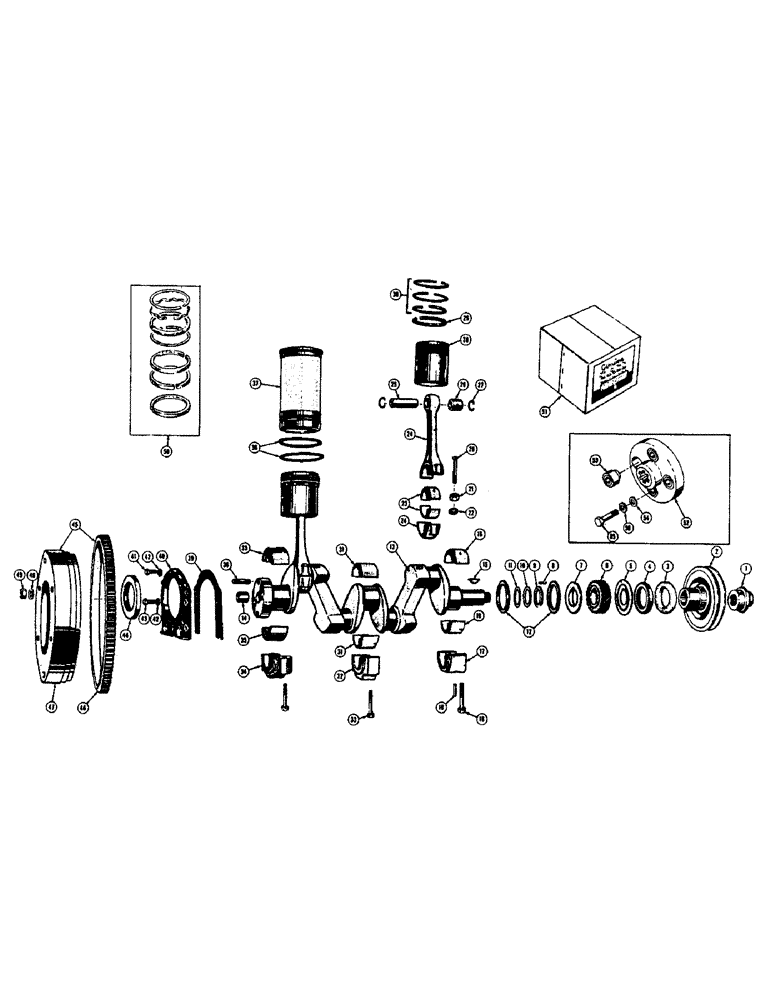

Запчасти Case 310C (010) - FLYWHEEL, CRANKSHAFT, AND PISTONS (01) - ENGINE

1

G11263

NUT

- crankshaft pulley

1шт.

2

G11712

PULLEY

- "V" belt

1шт.

3

VT3380

SEAL - dust, drive pulley

1шт.

4

VT3373

SEAL - oil, crankshaft front

1шт.

5

VT3220

X

SLINGER - oil, crankshaft front bearing

1шт.

6

VT3225

X

GEAR - crankshaft (24 tooth)

1шт.

7

VT3230

X

PLATE - crankshaft thrust

1шт.

8

VT3364

X

PIN - crankshaft thrust washer

2шт.

9

VT3377

X

SPACER - crankshaft thrust

2шт.

10

VT3367

X

SHIM - crankshaft thrust (.002" thick)

1шт.

11

VT3368

X

SHIM - crankshaft thrust (.010" thick)

1шт.

12

VT3376

WASHER

- crankshaft thrust

2шт.

13

G11164

CRANKSHAFT

1шт.

14

VT3370

X

BUSHING - pilot, clutch mainshaft

1шт.

15

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - crankshaft, 1/4" x 1-1/16" (Morton Hi Pro no. 808)

2шт.

16

G11012

KIT

LINERS - crankshaft front bearing, top and bottom half (Standard)

1шт.

G11013

SLEEVE CYLINDER

LINERS - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

G11014

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

G11016

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

17

VT157

CAP - crankshaft front bearing

1шт.

18

G10214

BOLT - place, front bearing cap (1/2" - 13 NC x 3-1/8")

2шт.

19

VT3355

PIN - dowel, front bearing cap to oil pump

2шт.

20

G11701

BOLT

- connecting rod

8шт.

21

VT4506

X

NUT - hex., connecting rod bolt

8шт.

22

G49001

X

NUT - connecting rod bolt (3/8" Palnut)

8шт.

23

G11141

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (Standard)

4шт.

G11142

KIT

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

4шт.

G11143

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.020" undersize)

4шт.

24

G10074

ROD

- connecting (Includes cap, rod, pin, and bolts)

4шт.

G11925

PISTON PIN

KIT - piston wrist pin (Includes 4 - G10233 pins and 8 - VT3363 rings)

1шт.

25

G10233

PIN

- piston wrist (Use G11925)

4шт.

G11921

KIT

- piston pin bushing

1шт.

26

VT3392

X

BUSHING - piston pin (Use G11921)

4шт.

27

VT3363

X

RING - piston pin retainer (See G11925)

8шт.

28

G1060

PISTON

- 3-3/8" bore, 4 ring (See G11007 - ref. no. 51)

4шт.

29

G1063

OIL SEAL

RING - piston, oil control (See G11116)

4шт.

30

G1062

OIL SEAL

RING - piston, compression (Taper face) See G11116

12шт.

31

G11018

KIT

LINERS - crankshaft center bearing, top and bottom half (Standard)

1шт.

G11019

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

G11020

BEARING LINER

LINERS - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

G11022

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

32

VT130

CAP - crankshaft center bearing

1шт.

33

G10213

BOLT

- place, center and rear bearing caps (1/2" - 13 NC x 2-1/2")

4шт.

34

G1001

CAP - crankshaft rear bearing

1шт.

35

G11036

KIT

LINERS - crankshaft rear bearing, top and bottom half (Standard)

1шт.

G11037

LINERS - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

G11038

KIT

LINERS - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

G11040

LINERS - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

36

VT3375

X

"O" RING - cylinder sleeve packing seal (3-1/8" O.D.)

8шт.

37

G1061

SLEEVE

- cylinder (3-3/8" bore) (See G11007 - ref. no. 51)

4шт.

38

VT4513

X

STUD - flywheel to crankshaft (7/16" - 20 NF x 1-3/4")

4шт.

39

G10007

GASKET

- rear oil seal retainer

1шт.

40

G1016

RETAINER - rear oil seal, crankshaft

1шт.

41

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

44

G10005

X

SEAL - oil, crankshaft rear (Order G13825 when stock is depleted)

1шт.

G13825

OIL SEAL

- oil, crankshaft rear (See G10005)

1шт.

45

G11583

FLYWHEEL

1шт.

46

G11274

GEAR

- ring, flywheel

1шт.

47

NSS

NOT SOLD SEPARAT

FLYWHEEL - without ring gear

1шт.

48

92-7

LOCK WASHER,7/16"

4шт.

49

25-117

NUT,7/16"-20, G5

- hex. (7/16 - 20 NF)

4шт.

50

G11116

PISTON RING SET

RING SET - piston, 2 in 1 chrome

1шт.

51

G11007

SLEEVE ASSY

KIT - sleeve and piston (Includes set of 4 matched pistons, rings, pins, etc.)

1шт.

G4510

JAW

NUT - starting crank jaw (Not shown)

1шт.

VTA16

CRANK - starting (Not shown)

1шт.

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, , starting crank (not shown) 3/8" x 1 3/4", Slotted

1шт.

52

G36217

HUB ASSY.

HUB - flexible pump drive coupling

1шт.

53

G36905

BLOCK

AND BUSHING

4шт.

54

VT3340

X

WASHER - plain (7/16")

4шт.

55

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

HHCS - 7/16 - 14 NC x 2-1/2

4шт.

56

92-7

LOCK WASHER,7/16"

4шт.
