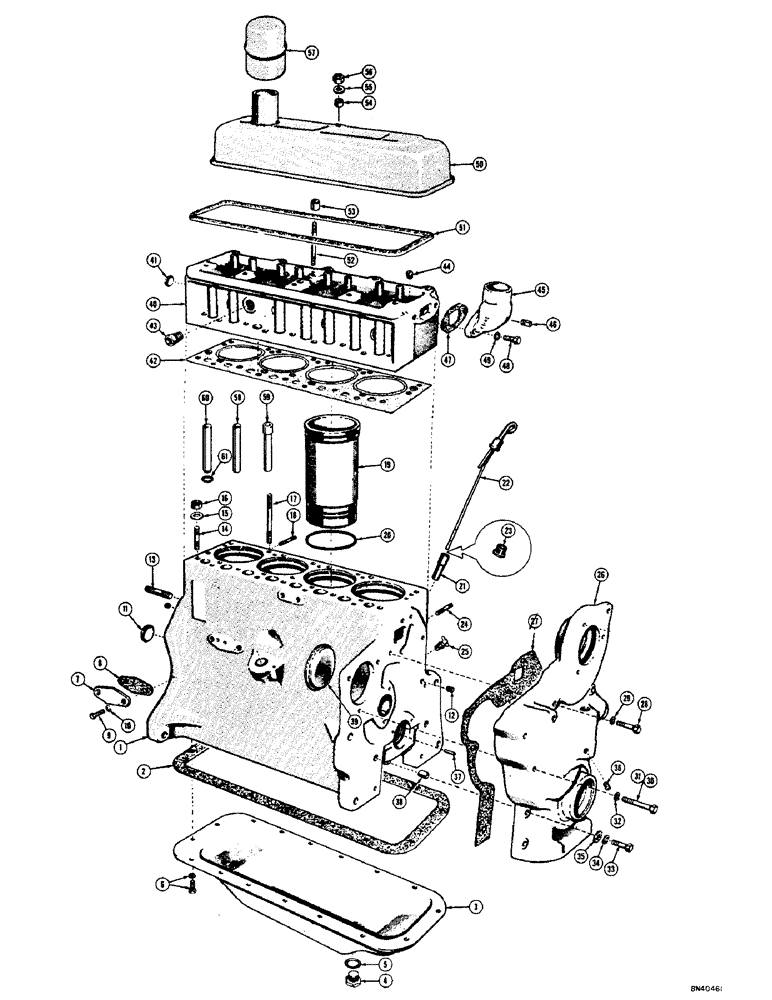

Запчасти Case 310C (008) - ENGINE BLOCK AND RELATED PARTS (01) - ENGINE

G12452M

ENGINE - gasoline, complete (12 volt)

1шт.

G10502

SHORT BLOCK ASSY - (Includes studs, camshaft, cylinder sleeves, pistons and rings, rods, crankshaft, timing gears, and oil pump)

1шт.

1

G11004

BLOCK - cylinder, stripped

1шт.

2

G10020

X

GASKET - oil pan

1шт.

3

G11868

PAN - oil, crankcase

1шт.

4

VT4521

X

PLUG - drain, oil pan

1шт.

5

VT4520

X

GASKET - drain plug

1шт.

6

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

AND LOCKWASHER - Sems (5/16" - 18 NC x 3/4")

16шт.

7

VT3253

PAD - oil filter opening

1шт.

8

VT3229

X

GASKET - oil filter pad

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

VT3398

X

PLUG - rear camshaft bearing (2-1/8" Hubbard)

1шт.

12

VT3395

X

PLUG - pipe, oil gallery (1/8" socket head)

2шт.

13

VT3531

X

STUD - block to clutch housing (5/8" x 3")

2шт.

14

VT4503

X

STUD - cylinder head (1/2" x 2")

9шт.

15

VT4529

WASHER

- cylinder head studs

14шт.

16

VT3361

X

NUT - hex., cylinder head studs

14шт.

17

VT4515

X

STUD - cylinder head (1/2" x 5-7/8")

5шт.

18

VT4502

STUD - engine block to cable clip (3/8" x 1-1/2")

2шт.

19

G1061

SLEEVE

- cylinder, 3-3/8" bore (See G11007 - figure 10)

4шт.

20

VT3375

X

SEAL - "O" ring, cylinder sleeve packing seal ( 3-1/8" O.D.)

8шт.

21

G45139

BRACKET

SUPPORT - oil gauge rod

1шт.

22

G37037

DIPSTICK

- oil level

1шт.

23

G46892

OIL SEAL

- rubber, dipstick

1шт.

24

VT4508

STUD - generator mounting bracket (3/8" x 1-1/4")

2шт.

25

VT2784

X

VALVE - water drain, cylinder block

1шт.

26

VT334

COVER - timing gear

1шт.

27

VT3248

X

GASKET - timing gear cover

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

34

92-6

LOCK WASHER,3/8"

5шт.

35

V20214

WASHER

- cover bolt (13/32" I.D. x 3/4" O.D. x 1/16" thick)

2шт.

36

VT3352

X

PLUG - pipe, 1/8" NPT slotted

1шт.

37

VT3364

X

PIN - crankshaft thrust washer (5/32" x 1/2")

2шт.

38

VT4535

X

RING - dowel, timing gear cover, Serial Range: -block

2шт.

39

VT3243

X

COVER - magneto drive hole

1шт.

40

G11909

HEAD - cylinder (Includes guides, tubes, "O" rings, inserts, and plugs)

1шт.

41

VT5058

PLUG - safety freeze (1-1/8" Hubbard)

1шт.

42

G10672

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

1шт.

43

D26015

FITTING

ADAPTER - heat bulb, temperature gauge

1шт.

44

VT3383

X

PLUG - heat fuse

1шт.

45

G11087

ELBOW - water outlet

1шт.

46

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" NPT square head

1шт.

47

VT3228

X

GASKET - elbow, water outlet

1шт.

48

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

49

92-6

LOCK WASHER,3/8"

2шт.

50

G13997

COVER - valve

1шт.

51

VT3246

GASKET - valve, Serial Range: cover-head

1шт.

52

VT4511

STUD - valve cover (3/8" x 5")

1шт.

53

VT3142

X

SPACER - under valve cover

2шт.

54

G11270

SPACER

- valve cover stud

2шт.

55

VT3291

X

WASHER - valve cover stud (13/32" I.D. x 1" O.D. x 1/8" thick)

3шт.

56

25-106

NUT,3/8"-16, G5

- hex. (3/8 -16 NC)

3шт.

57

VT3545

X

CAP - oil filler and breather

1шт.

58

VT3224

TUBE - push rod (Early production)

8шт.

59

G11331

TUBE - push rod (Step type) Intermediate production 0.687" OD x 3.281" L

8шт.

60

G11360

TUBE,0.687" OD x 3.687" L

- push rod (Beveled edge type) Late production

8шт.

61

O3991CS

X

SEAL - "O" ring, push rod tube (Beveled edge type push rod tube only)

16шт.
