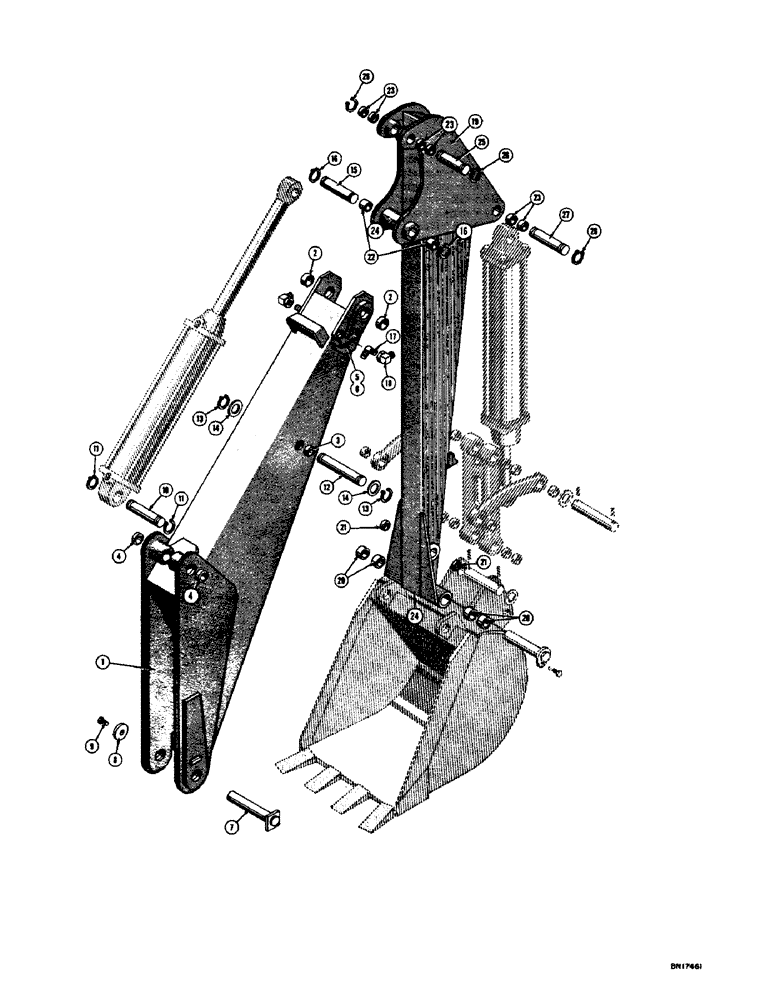

Запчасти Case 310C (180) - BACKHOE BOOM AND DIPPER ARM KITS (FOR FIELD INSTALLATION) (09) - BOOMS

D11428

KIT - backhoe boom, replacement

1шт.

1

D28650

BOOM - backhoe (original equipment P/N 36098)

1шт.

2

D20201

BUSHING

- boom dipper arm pivot (original equipment P/N 30613)

2шт.

3

D20201

BUSHING

- boom cylinder pivot pin, upper, none used originally

2шт.

4

D21903

BUSHING

- crowd cylinder pivot pin, lower, none used originally

2шт.

5

D28614

GUARD - bucket cylinder hose, L.H., none used originally

1шт.

6

D28615

BRONZE BUSHING

GUARD - bucket cylinder hose, R.H., none used originally

1шт.

7

D28612

PIN - pivot, boom to tower (original equipment P/N D23705)

1шт.

8

D25991

WASHER - D28612 pin (1-1/32" I.D. x 2-1/2" O.D. x 1/2" thick) (original equipment P/N 34948)

1шт.

9

113-900

BOLT,Locking, 1" - 8 x 2", Gr 5

HHCS - special Nylok (1" - 8 NC x 2") (original equipment P/N 14-1220)

1шт.

10

D28646

PIN - pivot, crowd cylinder to boom (original equipment P/N D23715)

1шт.

11

D25279

SNAP RING,M35, Int

- D28646 pin (original equipment P/N D21856)

2шт.

12

D28647

PIN - boom cylinder pivot, upper (original equipment P/N D23714)

1шт.

13

D25279

SNAP RING,M35, Int

- D28647 pin (original equipment P/N D21856)

2шт.

14

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- D28647 pin (1-33/64" I.D. x 2-1/2" O.D. x 12 gauge) none used originally

2шт.

15

D28648

PIN,1.5" OD x 10 7/16" L

- pivot, dipper arm to boom (original equipment P/N D23710)

1шт.

16

D25279

SNAP RING,M35, Int

- D28648 pin, none used originally

2шт.

17

D28005

ELBOW - bulkhead, 90 degrees (5/8" JIC) (original equipment P/N D21699)

2шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

18

50003

ELBOW

- swivel, 90 degrees (5/8" JIC) none used originally

2шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

D11429

KIT - Backhoe dipper arm, replacement

1шт.

5

D28614

GUARD - bucket cylinder hose, L.H., none used originally

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

6

D28615

BRONZE BUSHING

GUARD - bucket cylinder hose, R.H., none used originally

1шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

17

D28005

ELBOW - bulkhead, 90 degrees (5/8" JIC) (original equipment P/N D21699)

2шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

18

50003

ELBOW

- swivel, 90 degrees (5/8" JIC) none used originally

2шт.

Guards not required if boom and dipper arm are replaced at same time. Fittings are duplicated if both kits are installed at one time.

1шт.

19

D28656

ARM - dipper (original equipment P/N 36030)

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- lower end of dipper arm, bucket mounting, part supplied in kit is same as original equipment

4шт.

21

D23444

BUSHING

- lower end of dipper arm, link mounting (original equipment P/N 30634)

2шт.

22

D21903

BUSHING

- boom pivot, part supplied in kit is same as original equipment

2шт.

23

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- crowd and bucket cylinder pivot pins, none used originally

8шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

25

D28649

PIN

- pivot, crowd cylinder to dipper arm (original equipment P/N D23715)

1шт.

26

D25279

SNAP RING,M35, Int

- D28649 pin (original equipment P/N D21856)

2шт.

27

D28649

PIN

- pivot, bucket cylinder to dipper arm (original equipment P/N D23715)

1шт.

28

D25279

SNAP RING,M35, Int

- D28649 pin (original equipment P/N D21856)

2шт.
