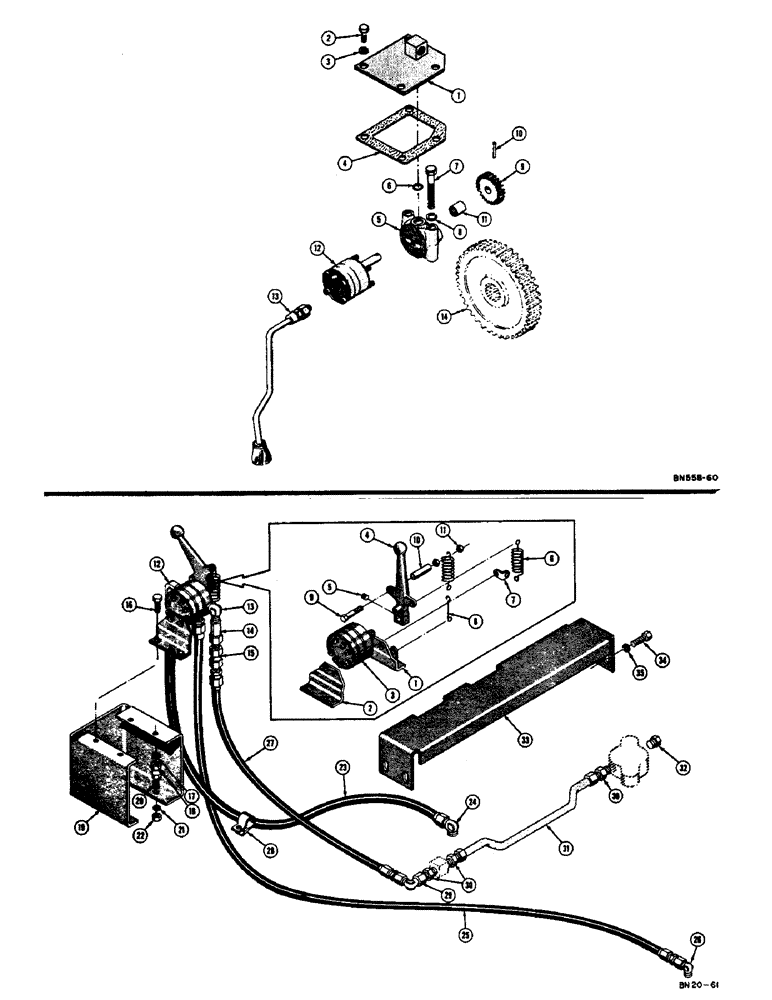

Запчасти Case 310C (164) - C-12 WINCH HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

D26590

COVER - pump hole

1шт.

2

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8 - 24 NF x 7/8

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D27714

GASKET - pump hole cover

1шт.

5

D26593

ADAPTER - pump (Used with D26594 pump only)

1шт.

6

D26592

O-RING

SEAL - "O" ring, adapter or, Serial Range: pump-cover

1шт.

7

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

HHCS - 3/8 - 24 NF x 3

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

D27713

GEAR - pump drive

1шт.

10

D27715

PIN - drive-lok (5/32" x 1-1/4")

1шт.

11

O8089AB

BEARING - needle (Used with D26594 pump only)

1шт.

12

D26594

PUMP - hydraulic (Up to Winch serial no. 5097) Use D28932 and D28933

1шт.

D28799

X

SNAP RING - (Not shown)

2шт.

D28800

WASHER - fiber (3/8" I.D. x 5/8" O.D. x 1/32" thick) Not shown

4шт.

D28801

GASKET - pump to adapter (Not shown)

1шт.

D28802

VALVE - relief (Not shown)

1шт.

12

D28932

PUMP - hydraulic (Winch serial no. 5097 and after) See D26594 and D26595

1шт.

13

D26595

INTAKE ASSY - oil (Used with D26594 pump) See D28933

1шт.

D28933

INTAKE ASSY - oil (Used with D28932 pump) See D26595

1шт.

14

38829

GEAR - driven

1шт.

D26614

X

VALVE - control, complete

1шт.

1

D28284

BRACKET - mounting, control valve body (R.H.), C-12 winch hydraulic

1шт.

2

D28285

BRACKET - mounting, control valve body (L.H.), C-12 winch hydraulic

1шт.

3

D28287

BODY

- control valve, C-12 winch hydraulic controls

1шт.

4

D28288

HANDLE - control, C-12 winch hydraulic

1шт.

5

D28289

SCREW - set, control handle, C-12 winch hydraulic

1шт.

6

D26622

SPRING - return, control handle, C-12 winch hydraulic

2шт.

7

D28293

CLIP - mounting, return spring, C-12 winch hydraulic controls

1шт.

8

D28292

LINK - extension, return spring, C-12 winch hydraulic controls

1шт.

9

D28286

SCREW - return spring, C-12 winch hydraulic controls

1шт.

10

D28290

SPACER - spring mounting, C-12 winch hydraulic controls

1шт.

11

D28291

NUT - hex., return spring screw, C-12 winch hydraulic controls

2шт.

12

222-773

ELBOW - 90 degree male (1/2 JIC x 1/4 NPT), C-12 winch hydraulic controls

1шт.

13

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street (1/4 NPT), C-12 winch hydraulic controls

1шт.

14

D26625

STRAINER - drain line, C-12 winch hydraulic controls

1шт.

15

D28294

X

FITTING - hose adapter drain line, C-12 winch hydraulic controls

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C-12 winch hydraulic controls Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

17

92-5

LOCK WASHER,5/16"

C-12 winch hydraulic controls 5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC), C-12 winch hydraulic controls

4шт.

19

D26624

STAND - control valve, C-12 winch hydraulic

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C-12 winch hydraulic controls Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

21

92-5

LOCK WASHER,5/16"

C-12 winch hydraulic controls 5/16"

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC), C-12 winch hydraulic controls

4шт.

23

D26617

HOSE - drain line (1/2" I.D. x 3/4" O.D. x 48"), C-12 winch hydraulic controls

1шт.

24

D26611

ELBOW - 90 degree male, C-12 winch hydraulic controls

1шт.

25

D26616

HOSE - clutch line (1/4" I.D. x 17/32" O.D. x 72"), C-12 winch hydraulic controls

1шт.

26

D26609

X

ELBOW - 45 degree male, C-12 winch hydraulic controls

1шт.

27

D26615

HOSE - control valve to pump (1/4" I.D. x 17/32" O.D. x 48"), C-12 winch hydraulic

1шт.

28

D23621

CLAMP - hose, C-12 winch hydraulic controls

1шт.

29

D26613

X

ELBOW - 90 degree swivel nut, C-12 winch hydraulic controls

1шт.

30

D26612

X

CONNECTOR - male, C-12 winch hydraulic controls

3шт.

31

D26610

TUBE

- brake line, pump to brake cylinder, C-12 winch hydraulic controls

1шт.

32

129998

PLUG,1/2" - 20 ORB

(5/16 JIC), C-12 winch hydraulic controls Hex Hd, 1/2"-20 ORB

1шт.

33

D26538

GUARD - tube, C-12 winch hydraulic controls

1шт.

34

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1, C-12 winch hydraulic controls

4шт.

35

92-8

LOCK WASHER,1/2"

C-12 winch hydraulic controls 1/2"

4шт.
