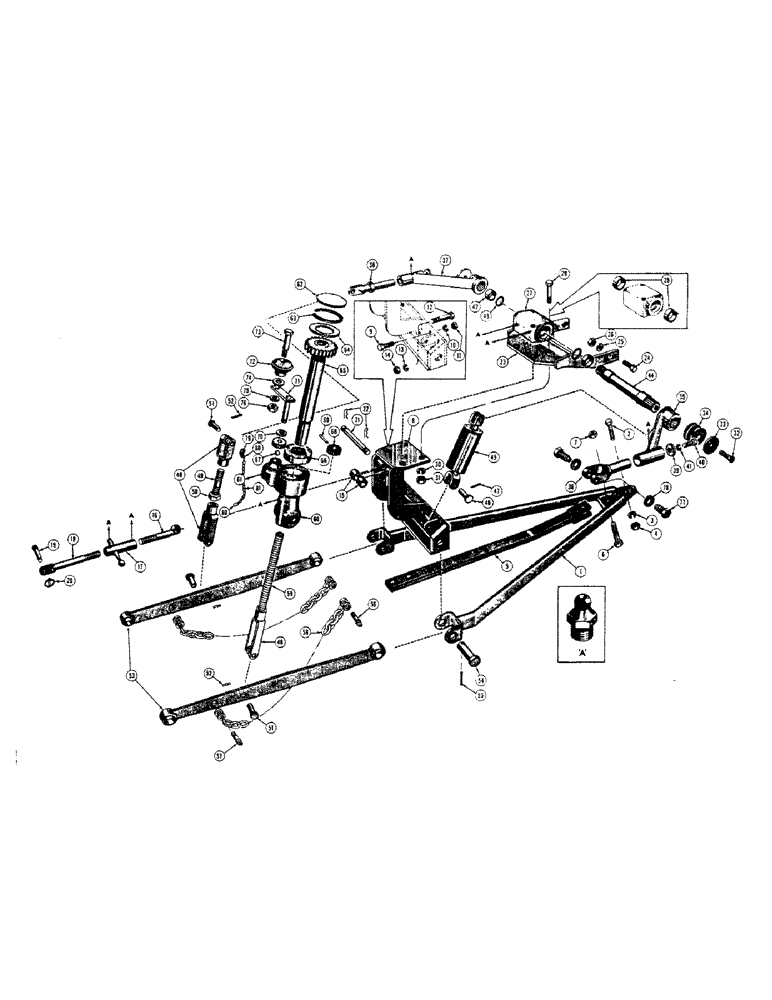

Запчасти Case 310 (166) - THREE POINT HITCH (WITH SWINGING DRAFT ARMS), DRAWBAR AND MOUNTING PARTS (07) - HYDRAULIC SYSTEM

1

D20635

ARM - mounting, drawbar

1шт.

2

14-1656

HHCS - 1" - 14 NF x 3-1/2"

1шт.

3

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

4

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

1шт.

5

39778

SCREW

DRAWBAR - three point hitch

1шт.

6

14-1664

BOLT,Hex, 1" - 14 x 4", Gr 5

HHCS - 1" - 14 NF x 4"

1шт.

7

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

1шт.

8

D20636

BRACKET - mounting, three point hitch

1шт.

9

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

HHCS - 5/8" - 18 NF x 1-1/2"

4шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

12

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

D20483

SPACER - mounting, front depth adjusting screw

2шт.

16

A7240

SCREW - depth, front (L.H. thread)

1шт.

17

A7821

TURNBUCKLE - depth adjusting screw

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

18

D20622

LINK - depth adjusting, rear (R.H. thread)

1шт.

19

V14209

X

PIN - mast

1шт.

20

SV2433

X

PIN - keeper, mast pin

1шт.

21

39798

BRACKET

PIN - depth adjusting link

1шт.

22

VC1419

X

PIN - hair pin cotter

2шт.

23

39794

SHAFT

STRAP - hanger (Original equipment) When stock is exhausted, use 1 - D29784 hanger strap, 4 - 14-1244 cap screws, 4 - 92-12 lockwashers, and 4 - 25-1112 nuts

1шт.

D29784

STRAP - hanger (Replacement) See 39794

1шт.

24

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8" - 18 NF x 2-3/4" (39794 hanger strap)

4шт.

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4" - 16 NF x 2-3/4" (D29784 hanger strap)

4шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

26

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

27

D20418

X

HOUSING - rockshaft (Use A20907)

1шт.

28

O9235AB

X

BUSHING - rockshaft housing

2шт.

A20907

X

HOUSING - rockshaft

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

29

14-1080

BOLT,Hex, 5/8" - 18 x 5", Gr 5

HHCS - 5/8" - 18 NF x 5"

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

32

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- machine, flat head (3/8" - 16 NC x 1")

2шт.

33

O9239AB

PLATE - lock, lift arm

2шт.

34

O9238AB

SHIM - rockshaft lock plate, L.H.

3шт.

35

D20612

ARM - rockshaft lift, R.H.

1шт.

36

G16754

SWIVEL - lift arm, R.H.

1шт.

37

D20614

ARM ASSY.

ARM - rockshaft lift, L.H.

1шт.

38

G16755

SWIVEL - L.H. lift arm

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

39

G16747

WASHER - retainer, lift arm swivel

2шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

O9237AB

X

SPACER - rockshaft

2шт.

43

A20908

SEAL - "O"ring, rockshaft

2шт.

44

A20911

ROCKSHAFT - three point hitch

1шт.

45

A8282

CYLINDER - three point hitch, hydraulic (See figure 176 for breakdown)

1шт.

46

O8350AB

PIN - mounting, cylinder

2шт.

47

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

48

213-8

CLEVIS,3/4"-16

- lift link rod, L.H. upper and lower (Also R.H. lower)

3шт.

49

D20651

X

ROD - lift link, L.H.

1шт.

50

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

1шт.

51

141-8

CLEVIS PIN,3/4" x 1.910", HDN

PIN - clevis

3шт.

52

VC1419

X

PIN - hair pin cotter

3шт.

53

D20641

ARM - draft (Original equipment) Use D28996

2шт.

When replacing D20641 draft arm, also order D28997 screw shackle.

1шт.

D28996

ARM - draft (Replacement)

2шт.

When replacing D20641 draft arm, also order D28997 screw shackle.

1шт.

54

D20629

PIN - mounting, draft arm

2шт.

55

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

2шт.

56

D21858

SHACKLE - screw (4 used with original equipment draft arm; 2 used with replacement draft arms) See D28997

2-4шт.

57

D28997

SHACKLE - screw (Used with replacement draft arms only) See D21858

2шт.

When replacing D20641 draft arm, also order D28997 screw shackle.

1шт.

58

D21389

CHAIN - mounting bracket to draft arm

2шт.

59

D20648

ROD - lift link, R.H.

1шт.

60

G1044

HOUSING - gear, adjusting screw

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

61

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (Vented) (1/8" NPT)

1шт.

62

41-40

PLUG,Exp, 2 1/2"

- expansion, 2-1/2" dia.

1шт.

63

O8582AB

X

SNAP RING - retaining, leveling screw gear

1шт.

64

O265BL

WASHER - leveling screw gear (1-15/16" I.D. x 2-1/2" O.D. x 5/64" thick) Use T25645

1шт.

T25645

WASHER - leveling screw gear

1шт.

65

G13390

TUBE

GEAR AND TUBE - leveling screw

1шт.

66

G10489

THRUST BEARING

BEARING - thrust, leveling screw

1шт.

67

211-7

BALL,1/4" Dia

- crank bearing 1/4" Dia

1шт.

68

G10464

GEAR - adjusting screw crank

1шт.

69

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Crank gear 5/32" x 7/8", Slotted

1шт.

70

O5087A

X

WASHER - thrust, crank gear

1шт.

71

G13119

CRANK - adjusting screw

1шт.

72

O4995AB

X

KNOB - adjusting screw crank

1шт.

73

VT2964

BOLT - mounting, knob

1шт.

74

G10488

WASHER - thrust, adjusting crank

1шт.

75

92-6

LOCK WASHER,3/8"

1шт.

76

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

77

O9214AB

X

PIN - pivot, adjusting screw

2шт.

78

O164B

X

WASHER - pivot pin (29/32" I.D. x 1-3/8" O.D.)

1шт.

79

O10953AB

RETAINER - chain

1шт.

80

O9191AB

X

"S" HOOK - chain

2шт.

81

D20505

CHAIN

1шт.

44

A20911

ROCKSHAFT - three point hitch

1шт.
