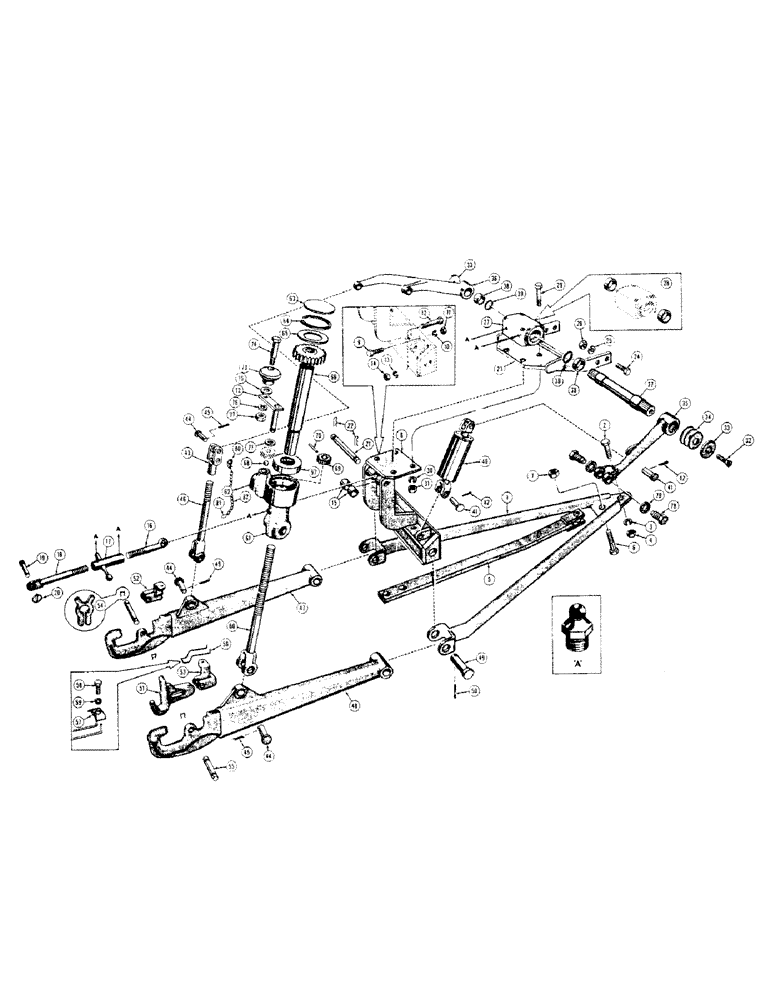

Запчасти Case 310 (162) - THREE POINT HITCH (WITH RIGID DRAFT ARMS) (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
39775
ARM - mounting, drawbar parts
1шт.
2
14-1656
HHCS - 1" - 14 NF x 3-1/2", drawbar and mounting parts
1шт.
3
92-16
LOCK WASHER,1"
WASHER, LOCK, , Drawbar and mounting parts 1"
1шт.
4
25-1116
NUT,1"-14, G5
- hex. (1" - 14 NF), drawbar and mounting parts
1шт.
5
39778
SCREW
DRAWBAR - three point hitch, and mounting parts
1шт.
6
14-1664
BOLT,Hex, 1" - 14 x 4", Gr 5
HHCS - 1" - 14 NF x 4", drawbar and mounting parts
1шт.
7
131-370
LOCK NUT
NUT - lock (1" - 14 NF), drawbar and mounting parts
1шт.
8
39786
PIN
BRACKET - mounting, three point hitch, drawbar parts
1шт.
9
14-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
Drawbar and mounting parts Hex, 5/8"-18 x 1 3/4", G5
4шт.
11
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF), drawbar and mounting parts
4шт.
12
14-872
X,Hex, 1/2" - 20 x 4 1/2", Gr 5
HHCS - 1/2" - 20 NF x 4-1/2", drawbar and mounting parts
2шт.
13
92-8
LOCK WASHER,1/2"
drawbar and mounting parts 1/2"
2шт.
14
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF), drawbar and mounting parts
2шт.
15
D20483
SPACER - mounting, front depth adjusting screw, drawbar and mounting parts
2шт.
16
A7240
SCREW - depth adjusting, front (L.H. thread), turnbuckle
1шт.
17
A7821
TURNBUCKLE - depth adjusting screw
1шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), turnbuckle
2шт.
18
D20622
SCREW - depth adjusting, rear (R.H. thread), turnbuckle
1шт.
19
V14209
X
PIN - mast, turnbuckle
1шт.
20
SV2433
X
PIN - keeper, mast pin, turnbuckle
1шт.
21
39798
BRACKET
PIN - yoke, depth adjusting screw, turnbuckle
1шт.
22
VC1419
X
PIN - hair pin cotter, turnbuckle
2шт.
23
NLS
NO LONGER SERVICED
STRAP - hanger (Original equipment) When stock is exhausted, use 1 - D29784 hanger strap, 4 - 14-1244 cap screws, 4 - 92-12 lockwashers, and 4 - 25-1112 nuts, rockshaft and housing
1шт.
D29784
STRAP - hanger (Replacement) See 39794, rockshaft and housing
1шт.
24
14-1044
BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5
HHCS - 5/8" - 18 NF x 2-3/8", rockshaft and housing
4шт.
14-1244
BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5
HHCS - 3/4" - 16 NF x 2-3/4", rockshaft and housing
4шт.
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Rockshaft and housing 3/4"
4шт.
26
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF), rockshaft and housing
4шт.
25-1112
NUT,3/4"-16, G5
- hex. (3/4" - 16 NF), rockshaft and housing
4шт.
27
D20418
X
HOUSING - rockshaft (Use A20907)
1шт.
28
O9235AB
X
BUSHING - rockshaft housing
2шт.
A20907
X
HOUSING - rockshaft
1шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), rockshaft and housing
2шт.
29
14-1080
BOLT,Hex, 5/8" - 18 x 5", Gr 5
HHCS - 5/8" - 18 NF x 5", rockshaft and housing
4шт.
31
25-1110
NUT,5/8"-18, G5
- hex. (5/8" - 18 NF), rockshaft and housing
4шт.
32
73-616
SCREW,Slotted Flat Hd, 3/8"-16 x 1"
- machine, flat head (3/8" - 16 NC x 1"), rockshaft and housing
2шт.
33
O9239AB
PLATE - lock, rockshaft lift arm, and housing
2шт.
34
O9238AB
SHIM - rockshaft adjusting, L.H., and housing
3шт.
35
D20417
ARM - rockshaft lift, R.H., and housing
1шт.
36
O10929AB
ARM - rockshaft lift, L.H., and housing
1шт.
37
A20911
ROCKSHAFT - three point hitch, and housing
1шт.
38
O9237AB
X
SPACER - rockshaft, and housing
2шт.
39
A20908
SEAL - "O"ring, rockshaft, and housing
2шт.
40
A8282
CYLINDER - three point hitch (See figure 176 for breakdown), rockshaft and housing
1шт.
41
O8350AB
PIN - mounting, hydraulic cylinder, rockshaft and housing
2шт.
42
132-150
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), , Rockshaft and housing 1/4" x 1 1/2"
2шт.
43
A7760
YOKE - L.H. link, upper, rockshaft and housing
1шт.
44
O9213AB
X
PIN - leveling screw mounting (L.H. upper and lower; also R.H. lower), rockshaft and housing
3шт.
45
VC1419
X
PIN - hair pin cotter, rockshaft and housing
3шт.
46
39805
SEAL
LINK - lift, L.H.
1шт.
47
D20432
ARM - draft, L.H.
1шт.
48
D20431
ARM - draft, R.H.
1шт.
49
NLS
NO LONGER SERVICED
PIN - pivot, draft arm
2шт.
50
138-143
LOCK PIN,1/4" x 2 1/4", Slotted
PIN, , Pivot pin 1/4" x 2 1/4", Slotted
2шт.
52
6169A
X
LOCK - latch, L.H. draft arm
1шт.
53
6168A
X
LOCK - latch, R.H. draft arm
1шт.
54
O9416AB
X
SNAP RING - retaining, latch pin
4шт.
55
O9415AB
X
PIN - latch, draft arm
2шт.
56
O10280AB
X
SPRING - latch, draft arm
2шт.
57
O9229AB
X
PLATE - draft arm latch spring
2шт.
58
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
2шт.
59
92-5
LOCK WASHER,5/16"
2шт.
60
39804
LINK - lift, R.H. leveling screw (Lower)
1шт.
61
G1044
FITTING - grease, straight (1/8" NPT)
1шт.
62
219-30
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (Vented) (1/8" NPT)
1шт.
63
41-40
PLUG,Exp, 2 1/2"
- expansion (2-1/2" dia.)
1шт.
64
O8582AB
X
SNAP RING - retaining, leveling screw gear
1шт.
65
O265BL
WASHER - leveling screw gear (1-15/16" I.D. x 2-1/2" O.D. x 5/64" thick) Use T25645
1шт.
T25645
WASHER - leveling screw gear
1шт.
66
G13390
TUBE
GEAR AND TUBE - leveling screw
1шт.
67
G10489
THRUST BEARING
BEARING - thrust, leveling screw
1шт.
68
O8635AB
X
BALL - crank bearing (1/4" dia.) Use 211-7
1шт.
211-7
BALL,1/4" Dia
- crank bearing 1/4" Dia
1шт.
69
G10464
GEAR - adjusting screw crank
1шт.
70
138-75
LOCK PIN,5/32" x 7/8", Slotted
PIN, , Crank gearr 5/32" x 7/8", Slotted
1шт.
71
O5087A
X
WASHER - thrust, crank gear
1шт.
72
G13119
CRANK - adjusting screw
1шт.
73
O4995AB
X
KNOB - adjusting screw crank
1шт.
74
VT2964
BOLT - mounting, knob
1шт.
75
G10488
WASHER - thrust, adjusting crank
1шт.
76
92-6
LOCK WASHER,3/8"
1шт.
77
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
1шт.
78
O9214AB
X
PIN - pivot, adjusting screw
2шт.
79
O164B
X
WASHER - pivot pin (29/32" I.D. x 1-3/8" O.D.)
1шт.
80
O10953AB
RETAINER - chain
1шт.
81
O9191AB
X
"S" HOOK - chain
2шт.
82
D20505
CHAIN
1шт.
45
VC1419
X
PIN - hair pin cotter
3шт.
Выбрано товаров: 91
