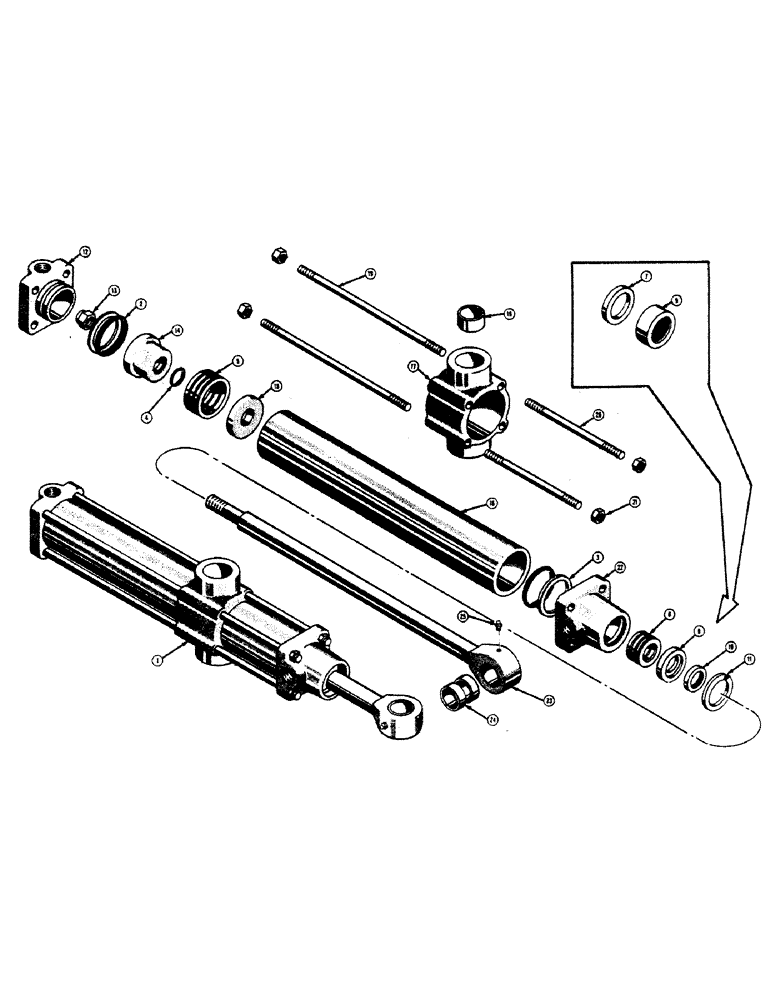

Запчасти Case 310 (160) - D27696 SCARIFIER HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D27696

CYLINDER - Scarifier, hydraulic (3" I.D. x 10-1/2" stroke)

1шт.

D30137

KIT

- cylinder packing

1шт.

2

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - O-ring, cylinder ends to tube

2шт.

3

D24986

RING

- leather backup (Used only with cylinder end or cap that has .210" wide O-ring groove) See D25494

2шт.

D25494

RING

- plastic backup (Used only with cylinder end or cap that has .185" wide O-ring groove) See D24986

2шт.

4

O3522CK

X

SEAL - O-ring, piston rod (Used with D23735 piston only) See F62075

1шт.

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - O-ring, piston rod (Used with D23735 piston only)

1шт.

5

31662

PACKING

- piston

1шт.

6

17597

PACKING

- piston rod

1шт.

7

36259

WASHER

- packing, piston rod (Used D23962 and D23933) See D23933

1шт.

8

D23933

GLAND

- wiper ring (See 36259 and 17603)

1шт.

9

17603

WIPER SEAL

- wiper, piston rod (Use D23962 and D23933) See D23962

1шт.

10

D23962

SEAL

- wiper, piston rod (See 36259 and 17603)

1шт.

11

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

12

31657

ARTICULATION

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

13

131-152

HARDWARE

NUT - lock, piston rod (31663 piston only) (3/4" - 16 NF) See D23739

1шт.

D23739

LOCK NUT

NUT - lock, piston rod (D23735 piston only) (3/4" - 16 NF) See 131-152

1шт.

14

31663

X

PISTON - cylinder (No O-ring) Use D23735, D23739 and F62075 (See D23735)

1шт.

D23735

PISTON

- cylinder (With O-ring) when replacing 31663 piston without O-ring, also order (1) F62075 O-ring and (1) D23739 locknut

1шт.

15

31661

WASHER

- piston packing

1шт.

16

37396

TAPE,3.5" OD, 13.333" Length

TUBE - cylinder (3.500" O.D.) See D23251

1шт.

D23251

TUBE - cylinder (3.375" O.D.) See 37396

1шт.

17

36947

ROD

TRUNNION - cylinder (3.500" O.D. cylinder tube only) See D23302

1шт.

D23302

TRUNNION - cylinder (3.375" O.D. cylinder tube only) See D36947

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

19

37392

ROD - tie, long

4шт.

20

37393

TAPE

ROD - tie, short

4шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

8шт.

22

36999

CAP COVER

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24986 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

23

D20021

ROD - piston (1-1/4" dia.)

1шт.

24

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
