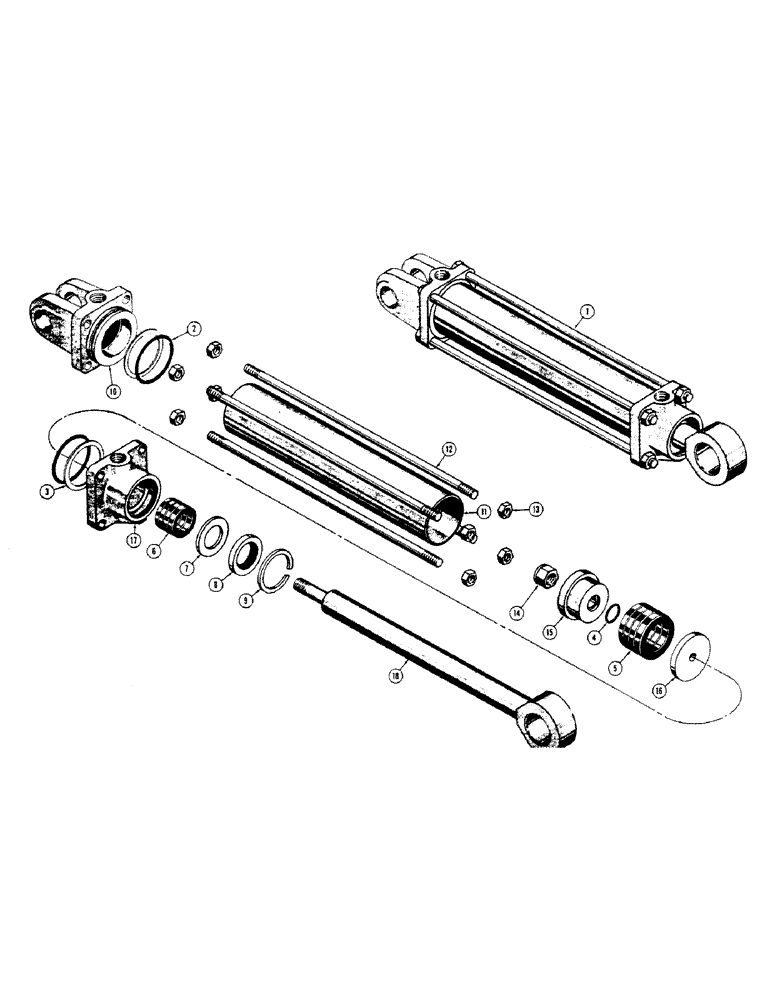

Запчасти Case 310 (152) - 38137 DOZER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

38137

CYLINDER - dozer lift, hydraulic (2-1/2" I.D. x 23-1/8" stroke)

2шт.

D30135

PACKAGE, REPAIR

KIT - cylinder packing

1шт.

2

86982912

O-RING

SEAL - O-ring, cylinder, Serial Range: ends-tube

2шт.

3

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide O-ring groove) See D25493

2шт.

D25493

BACK-UP RING

RING - leather backup (Used only with cylinder end or cap that has .185" wide O-ring groove) See D24985

2шт.

4

O3522CK

X

SEAL - O-ring, piston rod (Used with D23738 piston) Use F62075

1шт.

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - O-ring, piston rod (Used with D23738 piston)

1шт.

5

17598

PACKING

- piston

1шт.

6

17597

PACKING

- piston rod

1шт.

7

36259

WASHER

- packing, piston rod (Use D23933 and D23962)

1шт.

D23933

GLAND

- wiper ring (See 36259 and 17603)

1шт.

8

17603

WIPER SEAL

- wiper, piston rod (Use D23933 and D23962)

1шт.

D23962

SEAL

- wiper, piston rod (See 36259 and 17603)

1шт.

9

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

10

17591

END - cylinder

1шт.

11

38140

CHAIN

TUBE - cylinder

1шт.

12

38141

ROD - tie

4шт.

13

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8" - 24 NF)

8шт.

14

131-152

HARDWARE

NUT - lock, piston rod (30631 piston only) (3/4" - 16 NF) See D23739

1шт.

D23739

LOCK NUT

NUT - lock, piston rod (D23738 piston only) (3/4" - 16 NF) See 131-152

1шт.

15

30631

X

PISOTN - cylinder (No O-ring) Use D23738, D23739 and F62075 (See D23738)

1шт.

D23738

BLOCK

PISTON - cylinder (With O-ring) when replacing piston without O-ring also order (1) D23739 locknut and (1) F62075 O-ring (See 30631)

1шт.

16

30630

CARTRIDGE

WASHER - packing, piston

1шт.

17

17592

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

18

38138

ROD - piston (1-1/4" dia.)

1шт.
