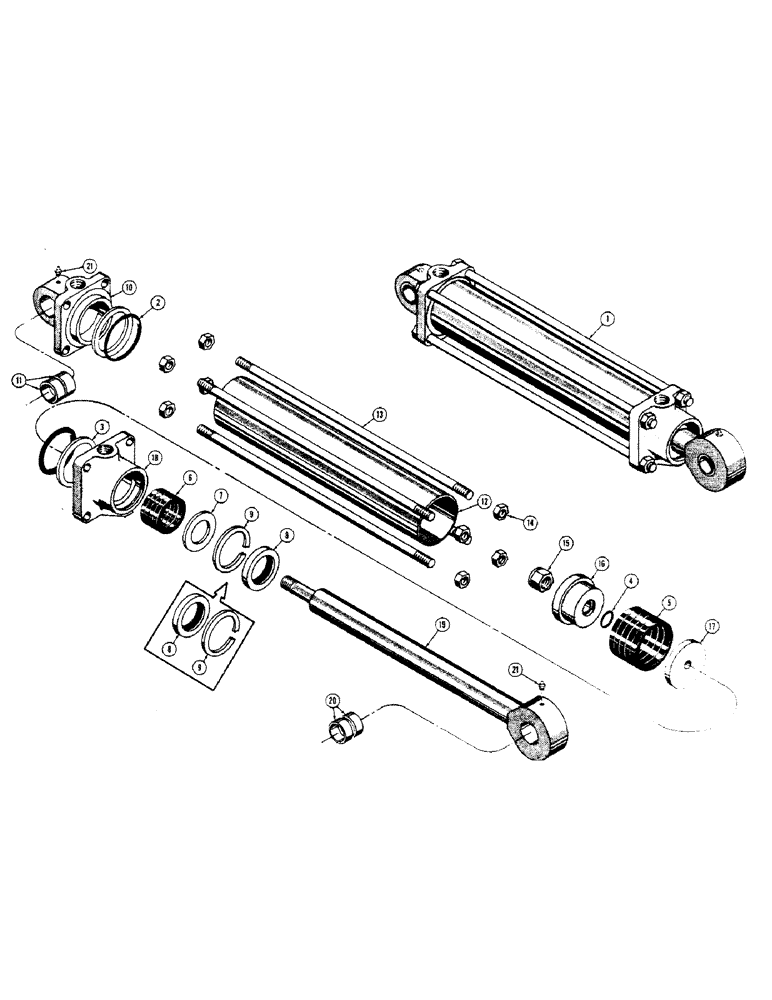

Запчасти Case 310 (124) - D23808 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D23808

CYINDER - loader bucket, hydraulic (2-1/2" I.D. x 13" stroke)

2шт.

D30135

PACKAGE, REPAIR

KIT - cylinder packing

1шт.

2

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - O-ring, cylinder ends to tube

2шт.

3

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide O-ring groove) See D25493

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide O-ring groove) See D24985

2шт.

4

O3522CK

X

SEAL - O-ring (Used with D23738 piston only) Use F62075

2шт.

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - O-ring (Used with D23738 piston only)

2шт.

5

17598

PACKING

- piston

1шт.

6

17597

PACKING

- piston rod

1шт.

7

36259

WASHER

- packing, piston rod (Use D23933 and D23962)

1шт.

D23933

GLAND

- wiper ring (See 36259 and 17603)

1шт.

8

17603

WIPER SEAL

- wiper, piston rod (Use D23933 and D23962)

1шт.

D23962

SEAL

- wiper, piston rod (See 36259 and 17603)

1шт.

9

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

10

D20038

END - cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

12

33771

TUBE - cylinder

1шт.

13

33769

ROD - tie

4шт.

14

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, tie rod (3/8" - 24 NF)

8шт.

15

131-152

HARDWARE

NUT - lock, piston rod (30631 piston only) (3/4" - 16 NF) See D23739

1шт.

D23731

NUT - lock, piston rod (D23738 piston only) (3/4" - 16 NF) See 131-152

1шт.

16

30631

X

PISTON - cylinder (No O-ring) Use D23738, D23739 and F62075 (See D23738)

1шт.

D23738

BLOCK

PISTON - cylinder (With O-ring) when replacing 30631 piston without O-ring also order (1) D23739 nut and (1) F62075 O-ring (See 30631)

1шт.

17

30630

CARTRIDGE

WASHER - packing, piston

1шт.

18

30628

CAP - cylinder end

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

19

D20032

ROD - piston (1-1/4" dia.)

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.
