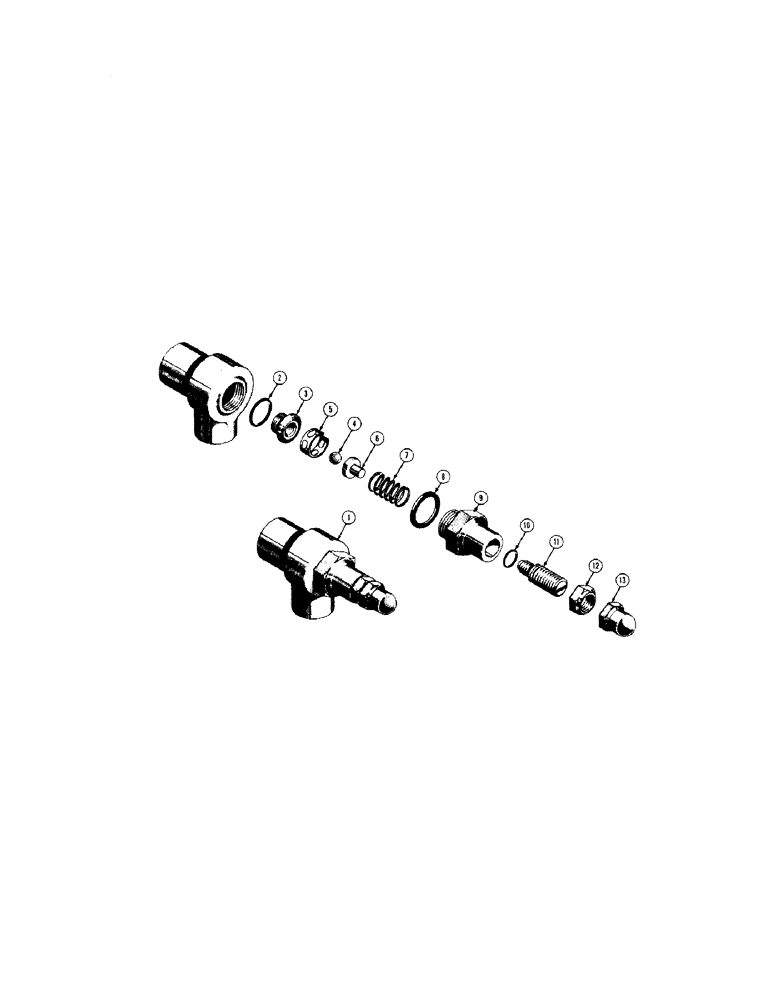

Запчасти Case 310 (120) - 33959 SPECIAL RELIEF VALVE, D24452 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

33959

PIPE FITTING

VALVE - special relief (Has #985 on housing) Use D24452

1шт.

The valve is identified by the number 985 on the housing. If the number 2716 appears on the housing, refer to D24452 relief valve on Figure 120 [1].

1шт.

2

O8416AB

X

SEAL - "O"ring, valve seat

1шт.

3

34119

SEAT, VALVE

SEAT - valve (Use D24406)

1шт.

D24406

SEAT

- valve

1шт.

4

211-13

BALL,1/2" Dia

- relief valve 1/2" Dia

1шт.

5

D24389

COLLAR - seat jam not required no longer furnished

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O"ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

34111

X

NUT - hex, jam

1шт.

13

34109

NUT - cap

1шт.
