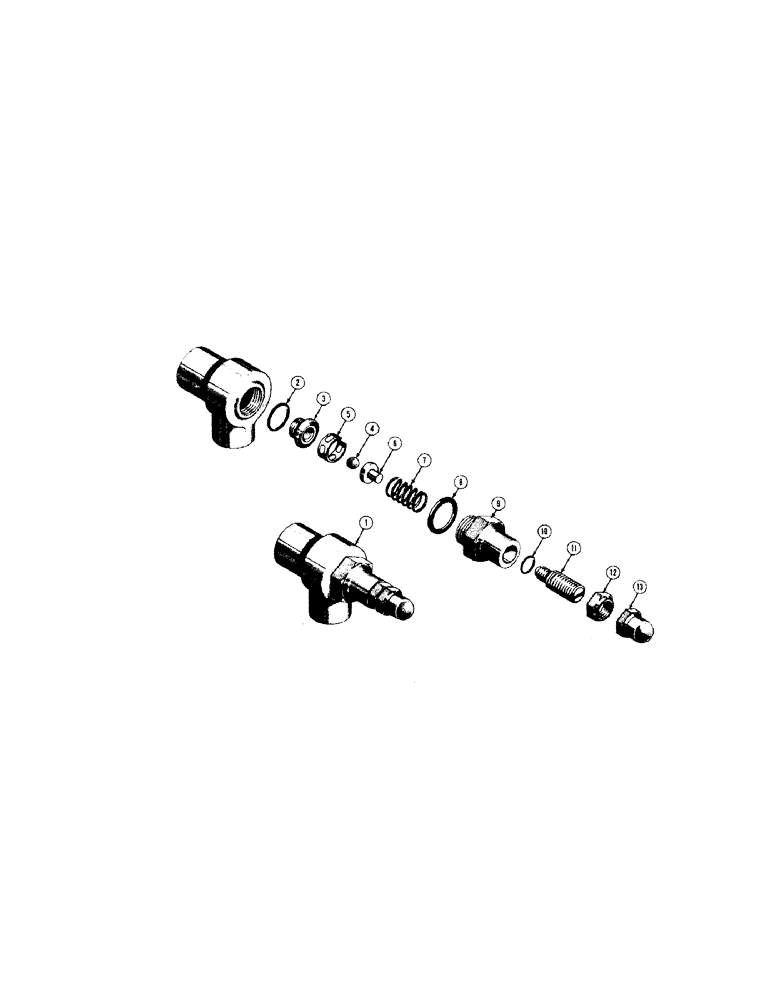

Запчасти Case 310 (120[1]) - D24452 SPECIAL RELIEF VALVE (07) - HYDRAULIC SYSTEM

1

D24452

VALVE

- special relief (Has #2716 on housing)

1шт.

The valve is identified by the number 2716 on the housing. If the number 985 appears on the housing, refer to 33959 relief valve on Figure 120.

1шт.

2

D23928

O-RING

SEAL - "O"ring, valve seat

1шт.

3

D24406

SEAT

- valve

1шт.

4

211-13

BALL,1/2" Dia

- relief valve 1/2" Dia

1шт.

5

D24389

COLLAR - seat jam not required no longer furnished

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

D24049

VALVE SPRING

SPRING - relief valve

1шт.

8

34115

GASKET

- valve cap

1шт.

9

34113

BODY

CAP - hex. body

1шт.

10

VT2983

X

SEAL - "O"ring, adjusting screw

1шт.

11

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

12

34111

X

NUT - hex. jam

1шт.

13

34109

NUT - cap

1шт.
