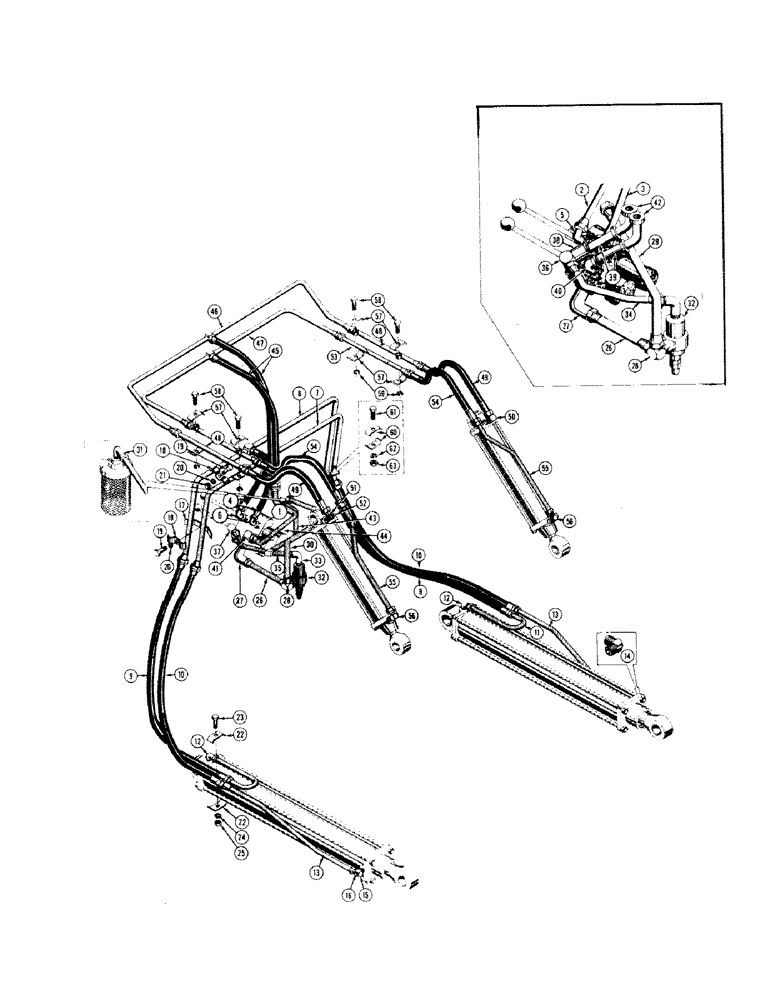

Запчасти Case 310 (116) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

38256

PIN

VALVE - control (See figure 108 for breakdown) Use D24387

1шт.

D24387

SPOOL

VALVE - control (See figure 110 for breakdown)

1шт.

2

D20096

TUBE - L.H. rear valve port to rear manifold tube (Used before tractor serial no. 3003825) See D20335

1шт.

3

D20093

TUBE - L.H. front valve port to front manifold tube (Used before tractor serial no. 3003825) See D20335

1шт.

4

D20335

HOSE - L.H. valve ports to manifold tubes (1/2" I.D. x 7/8" O.D. x 18-1/2") Used on tractor serial no. 3003825 after (See D20093 and D20096)

2шт.

5

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT) Used before tractor serial no. 3003825 (See 218-535)

2шт.

6

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees (5/8" JIC x 1/2" NPT) Used on tractor serial no. 3003825 and after (See 218-485)

2шт.

7

D20125

TUBE - manifold, front (Used before tractor serial no. 3003825) See D20339

1шт.

D20339

TUBE - manifold, front (Used on tractor serial no. 3003825 and after) See D20125

1шт.

8

D20122

TUBE - manifold, rear (Used before tractor serial no. 3003825) See D20338

1шт.

D20338

TUBE - manifold, rear (Used on tractor serial no. 3003825 and after) See D20122

1шт.

9

36695

HOSE - rear manifold tube to rear lift cylinder port (1/2" I.D. x 7/8" O.D. x 23-1/2")

2шт.

10

36574

HOSE

- front manifold tube to front lift cylinder port (1/2" I.D. x 7/8" O.D. x 23-1/2")

2шт.

11

36578

TUBE - hose to rear lift cylinder port

2шт.

12

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

13

36588

TUBE - hose to front lift cylinder port

2шт.

14

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

15

33888

ELBOW - special, 90 degrees (5/8" JIC male x 1/2" NPT male x 1/8" NPT female)

1шт.

16

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

17

D20090

SPACER - tube clamp (Used before tractor serial no. 3003825) See 33747

2шт.

33747

SPACER - tube clamp (Used on tractor serial no. 3003825 and after) See D20090

2шт.

18

17179

PLATE - clamp

4шт.

19

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16" - 24 NF x 1" (Used before tractor serial no. 3003825) See 14-524

4шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16" - 24 NF x 1-1/2" (Used on tractor serial no. 3003825 and after) See 14-516

4шт.

20

92-5

LOCK WASHER,5/16"

4шт.

21

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

22

31665

COLLAR CLAMP

PLATE - clamp

4шт.

23

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

26

D20107

TUBE - control valve outlet to lateral elbow, bucket cylinder hydraulics

1шт.

27

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT), bucket cylinder hydraulics

1шт.

28

D20105

ELBOW - lateral, bucket cylinder hydraulics

1шт.

29

D20106

TUBE - lateral elbow to reservoir (Used before tractor serial no. 3003825) Not shown (See D20328), bucket cylinder hydraulics

1шт.

30

D20328

TUBE - lateral elbow to reservoir (Used on tractor serial no. 3003825 and after) See D20106, bucket cylinder hydraulics

1шт.

31

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT), bucket cylinder hydraulics

1шт.

32

NLS

NO LONGER SERVICED

VALVE - relief (See figure 120 for breakdown) Use D24452, bucket cylinder hydraulics

1шт.

D24452

VALVE

- relief (See figure 120 for breakdown), bucket cylinder hydraulics

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT), bucket cylinder hydraulics

1шт.

34

D20108

TUBE - relief valve to R.H. rear control valve port (Used before tractor serial no. 3003825) See D20347 (Not shown)

1шт.

35

D20347

TUBE - relief valve to R.H. rear control valve port (Used on tractor serial no. 3003825 and after) See D20108

1шт.

36

34264

ELBOW - lateral, R.H. rear control valve port (Used before tractor serial no. 3003825) See 218-485

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (R.H. rear control valve port) (5/8" JIC x 1/2" NPT) Used on tractor serial no. 3003825 and after (See 34264)

1шт.

38

221-329

X

COUPLING - pipe (1/2" NPT) 34264 lateral elbow to nipple (Used before tractor serial no. 3003825)

1шт.

39

221-192

PIPE,Nipple, 1/2" NPT x 3"

NIPPLE - pipe (1/2" NPT x 3")

2шт.

40

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 90 degrees (1/2" NPT) R.H. front control valve port (Used before tractor serial no. 3003825) See 218-485

1шт.

41

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT) R.H. front control valve port (Used on tractor serial no. 3003825 and after) See 221-414

1шт.

42

221-268

NIPPLE, LUBE

ELBOW - pipe, 45 degrees (1/2" NPT) Used before tractor serial no. 3003825

2шт.

43

D21951

TUBE - R.H. rear control valve port to rear bucket cylinder manifold tube (Used on tractor serial no. 3003825 and after)

1шт.

44

D21953

TUBE - R.H. front control valve port to front bucket cylinder manifold tube (Used on tractor serial no. 3003825 and after)

1шт.

45

35208

HOSE - R.H. control valve ports to bucket cylinder manifold tubes (1/2" I.D. x 7/8" O.D. x 28") Used before tractor serial no. 3003825 (See D21955)

2шт.

D21955

HOSE - R.H. control valve ports to bucket cylinder manifold tubes (1/2" I.D. x 7/8" O.D. x 28") Used on tractor serial no. 3003825 and after (See 35208)

2шт.

46

19269

TUBE - bucket cylinder manifold, upper

1шт.

47

19267

TUBE - bucket cylinder manifold, lower

1шт.

48

36592

TUBE - upper manifold, Serial Range: tube-hose

2шт.

49

NLS

NO LONGER SERVICED

HOSE - tube to rear bucket cylinder port (1/2" I.D. x 7/8" O.D. x 18-3/4")

2шт.

50

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

51

33888

ELBOW - special, 90 degrees (5/8" JIC male x 1/2" NPT male x 1/8" NPT female)

1шт.

52

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

53

36582

TUBE - lower manifold tube to front bucket cylinder port, rear section

2шт.

54

36547

HOSE

- lower manifold tube to front bucket cylinder port, center section (1/2" I.D. x 7/8" O.D. x19")

2шт.

55

36519

SCREW

TUBE - lower manifold tube to front bucket cylinder port, front section (Used before tractor serial no. 3003825) See 36594

2шт.

36594

FIXING PLATE

TUBE - lower manifold tube to front bucket cylinder port, front section (Used on tractor serial no. 3003825 and after) See 36519

2шт.

56

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

57

32978

PLATE ASSY.

PLATE - clamp

8шт.

58

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2"

4шт.

59

92-5

LOCK WASHER,5/16"

4шт.

60

31665

COLLAR CLAMP

PLATE - clamp

4шт.

61

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2"

2шт.

62

92-5

LOCK WASHER,5/16"

2шт.

63

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.
