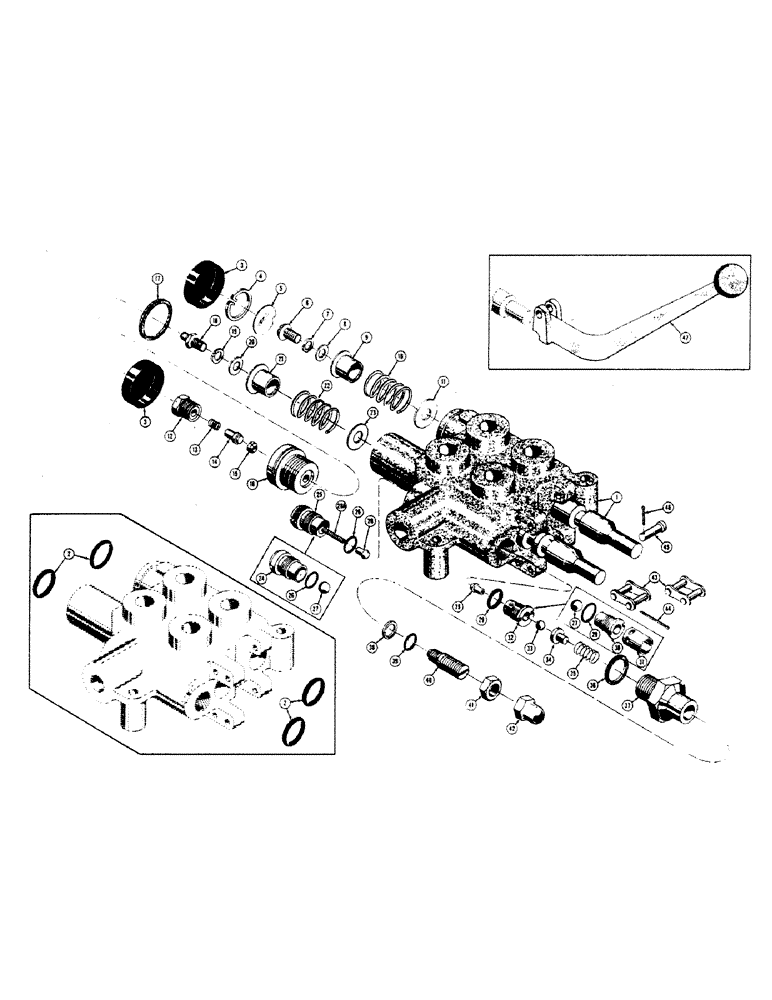

Запчасти Case 310 (110) - D24387 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D24387

SPOOL

VALVE - control, hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

36642

SEAL

- "O"ring, spool

4шт.

3

36645

CAP

- rubber, valve spool

2шт.

4

36633

LID

SNAP RING - stop disc

1шт.

5

663023R1

CAP

- stop, spool

1шт.

6

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - centering spring

1шт.

7

36628

LOCK WASHER

- lock

1шт.

8

36644

X

WASHER - flat (Use 36628)

1шт.

9

CAS36630

COLLAR

- stop

1шт.

10

36632

SPRING

- centering

1шт.

11

36650

WASHER

- float detent spring

1шт.

12

36656

CLIP

CAP - float detent spring

1шт.

13

36658

ROD

SPRING - float detent

1шт.

14

NLS

NO LONGER SERVICED

HOLDER - finger, float detent

1шт.

15

NLS

NO LONGER SERVICED

- float detent

3шт.

16

NLS

NO LONGER SERVICED

- float detent

1шт.

17

36666

WASHER

- float detent cap

1шт.

18

D25845

ADAPTER - float detent

1шт.

19

36662

GEAR

WASHER - lock, float spool

1шт.

20

36661

SHAFT

WASHER - float spool

1шт.

21

36652

COLLAR

- float spool

1шт.

22

D32602

VALVE SPRING

- centering, float spool

1шт.

23

36650

WASHER

- stop, centering spring

1шт.

24

D23929

PLUG

- relief valve (Used with check ball) See D28574

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check ball or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts, however, separate component parts are not interchangeable.

1шт.

25

D28574

PLUG

- relief valve (Used with poppet) See D23929

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check ball or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts, however, separate component parts are not interchangeable.

1шт.

26

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O"ring, relief valve plug ( replaced D23932 )

1шт.

27

D23930

BALL

- check, relief valve (5/8" dia.) See D28576

2шт.

28

D28576

VALVE POPPET

POPPET - relief valve (See D23930)

2шт.

28a

D28840

SPRING

- check poppet, rear

1шт.

29

D23928

O-RING

SEAL - "O"ring, relief valve seat

1шт.

30

D24394

SEAT - relief valve (Used with check ball) See D28838

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check ball or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts, however, separate component parts are not interchangeable.

1шт.

31

D24392

COLLAR - seat jam relief valve (Used with check ball) See D28838 not req. no longer furnished

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check ball or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts, however, separate component parts are not interchangeable.

1шт.

32

D28838

SEAT - relief valve (Used with poppet) See D24394 and D24392

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check ball or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts, however, separate component parts are not interchangeable.

1шт.

33

O7210AB

X

BALL - relief valve (1/2" dia.) Use 211-13

1шт.

211-13

BALL,1/2" Dia

- relief valve 1/2" Dia

1шт.

34

CAS34120

BUSHING

SPACER - relief valve spring

1шт.

35

36659

SPRING

- relief valve

1шт.

36

34115

GASKET

- relief valve body

1шт.

37

34113

BODY

- relief valve

1шт.

38

36660

WASHER

- relief valve spring

1шт.

39

VT2983

X

SEAL - "O"ring, adjusting screw

1шт.

40

34110

ADJUSTMENT SCREW

- adjusting, relief valve

1шт.

41

34111

X

NUT - jam, relief valve adjusting screw

1шт.

42

34109

CAP - dust, relief valve

1шт.

43

36640

DRAG LINK

LINK -, Serial Range: lever-valve

2шт.

44

132-13

PIN

- cotter, lever link (1/16" x 1-1/2")

2шт.

45

36627

SEAT

PIN - lever, control valve

2шт.

46

36625

X

PIN - cotter, lever pin (5/64" x 1/2")

2шт.

47

D20089

LEVER - control, valve

2шт.

D28840

SPRING

POPPET rear check

1шт.
